Cadillac SRX Engine Camshaft Position Sensor Guide (2004-2010)
Understanding why your SRX is stalling or has a check engine light and how to choose the right replacement sensor.
- Your SRX has four camshaft position sensors; identify the correct failed sensor using an OBD-II code.
- Be aware that timing chain issues on the 3.6L V6 can mimic sensor failure; codes like P0008 or P0017 warrant a closer look.
- Stick with high-quality aftermarket brands like ACDelco, Delphi, Bosch, or NTK for this critical sensor to ensure reliability.
- A failing sensor can cause serious issues like stalling or a no-start condition, so it should be replaced promptly.
Understanding Camshaft Position Sensor Failure in Your SRX
A failing camshaft position sensor in your 2004-2010 Cadillac SRX can cause a range of problems, from simply turning on the check engine light to preventing the engine from starting at all. These sensors operate in a high-heat environment and can fail over time due to electronic wear and tear. It's a common repair for any vehicle as it ages.
A Word of Caution on Timing Chains
The 3.6L V6 engine (RPO code LY7) used in this generation of SRX is known for premature timing chain wear. A stretched timing chain can cause the same diagnostic trouble codes (like P0008, P0016, P0017) as a faulty camshaft sensor. If your SRX has higher mileage and is showing these codes, the root cause may be the timing chains, not the sensor itself. Replacing the sensor will not fix a timing chain issue. 🎬 Watch this walkthrough of a full timing chain replacement procedure. It's wise to have this possibility investigated by a professional if you are not simply dealing with a standard sensor failure code like P0341.
🎬 See why these codes might not actually be a bad sensor.How Many Sensors Does My SRX Have?
The number of sensors depends on your engine. The V-shaped engines in the SRX have two cylinder heads ("banks") and four camshafts (two intake, two exhaust).
- 3.6L V6 (LY7): This engine has four camshaft position sensors. There is one intake and one exhaust sensor for each bank (Bank 1 and Bank 2).
- 4.6L V8 (Northstar LH2): This engine also has four camshaft position sensors, one for each of the four camshafts.
It is crucial to identify which sensor has failed. Your OBD-II scan tool will provide a code that specifies the location, such as "Camshaft Position Sensor 'A' Circuit Bank 1" (P0341), which points to the intake sensor on Bank 1. Bank 1 is the side with cylinder #1, which is the passenger side on the SRX.

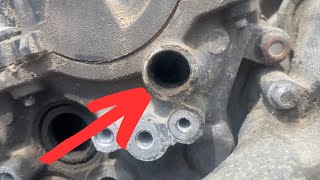

🎬 Watch: Locate and replace all four sensors on your 3.6L engine.Choosing the Right Aftermarket Sensor
When it comes to critical engine sensors, quality matters. While an OEM sensor from a Cadillac dealer is an option, high-quality aftermarket brands offer reliable performance, often at a better price. Here's a breakdown of brand tiers.
Tier 1: OEM or Equivalent Quality
These brands are often the original equipment manufacturer for General Motors or are known for producing parts that meet or exceed OEM specifications. For a critical sensor like this, choosing from this tier is highly recommended.
- ACDelco: As GM's own parts brand, ACDelco is the closest you can get to the original part. There are two lines: "GM Genuine" is the exact same part sold at the dealer, while "Gold (Professional)" is their high-quality aftermarket line. Both are excellent choices.
- Delphi: Delphi was once part of GM and has a long history of being the original supplier for many GM electronic components. Their sensors are widely considered to be OEM-quality and are a trusted alternative to ACDelco.
- Bosch: A major global OEM supplier, Bosch makes high-quality sensors known for reliability and performance.
- NGK/NTK: While famous for spark plugs, NGK's sensor line (NTK) has a strong reputation for quality and is another top-tier choice.
Tier 2: Reputable Aftermarket Brands
These brands are well-established in the aftermarket and offer a good balance of price and quality. They are a solid choice for a daily driver.
- Standard Ignition (SMP): A long-standing company that produces a wide range of quality automotive electronics.
- Dorman: Known for making direct replacement parts, often with design improvements over the original.
- Hitachi: An OEM supplier for many Japanese brands, Hitachi also produces quality sensors for the aftermarket.
- Walker Products: A company specializing in fuel delivery and engine management components.
Tier 3: Economy Brands
This tier includes lesser-known or private-label brands like Global Parts, Skyward, and True Tech. While the low price is tempting, the quality can be inconsistent for sensitive electronics. Using an economy sensor might lead to premature failure, incorrect readings, or a repeat repair job. It's generally recommended to spend a little more for a sensor from Tier 1 or Tier 2 to avoid future headaches.
| Tier | Brands | General Assessment |
|---|---|---|
| Tier 1 (OEM/Equivalent) | ACDelco, Delphi, Bosch, NGK (NTK) | Highest quality and reliability. Recommended for best performance and longevity. |
| Tier 2 (Reputable Aftermarket) | Standard Ignition, Dorman, Hitachi, Walker Products | Good quality and value. A reliable choice for most repairs. |
| Tier 3 (Economy) | Global Parts, Skyward, True Tech, Motorad, Holstein | Lowest cost. Quality can be inconsistent; use with caution for critical sensors. |
Frequently Asked Questions (FAQ)
Can I replace just the one failed sensor?
Yes. You only need to replace the specific sensor that has failed and triggered the trouble code. The other sensors can be left alone unless they also fail. However, if one sensor has failed due to age, the others may not be far behind. Some owners choose to replace them in pairs (e.g., both intake sensors) or all four at once for peace of mind, especially if the labor is difficult.
What is the difference between an intake and exhaust camshaft sensor?
They monitor the intake and exhaust camshafts, respectively. On the 3.6L V6, the intake sensors are designated 'A' (e.g., P0341 for Bank 1 Intake) and the exhaust sensors are 'B' (e.g., P0342 for Bank 1 Exhaust). While the sensors themselves may be physically identical, their location and the camshaft they monitor are different. Always order the sensor for the specific location indicated by your diagnostic code.
Is a "relearn" procedure needed after replacement?
For a camshaft position sensor replacement, a specific relearn procedure is not typically required. After installing the new sensor and clearing the diagnostic trouble codes with a scan tool, the ECM should recognize the new sensor's signal upon starting the engine. Some sources suggest it's good practice to disconnect the battery for 15-30 minutes to reset the system, but simply clearing the codes is usually sufficient.
Can a bad oil level or old oil cause sensor codes?
Yes. The Variable Valve Timing (VVT) system in your SRX is hydraulically operated by engine oil. If the oil level is low or the oil is old and sludgy, it can cause the VVT actuators (phasers) to respond slowly. This slow response can create a mismatch between the camshaft and crankshaft signals, triggering a correlation code that might be mistaken for a bad sensor. Always ensure your oil is clean and at the correct level before diagnosing sensor faults.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12588948 12577245 12684186 12615371
The 2004-2010 Cadillac SRX uses four 3-wire Hall-effect camshaft position sensors. The specific sensors for intake and exhaust positions may differ in part number but are often physically similar. Always verify the part number for the specific location (Bank 1/2, Intake/Exhaust) before ordering.
