GMC W5500HD Forward (2004-2009) Disc Brake Caliper Replacement Guide
Solving common brake pulling and uneven wear issues on your W5500HD Forward truck.
- The most common failure is seized slide pins, causing severe inner brake pad wear. Check your pads first.
- To prevent future issues, choose an aftermarket caliper with a protective anti-corrosion coating.
- Always replace calipers in pairs (both fronts or both rears) to maintain safe, balanced braking.
- It is highly recommended to replace the flexible brake hose at the same time as the caliper.
Is Your W5500HD Pulling or Eating Brake Pads?
The GMC W5500HD Forward, a rebadged Isuzu NPR-HD, is a workhorse. But when it comes to brakes, it has a common and frustrating problem: seized caliper slide pins. This issue, more than caliper failure itself, is often the root cause of brake problems on these trucks. When the pins seize due to rust and old grease, the caliper can't move freely. This leads to the inboard brake pad wearing down to the metal while the outboard pad looks nearly new. If you're experiencing this, a new or remanufactured caliper assembly is the most effective solution.
Symptoms of a Bad Brake Caliper
- Truck Pulls to One Side: When you hit the brakes, the truck may sharply pull to the left or right. This happens because the seized caliper isn't applying pressure, forcing the opposite brake to do all the work.
- Uneven Brake Pad Wear: This is the most telling sign. A visual inspection showing the inner pad is gone while the outer pad has plenty of life points directly to a seized caliper or slide pins.
- Burning Smell: A caliper that is stuck in the 'on' position will drag the brake pad against the rotor, creating intense heat and a distinct burning odor after driving.
- Spongy or Soft Brake Pedal: If the caliper piston seal fails and leaks brake fluid, air can get into the system. This results in a pedal that feels soft and goes closer to the floor.
- Visible Fluid Leaks: Puddles or wetness around the inside of the wheel are a critical sign of a leaking caliper or brake hose.
Choosing the Right Aftermarket Caliper
For the 2004-2009 W5500HD, you have several good aftermarket options. The key decision is between standard parts and those with features that prevent the common failure points.
| Brand Tier | Description | Available Brands |
|---|---|---|

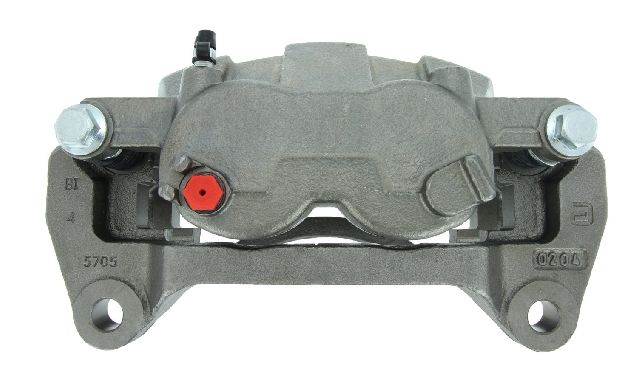

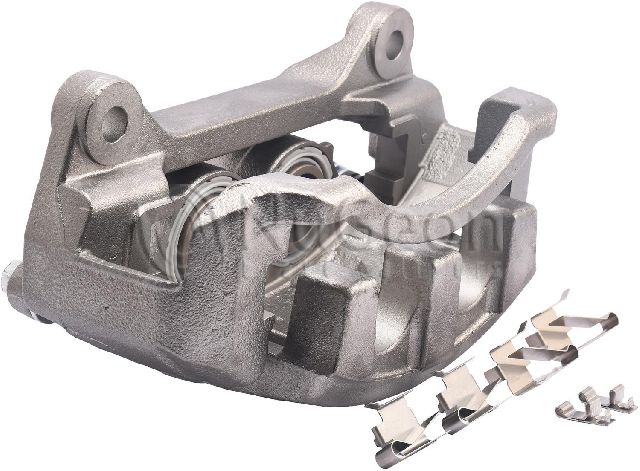

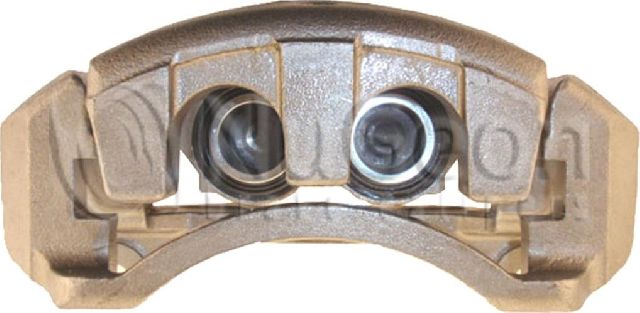

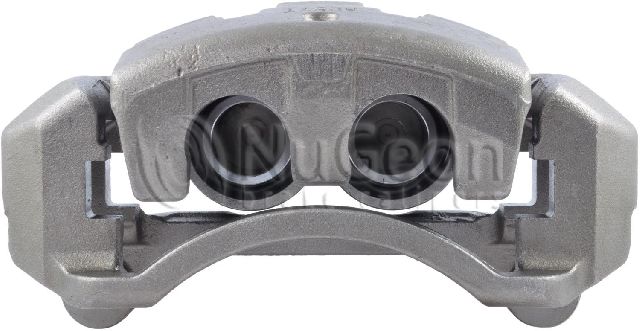

| Good: Standard Remanufactured | These are original equipment (OE) caliper cores that have been rebuilt with new seals and boots. They are a cost-effective choice. However, they may not have special coatings, making them susceptible to rust in harsh climates. | BBB Industries, Cardone, Centric |
| Better: Coated Calipers | These can be new or remanufactured calipers that come with a protective coating (often zinc or a durable paint). This coating is highly recommended as it resists rust and corrosion, which is the primary cause of seized slide pins. | Cardone (Ultra Series), Dynamic Friction |

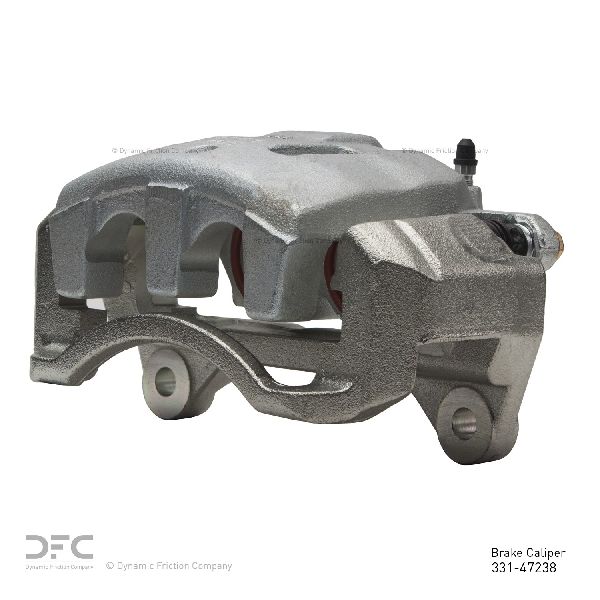

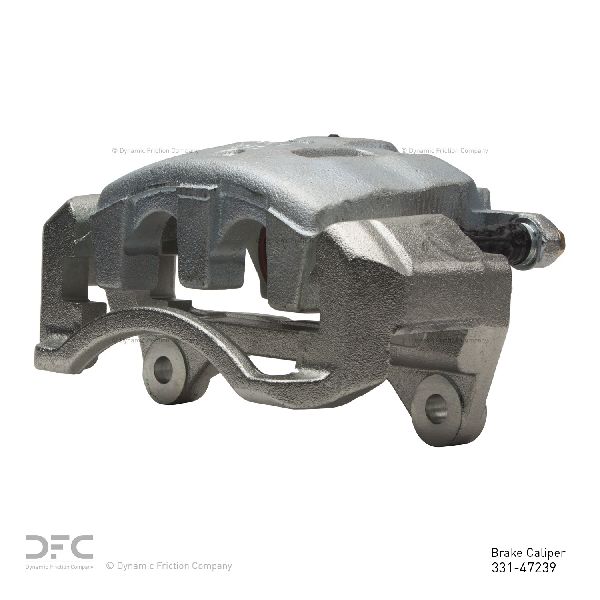

| Best: New Aftermarket | New calipers are made from all-new materials with no remanufactured components. They offer the highest level of confidence and often come with protective coatings. They also don't require a core charge, simplifying the purchase. | Dynamic Friction |
Frequently Asked Questions (FAQ)
Should I replace brake calipers in pairs?
Yes, absolutely. Always replace calipers in pairs (both front or both rear). This ensures even braking performance and prevents the truck from pulling to one side. Replacing only one can create a dangerous braking imbalance.
What's the difference between a new and remanufactured caliper?
A new caliper is manufactured from 100% new materials. A remanufactured caliper starts with a used original equipment (OE) core, which is cleaned, inspected, and rebuilt with new seals, boots, and other wear components to meet or exceed OE specifications. Both are viable options, but coated calipers offer the best longevity.
Can I just replace the seized slide pins?
While you can buy slide pin kits, if the pins are seized badly enough to cause braking problems, there's a high chance the caliper bracket bores where the pins sit are also corroded or damaged. Trying to free a truly stuck pin can be very difficult. Replacing the entire caliper assembly (caliper, bracket, and pins) is the most reliable and often easier repair.
Do I need to replace the brake hose with the caliper?
It is highly recommended. An old brake hose can collapse internally, acting like a one-way valve that traps fluid and keeps the caliper from releasing, mimicking a seized caliper. Replacing the hose at the same time is a smart, preventative measure that ensures your new caliper works correctly.
Technical Specifications
The GMC W5500HD Forward uses a hydraulic disc brake system. Calipers are typically twin-piston floating designs. Key components to verify are piston diameter and whether the caliper includes the mounting bracket and hardware.
