2004-2006 BMW 545i A/C System Valve Core and Cap Replacement
If your 545i's air conditioning is slowly losing its chill, the fix might be these small but critical service port valves.
- A slow loss of A/C cooling is the primary symptom of a failing valve core.
- This is not a simple DIY job because it requires professional equipment to evacuate and recharge the refrigerant legally and correctly.
- Always replace the service port caps with new ones, as they provide a critical secondary seal.
- For this specific part, aftermarket brands like Four Seasons or Global Parts are a cost-effective and reliable choice.
Is Your 545i's A/C Blowing Warm? Check the Simplest Thing First.
Before assuming the worst, like a failed compressor or evaporator, a common and inexpensive failure point is the A/C service port valves. Over time, the rubber seals on these tiny valves can degrade, causing a slow but steady leak of refrigerant. The result is a gradual decline in cooling performance until your A/C only blows ambient air. This guide covers the symptoms and replacement considerations for the A/C valve cores and caps on your 2004-2006 BMW 545i.
Symptoms of a Leaking A/C Valve Core
A failing valve core is a leak, so the symptoms are directly related to low refrigerant levels. Here’s what to look for:
- Gradually Weaker Cooling: The most common sign is A/C that gets progressively less cold over a period of weeks or months.
- A/C Works Intermittently: The system may cool for a short time before blowing warm as the low pressure causes the compressor to cycle off.
- Oily Residue: Check inside the plastic service port caps. Any oily film indicates that refrigerant and lubricating PAG oil are escaping past the valve.
- Hissing Sound: You may hear a faint hiss of escaping gas when you remove the service port cap.
Known Issues & Recalls for the 2004-2006 BMW 545i
While there are several recalls for the E60 545i, none are related to the A/C valve cores or service ports. Broader A/C issues on this platform are more commonly related to the evaporator core or compressor, which are significantly more expensive repairs. Because of this, verifying a leak at the service port with a UV dye test is a smart first step before replacing more costly components.

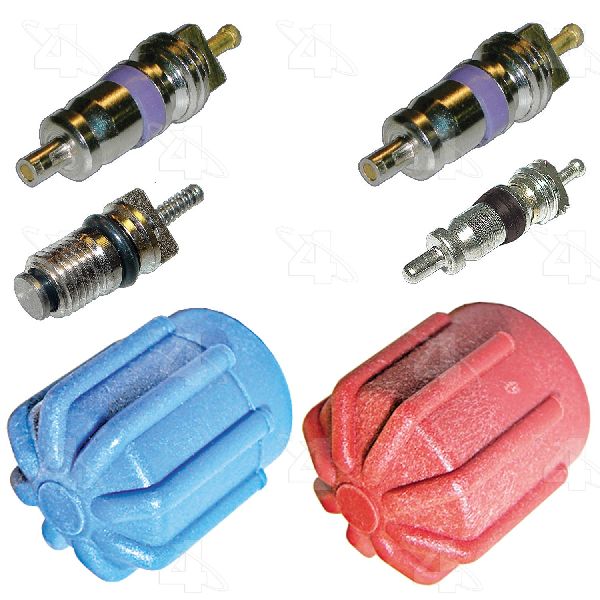

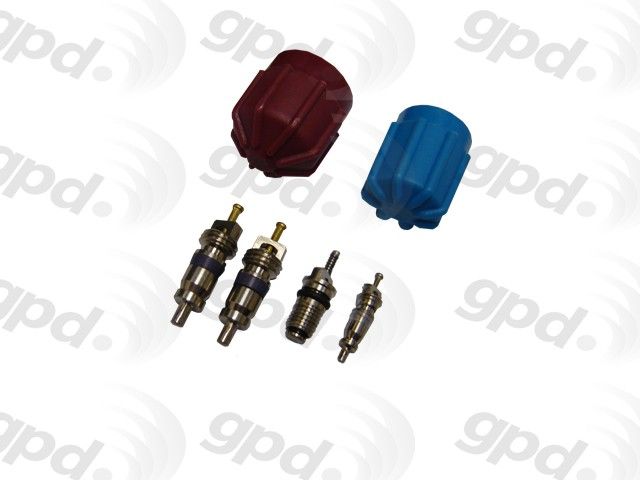

Choosing the Right Aftermarket Part: Four Seasons vs. Global Parts
For a simple component like a valve core and cap kit, the brand is less critical than the installation process. Both Four Seasons and Global Parts (GPD) are established aftermarket manufacturers.
- Quality: For basic mechanical parts like these, both brands offer a perfectly adequate, cost-effective alternative to expensive OEM parts. Forum discussions show mixed reviews for their more complex components like compressors, but for valve kits, either brand is a reliable choice.
- OEM vs. Aftermarket: There is no significant performance or quality difference between an OEM and a quality aftermarket valve core for this application. The savings from choosing an aftermarket kit are substantial, making it the logical choice for this repair.
Pro Tip: Always Replace Caps with Cores
Never reuse old service port caps. The small rubber seal inside the cap hardens over time and loses its ability to seal effectively. New kits include new caps for a reason—they are your first line of defense against dirt and your last line of defense against a leak.
Cost to Replace A/C Valve Cores on a BMW 545i
The main cost of this job is not the part itself, but the labor and equipment required to handle the refrigerant.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket A/C Valve Core & Cap Kit | $14 - $29 |
| Shop Labor (A/C Evacuation & Recharge) | $150 - $250 |
| Total Estimated Cost | $164 - $279 |
Costs are estimates and can vary based on your location and the specific repair shop.
Frequently Asked Questions (FAQ)
Can I replace the A/C valve cores myself?
While unscrewing the old valve and installing a new one is simple, it is illegal and harmful to the environment to release refrigerant into the atmosphere. Proper replacement requires a professional A/C service machine to recover the old refrigerant, pull a deep vacuum to remove moisture, and then recharge the system to the exact specification. Failure to pull a vacuum will lead to poor cooling and potential damage to other A/C components.
What is a Schrader valve?
A Schrader valve is a type of pneumatic valve used on almost all vehicle tires and A/C systems. It has a spring-loaded pin in the center that opens to allow air or refrigerant to flow when depressed. For your 545i's A/C, these valves are located on the low-side and high-side lines.
Do I need a special tool to replace the valve cores?
Yes, a specific A/C valve core removal tool is required. It is designed to grip the small valve body for removal and installation. These tools are inexpensive and often included in more comprehensive A/C service kits.
My A/C is blowing warm, but a shop said there are no leaks. What else could it be?
On the E60 platform, other common issues include a faulty heater control valve that is stuck open and mixing hot coolant air with the cold A/C air, a failing compressor, or a clogged expansion valve. A slow leak from a Schrader valve can also be difficult to detect without a sensitive electronic leak detector or a thorough UV dye test.
Technical Specifications
OEM Part Numbers: 64538387437 64538387438 64536922944
Kit includes high and low side Schrader-type valve cores and corresponding sealing caps.
