Chevrolet Cheyenne A/C Evaporator Core Replacement Guide (2003-2015)
Your A/C isn't blowing cold? This guide covers the common causes and replacement costs for your Cheyenne's evaporator core.
- Evaporator replacement is a very labor-intensive job requiring full dashboard removal; labor costs will far exceed the part cost.
- Symptoms include weak/warm A/C, musty smells, and hissing from the dash.
- For 2014-2015 models, check for a leaking A/C line near the compressor before assuming the evaporator has failed.
- Due to the high labor cost, using a high-quality aftermarket brand or OEM part is strongly recommended to avoid repeat failure.
Is Your Cheyenne's A/C Evaporator Failing?
A failing A/C evaporator core is a major repair, but the signs are usually clear. Because it's buried in the dashboard, the symptoms often appear inside the cab.
- Warm or Weak Airflow: This is the most common sign. Even with the A/C on max, the air from the vents isn't cold. This happens when the core is leaking refrigerant or is clogged with debris, preventing heat exchange.
- Musty or Foul Odor: A persistent damp, musty smell from the vents, especially at startup, points to mold and mildew growing on the evaporator core. This is due to moisture not draining properly. GM issued a Technical Service Bulletin (TSB) for this issue, suggesting a software update to keep the fan running after shutoff (called 'Afterblow') to dry the core.
- Hissing from the Dashboard: A distinct hissing sound that occurs when the A/C is on can be the sound of refrigerant gas escaping from a crack in the core.
- Compressor Won't Turn On: If the evaporator has a large leak, the A/C system will lose its refrigerant pressure. A safety switch will then prevent the compressor from engaging to avoid damage.
Check This First! (2014-2015 Models)
For 2014-2015 trucks, GM issued a TSB (PIT5331) for a common leak in the A/C line between the compressor and the condenser. This leak can spray refrigerant oil onto other parts, making it look like another component has failed. Always have a mechanic rule out this simpler, cheaper fix before condemning the evaporator core.
Choosing the Right Aftermarket Evaporator
Replacing the evaporator core is one of the most labor-intensive jobs on your truck. The dashboard must be removed to access it. Because the labor cost is so high, the quality of the replacement part is critical. You do not want to do this job twice.
- OEM (Original Equipment Manufacturer): This is the part your truck was built with. It's the most expensive option but offers the highest assurance of fit and quality. For a repair this difficult, many professional mechanics recommend OEM to avoid a comeback.

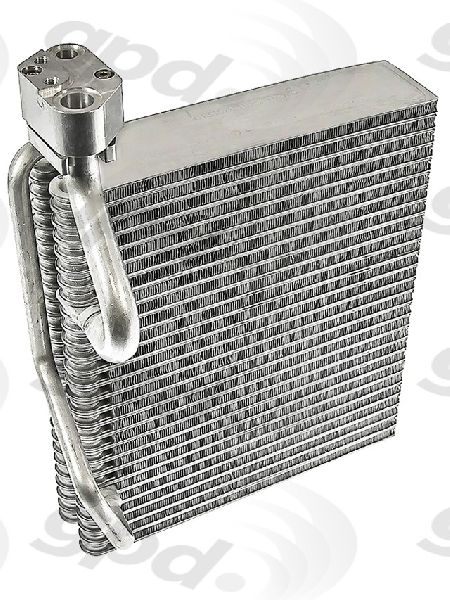

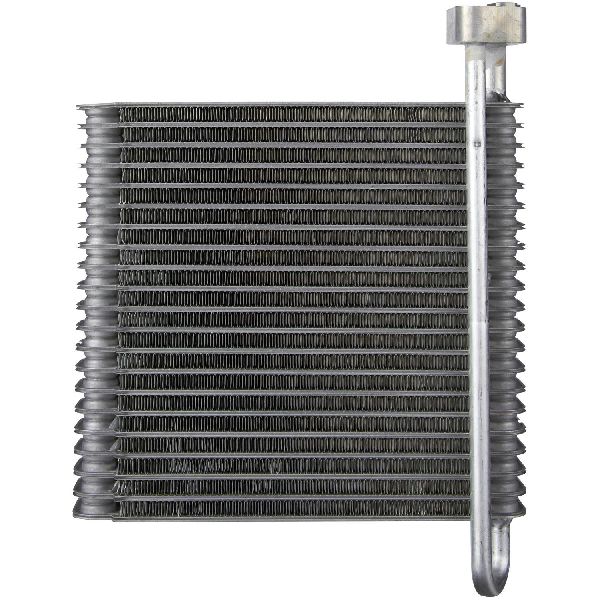

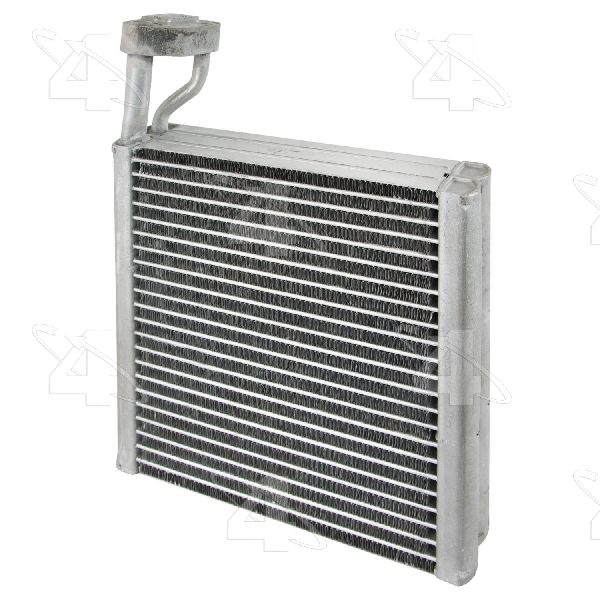

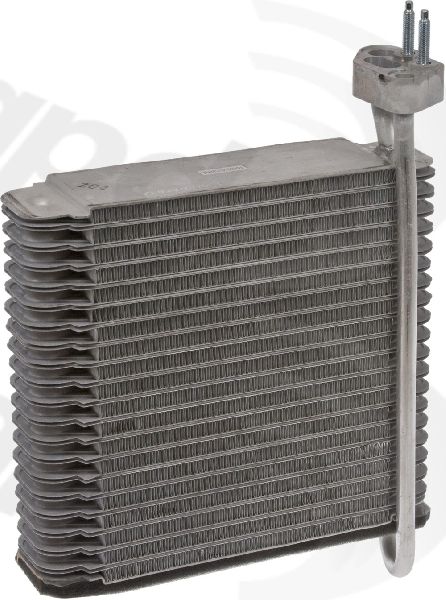

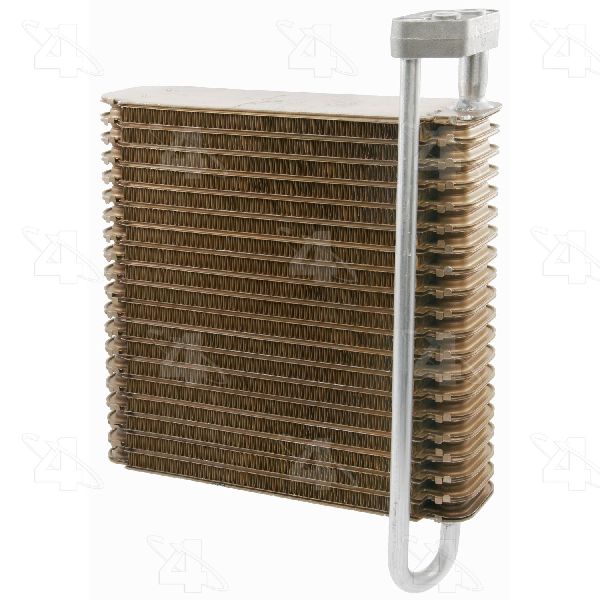

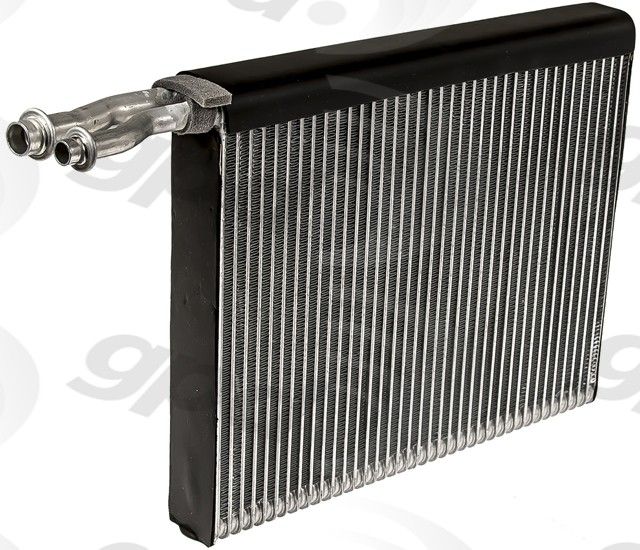

- Aftermarket Brands: Aftermarket parts offer significant cost savings. For the Cheyenne, common brands include Four Seasons, Spectra, and Global Parts (GPD). Forum discussions suggest Spectra and GPD are generally reliable choices for A/C components. Four Seasons has a more mixed reputation, with some users reporting premature failures on other A/C parts. Given the labor involved, choosing a top-tier aftermarket brand is a safer bet than the cheapest option available.
A Mechanic's Advice
The cost savings on a cheaper part are quickly lost if you have to pay for 15+ hours of labor a second time. When in doubt, spend a little more on a reputable brand or an OEM part for peace of mind.
Cost to Replace the A/C Evaporator Core
The part itself is not the expensive part of this job; the labor is. Expect a professional shop to quote a high price due to the time it takes to remove the dashboard.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Evaporator Core | $102 - $156 |
| New OEM Evaporator Core | $300 - $500 |
| Shop Labor & A/C Service | $1,500 - $2,500+ |
| Total Estimated Cost | $1,600 - $3,000+ |
Costs are estimates and will vary by location and shop labor rates. A/C service includes evacuating and recharging the refrigerant.
Frequently Asked Questions
Is this a DIY job?
For most home mechanics, this is not a recommended DIY project. It requires specialized tools to safely handle A/C refrigerant, extensive knowledge of your truck's interior, and 10-15+ hours of work. The entire dashboard assembly must be removed to get to the HVAC box where the core is located.
Are there any recalls for the evaporator core?
No, there are no specific safety recalls issued by the NHTSA for the A/C evaporator core on the 2003-2015 Chevrolet Cheyenne or Silverado.
Should I replace anything else at the same time?
Yes. Since the entire HVAC box is removed, it is highly recommended to also replace the heater core and the blower motor resistor. These parts are in the same housing and require the same amount of labor to access. Replacing them now can save you from having to do the entire job again in the near future.
What causes an evaporator core to fail?
The most common cause of failure is corrosion. Over time, moisture and debris can build up on the core's aluminum fins, leading to tiny holes that leak refrigerant. Internal clogs from contaminated A/C system oil can also cause failure.
Technical Specifications
OEM Part Numbers: 89018821 89019331 1563334 23377173
Located inside the HVAC housing behind the dashboard. Typically made of aluminum with a plate-fin or tube-and-fin design.
