A Ford Mustang Owner's Guide to Engine Cylinder Head Bolts (2003-2013)
Doing a head gasket job on your Mustang? Don't reuse the old bolts—here's what you need to know before you buy.
- Head bolts on 2003-2013 Mustangs are Torque-to-Yield (TTY) and MUST be replaced every time.
- Symptoms of failure are actually symptoms of a blown head gasket, like overheating and white exhaust smoke.
- This is a very difficult repair; saving a few dollars on cheap bolts is not worth the risk of having to redo the job.
- For the 4.0L V6, pay close attention to the cooling system, as overheating is the primary cause of head gasket failure.
When to Replace Your Mustang's Head Bolts
You don't replace head bolts on their own. They are replaced as part of a head gasket repair, which is a major engine service. If you're shopping for head bolts, you're likely dealing with a blown head gasket. The symptoms you're seeing—like overheating or white smoke—are caused by the failing gasket, not the bolts themselves. The bolts are replaced to ensure the new gasket seals correctly and the repair lasts.
Symptoms of a Failing Head Gasket
A blown head gasket can cause catastrophic engine damage if ignored. Look for these warning signs:
- Engine Overheating: Combustion gases leaking into the cooling system can cause the engine to overheat.
- White Smoke from Exhaust: This indicates coolant is burning in the combustion chambers.
- Milky Engine Oil: Coolant mixing with oil creates a milky, frothy sludge on your dipstick or oil cap.
- Coolant Loss: Losing coolant with no visible external leaks can mean it's leaking internally.
- Bubbling in Radiator: With the engine cool and cap off, bubbles may appear in the radiator or overflow tank, indicating exhaust gases in the coolant. 🎬 Watch: 3 quick tests to confirm a blown head gasket.
What are Torque-to-Yield (TTY) Bolts?
The head bolts in your 2003-2013 Mustang are Torque-to-Yield, or TTY. Unlike standard bolts that can be reused, TTY bolts are engineered to be tightened to a specific torque and then turned an additional angle (e.g., 90 degrees). This process stretches the bolt into its 'yield' zone, creating a very precise and strong clamping force. However, this stretching is permanent. Reusing a TTY bolt will result in incorrect clamping force, leading to a failed head gasket or a broken bolt. Always use new TTY bolts for a head gasket job.
Choosing the Right Aftermarket Head Bolts
For a repair this labor-intensive, the small cost of premium bolts is cheap insurance. You don't want to do this job twice. Here’s a breakdown of common aftermarket brands:
- Premium Tier (Fel-Pro): Fel-Pro is a highly respected brand in the gasket and engine sealing world. Their head bolt sets are made to meet or exceed OEM specifications and are a trusted choice for both professional mechanics and DIYers. For a critical job like this, Fel-Pro provides peace of mind.
- OEM-Quality Tier (Victor Reinz): Reinz is another well-regarded brand that often manufactures parts for automakers. Their quality is generally considered on par with original equipment, making them a solid and reliable choice for a stock engine repair.
- Value Tier (Apex, Skyward): These brands offer a more budget-friendly option. While they can be suitable for a car you're trying to get back on the road for a low cost, for a job with over $1,000 in labor, saving a few dollars on the bolts themselves is a risk. We recommend investing in a premium brand for long-term reliability.
Pro Tip: Head Bolts vs. Head Studs
You may hear about ARP head studs as an upgrade. Studs provide even better clamping force and are reusable, making them ideal for high-horsepower, boosted, or racing engines. However, they are significantly more expensive and require more work to install. For a stock or lightly modified Mustang, new TTY bolts from a quality brand like Fel-Pro are more than sufficient.
Vehicle-Specific Known Issues (2003-2013)

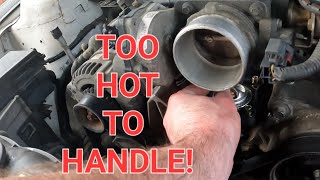

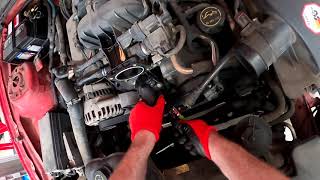

4.0L V6 (2005-2010): These engines are known to be sensitive to overheating. The combination of an iron block and aluminum heads means they expand at different rates, which can stress the head gasket. A common failure point is the plastic thermostat housing, which can crack, cause a coolant leak, and lead to overheating that blows the head gasket. 🎬 See how to fix the common V6 thermostat housing leak. If you have a V6, keeping the cooling system in perfect condition is your best defense.
4.6L V8 (2003-2010): The 2-valve and 3-valve 4.6L engines are generally very robust, and head gasket failures are uncommon. When problems do occur, they are often caused by another failure, like a bad water pump leading to overheating. Sometimes, a coolant leak from a cracked plastic intake manifold can be misdiagnosed as a head gasket leak.
🎬 Watch this walkthrough of a 4.6L V8 head and timing install.Cost of Replacing Ford Mustang Head Bolts
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Head Bolt Set | $40 - $155 |
| New OEM Head Bolt Set | $100 - $200+ |
| Shop Labor (Head Gasket Job) | $1,100 - $2,000+ |
| Total Professional Repair | $1,600 - $2,800+ |
Frequently Asked Questions
Can I reuse my Mustang's head bolts to save money?
No. The 2003-2013 Mustang uses Torque-to-Yield (TTY) bolts that are designed to stretch permanently when installed. Reusing them will lead to improper clamping force and almost certain failure of the new head gasket. You must use new bolts.
Is replacing head bolts a DIY job?
For most people, no. This job requires tearing down the top half of the engine, special tools like a torque wrench and angle gauge, and a deep understanding of engine mechanics, including camshaft timing. It is considered a high-difficulty job best left to experienced mechanics.
What else should I replace with the head bolts?
Since you're already deep in the engine, it's wise to replace related parts. This always includes the head gaskets themselves. Other common replacements include the intake and exhaust manifold gaskets, valve cover gaskets, thermostat and gasket, and sometimes the water pump and timing components, especially on higher-mileage engines.
Was there a recall for Mustang head bolts or gaskets?
No, there have been no specific recalls issued by Ford or the NHTSA for engine cylinder head bolts or head gasket failures on the 2003-2013 Ford Mustang.
Helpful Videos
Technical Specifications
OEM Part Numbers: Varies by engine (4.0L V6, 4.6L V8, 5.0L V8) and model year.
Torque-to-Yield (TTY) design. One-time use only.
