Guide to the 2003-2010 Toyota Corolla Speed Sensor
Understand the symptoms of a failing speed sensor in your Corolla and how to choose the right replacement part.
- A bad speed sensor is a common cause for an illuminated Check Engine Light with code P0500, an inoperative speedometer, and poor shifting on automatic models.
- The sensor is located on the transmission housing and is accessible for DIY replacement by removing the air filter box, typically taking less than an hour.
- Corrosion on the electrical connector is a frequent cause of failure; always inspect the wiring and connector when replacing the sensor.
- While OEM is an option, a quality aftermarket sensor provides a reliable repair for a fraction of the dealer price for this specific part.
Is Your Corolla's Speedometer Acting Up?
A failing speed sensor in the 2003-2010 Toyota Corolla can cause a variety of confusing issues. You might notice your speedometer needle jumping around or not moving at all. The car may also have trouble shifting gears smoothly, or the transmission might feel like it's slipping or jerking. Additionally, a bad speed sensor can cause the cruise control to stop working and will almost always trigger the Check Engine Light.
🎬 Watch this guide on bad speed sensor symptoms and testing.Common Trouble Code: P0500

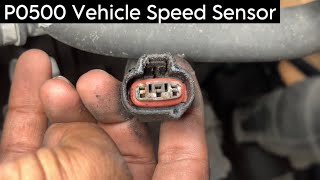

The most common diagnostic trouble code (DTC) associated with a failing vehicle speed sensor is P0500. This code specifically points to a malfunction in the VSS circuit. If you see this code, it's very likely the sensor, its wiring, or the connector is the source of the problem. 🎬 See how to inspect and repair speed sensor wire connections. Corroded or damaged wiring and connectors are a frequent cause of failure.
Choosing a New Aftermarket Speed Sensor
When replacing the speed sensor on your Corolla, you have a choice between an original equipment manufacturer (OEM) part from Toyota and an aftermarket part. OEM parts are identical to the one your car was built with and offer guaranteed fit and quality, but they come at a higher price. Aftermarket parts are made by other companies and are often much more affordable.
For a simple electronic part like a speed sensor, a quality aftermarket brand can be a reliable and cost-effective choice. The key is to stick with reputable brands. While some owners prefer the peace of mind that comes with an OEM part, many have successfully used aftermarket sensors without issues. The quality of aftermarket electronics has improved, but it's wise to avoid the cheapest, no-name options, which can fail prematurely.
Installation Pro-Tip
The vehicle speed sensor is located on the top or side of the transmission housing. On most 2003-2010 Corollas, you will need to remove the air filter box to get access to it. The sensor is typically held in place by a single 10mm or 12mm bolt. Before installing the new sensor, make sure to clean the mounting hole thoroughly to ensure a good seal with the new O-ring. Also, inspect the wiring connector for any corrosion or damage, as this is a common failure point.
Cost to Replace a Corolla Speed Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM | $95 - $255 |
| New Aftermarket (Replacement) | $21 - $45 |
| Shop Labor | $80 - $150 |
Frequently Asked Questions
Where is the speed sensor located on a 2003-2010 Corolla?
The vehicle speed sensor (VSS) is located on the transmission. You can usually find it on the back or top of the transmission housing, under the air filter box. It is held in by one bolt and has an electrical connector attached.
Can I drive my Corolla with a bad speed sensor?
You can, but it is not recommended for long. A failing sensor can cause erratic shifting in automatic transmissions 🎬 Learn how a faulty sensor causes gear shifting problems., an inaccurate speedometer, and will disable your ABS and cruise control systems, which are important safety features.
What is the difference between a Vehicle Speed Sensor and a Wheel Speed Sensor?
A Vehicle Speed Sensor (VSS) measures the speed from the transmission output. A Wheel Speed Sensor (also called an ABS sensor) is located at each wheel and measures individual wheel rotation speed, primarily for the ABS and traction control systems. While they work together, a P0500 code usually points to the VSS on the transmission.
Are there any recalls for the 2003-2010 Corolla speed sensor?
No, there are no specific recalls issued by the NHTSA for the vehicle speed sensor on the 2003-2010 Toyota Corolla. The major recalls for this generation concerned accelerator pedals and airbags.
Helpful Videos
Technical Specifications
OEM Part Numbers: 83181-12040 89413-12040 83181-12070
Typically a 3-pin sensor with a plastic gear that meshes with the transmission's differential. Held in place by one bolt.
