A Guide to Replacing Direct Ignition Coils on Your 2003-2009 Mazda 6
Everything you need to know before buying and replacing a failing ignition coil on your first-generation Mazda 6.
- For 3.0L V6 models, the three rear ignition coils are very difficult to access, requiring removal of the intake manifold.
- Always replace spark plugs when replacing coils to prevent premature failure of the new parts.
- Stick with high-quality aftermarket brands like Denso or NGK, as they are often the OEM suppliers for Mazda.
- Driving with a misfire can quickly damage your catalytic converter, turning a small repair into a very expensive one.
Is Your Mazda 6 Ignition Coil Failing?
When an ignition coil starts to go bad, the signs are usually obvious. Your car's computer will often detect the problem and turn on the Check Engine Light. The most common issue is an engine misfire, which can feel like a stutter or hesitation while driving. Here are the main symptoms to watch for:
🎬 Watch: See a breakdown of common bad ignition coil symptoms.- Rough Idle: The engine shakes or vibrates more than usual when you're stopped.
- Loss of Power: Your car feels sluggish and doesn't accelerate as quickly as it should.
- Check Engine Light: You'll likely see diagnostic trouble codes like P0300 (random misfire) or P0301-P0306 (misfire in a specific cylinder).
- Worse Fuel Economy: You'll notice you're filling up your gas tank more often because unburned fuel is being wasted.
- Stalling: In more severe cases, the engine may cut out completely when idling or coming to a stop.
- Backfiring: You might hear a loud pop from the exhaust, sometimes with black smoke, as unburned fuel ignites in the exhaust system.
Known Issues and Vehicle Differences
No recalls or technical service bulletins (TSBs) were issued specifically for ignition coils on the 2003-2009 Mazda 6. However, owner forums indicate that coil failure is a relatively common problem, especially on the 3.0L V6 model. One potential cause of repeated coil failure is oil leaking from the valve cover gasket into the spark plug tubes, so it's wise to check for oil when you pull the old coil out.
The biggest factor in this repair is which engine your Mazda 6 has:
- 2.3L 4-Cylinder Engine: This is a great DIY job for beginners. The four coils are located directly on top of the engine under a plastic cover. Each is held by a single 8mm bolt and an electrical connector. The whole job can be done in under an hour with basic tools. 🎬 Watch: This step-by-step guide shows how to replace the coils.
- 3.0L V6 Engine: This is a more complex job. The front three coils are easy to access, just like on the 4-cylinder. However, the rear three coils are buried under the intake manifold.
V6 Engine Warning
Replacing the rear coils on the V6 requires removing the entire upper intake manifold. This is a much bigger job. Because of the extra labor, if one of the rear coils fails, it is highly recommended to replace all three rear coils and all six spark plugs at the same time. This will save you from having to do the difficult part of the job again in the near future.
Choosing the Right Aftermarket Coil
When it comes to ignition coils, quality matters, especially on the V6 where replacement is difficult. Cheaper coils have a higher failure rate, and you don't want to replace a rear coil twice. Here’s how the available brands generally stack up based on owner feedback and OEM status:
- Tier 1 (OEM-Equivalent): Denso and NGK are the top choices. They are often the original equipment manufacturers for Mazda, so their quality is trusted. Beck Arnley is also a strong choice, known for often sourcing parts from the original manufacturers.
- Tier 2 (Reputable Aftermarket): Hella and Facet are established brands that produce reliable ignition components. They offer a good balance of quality and price.
- Tier 3 (Economy): Brands like Accel, Karlyn STI, and Prenco fall into the economy category. While they are the most affordable, their long-term reliability can be inconsistent. They are a reasonable choice for an easily accessible front coil on a V6 or any coil on a 4-cylinder if budget is the main concern.
Pro Tip: Replace Spark Plugs at the Same Time
Worn-out spark plugs put extra strain on the ignition coils, which can cause them to fail prematurely. Since you already have the coils out, it's the perfect time to install a fresh set of spark plugs. This is especially important on the V6 models.
🎬 Watch: Learn the proper way to install fresh spark plugs.Cost of Replacing Mazda 6 Ignition Coils
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Ignition Coil (1) | $21.69 - $96.81 |
| New OEM Ignition Coil (1) | $98 - $155 |
| Shop Labor (4-Cylinder) | $50 - $100 |
| Shop Labor (V6, All Coils) | $200 - $400+ |
Frequently Asked Questions (FAQ)
Do I need to replace all ignition coils at once?
While you can replace only the one that failed, it's often recommended to replace them as a set, especially if your car has over 80,000 miles. Coils are exposed to the same heat and wear, so if one has failed, the others may not be far behind. For V6 models, it's almost mandatory to replace the full rear set of three if you have the intake manifold off.
Can I drive with a bad ignition coil?
You can for a short distance, but it's not a good idea. Driving with a constant misfire can allow unburned fuel to enter your exhaust system, which can overheat and destroy your expensive catalytic converter, leading to a much more costly repair.
Is this a difficult job to do myself?
For the 2.3L 4-cylinder engine, it's very easy (Difficulty: 1/5). For the 3.0L V6, replacing the front three coils is also easy, but replacing the rear three is an advanced job (Difficulty: 4/5) because the intake manifold must be removed.
What tools do I need?
For a 4-cylinder or the front coils on a V6, you typically only need a ratchet with an 8mm socket and maybe a small flathead screwdriver to help with the electrical connectors. For the rear coils on a V6, you will need a more extensive set of tools to remove the intake manifold.
Helpful Videos
Technical Specifications

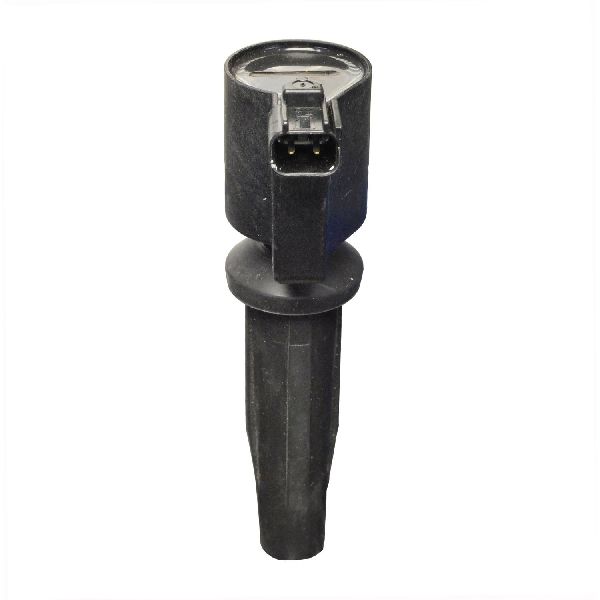

OEM Part Numbers: L3G2-18-100B-9U L3G2-18-100A AJ51-18-100A 1L8Z12029AB
This vehicle uses a Coil-on-Plug (COP) direct ignition system. Each coil is secured by a single 8mm bolt. The 2.3L 4-cylinder engine uses four identical coils. The 3.0L V6 engine uses six identical coils, three in the front bank and three in the rear bank.
