A Guide to Ignition Coils for the 2003-2009 Chevrolet W3500 Tiltmaster
If your truck is running rough, an ignition coil could be the problem. Here’s what you need to know to fix it right.
- This guide applies to the 6.0L V8 gas engine in the 2003-2009 W3500 Tiltmaster.
- Before buying, you must visually check if your truck uses the 'square' or 'round' style ignition coils as they are not interchangeable.
- For best results and to avoid repeat failures, choose a reputable aftermarket brand like NGK or Standard Ignition.
- Consider replacing all eight coils and the spark plugs at the same time for long-term engine health and performance.
Is Your Ignition Coil Failing?
A bad ignition coil on your W3500 Tiltmaster will make itself known. The engine's computer monitors for misfires and will trigger the Check Engine Light. You will likely experience one or more of these symptoms:
- Rough Idling: The engine will shake or vibrate, especially when stopped.
- Engine Misfires: You'll feel the engine hesitating, sputtering, or stumbling during acceleration.
- Loss of Power: With one less cylinder contributing, your truck will feel sluggish and weak.
- Poor Fuel Economy: The engine wastes fuel when a cylinder isn't firing correctly.
- Check Engine Light: A code like P0300 (random misfire) or P0301-P0308 (specific cylinder misfire) will be stored.
Important: Match Your Coil Style

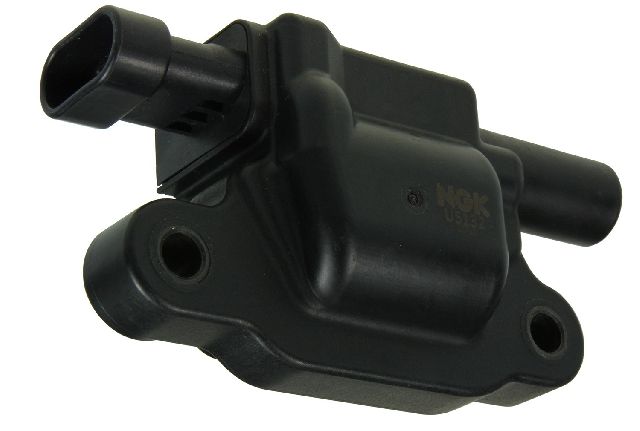

GM used two different physical styles of ignition coils on its V8 engines during this period. One is a "square" body style (like GM part 12611424) and the other is a "round" or "Delphi" style (like GM part 12563293). They are not interchangeable. Before ordering, you must visually inspect one of your truck's existing coils to ensure you buy the correct shape.
Choosing the Right Aftermarket Ignition Coil
When it comes to ignition parts, quality matters. While it can be tempting to buy the cheapest option, low-quality coils are known to fail prematurely, leaving you with the same problem again. Here’s a breakdown of the brands available, grouped by quality tiers based on general market reputation.
Tier 1: Premium Quality
These brands are known for making parts that meet or exceed OEM standards. They are the most reliable choice for a long-lasting repair.
- NGK: Widely regarded as a top-tier manufacturer for ignition components, often supplying the original parts for many automakers.
- Standard Ignition (SMP): A long-standing, reputable brand known for quality aftermarket parts.
Tier 2: Standard Quality
These brands offer a good balance of price and performance. They are a solid choice for daily-driver repairs.
- Spectra: A common aftermarket brand. Quality can sometimes be inconsistent compared to premium brands, but they often come with a good warranty.
- Holstein: An established aftermarket supplier offering a wide range of parts.
Tier 3: Economy
These brands focus on providing the lowest possible price. They can be a solution for a tight budget, but may not offer the same durability as higher-priced options.
- Global Parts: Typically a budget-focused brand.
- True Tech: Another brand geared towards the economy market.
Pro Tip: Replace in Sets
If one coil has failed due to age and heat, the others are likely not far behind. For the best long-term reliability, it is recommended to replace all eight ignition coils at the same time. Since you're already working there, it's also the perfect time to replace your spark plugs.
Cost of Replacing Ignition Coils
| Part Type | Price Per Coil | Price for Set of 8 |
|---|---|---|
| New Aftermarket | $24 - $55 | $180 - $445 |
| New OEM (ACDelco) | $60 - $120 | $480 - $960 |
| Shop Labor | $120 - $250 | |
Frequently Asked Questions
Should I replace just the one bad coil or all eight?
You can replace just the single failed coil to fix the immediate problem. However, coils on the same engine experience the same conditions. When one fails from age, the others may soon follow. Replacing all eight at once is a preventative measure that can save you from future breakdowns and repeated repair jobs.
Is this a difficult job to do myself?
For most people with basic hand tools, this is a very manageable DIY job. The coils are located on top of the engine on the valve covers and are typically held in by a single bolt. The main challenge can be accessing the rearmost coils, but it does not require special tools.
Do I need to put grease on the new coil?
Yes, it is highly recommended to apply a small amount of dielectric grease to the inside of the new ignition coil boot before installing it. This grease prevents the boot from getting stuck to the spark plug, seals out moisture, and ensures a good electrical connection.
Were there any recalls for this part?
No, there have been no recalls for the ignition coils on the 2003-2009 Chevrolet W3500 Tiltmaster. A recall for an ignition coil *fuse holder* was issued for much newer 2023-2024 models, but it does not apply to this year range.
Technical Specifications
OEM Part Numbers: 12563293 10457730 D585 UF262 12611424 12570616 D513A UF413
This vehicle uses a Coil-on-Plug (COP) ignition system with 8 individual coils. Coils come in two distinct physical shapes: a 'square' style and a 'round' style. The correct style must be matched to the vehicle's original parts.
