Cadillac CTS Starter Motor: A Guide for the 2003-2008 Models
Is your 2003-2008 Cadillac CTS clicking, cranking slowly, or refusing to start? This guide covers common starter problems and solutions.
- A single click with no crank is a classic symptom of a bad starter in a CTS.
- Don't immediately assume it's the battery; a bad starter is a common failure point on these models.
- Replacement is a manageable DIY job, but may require removing the catalytic converter for easier access.
- Verify the correct starter for your specific engine (2.8L, 3.2L, or 3.6L) as they are not all the same.
Is Your CTS Starter Failing?
A starter motor failure is a common issue for many vehicles, including the first-generation Cadillac CTS. Often, the symptoms are confused with a dead battery. You might hear a single, loud click when you turn the key, or the engine might crank over much slower than usual. Sometimes, the car won't start on the first try but will fire up on the second or third attempt. If you hear a grinding or whirring noise after the engine has started, it could be a sign the starter gear isn't disengaging correctly.
🎬 Watch: A visual guide to common failing starter symptoms.Don't Ignore the Signs
An intermittent starting problem will eventually become a no-start problem, often at the worst possible time. If you experience any of the symptoms of a failing starter, it's best to address the issue before you are left stranded.
Choosing the Right Aftermarket Starter
When replacing the starter on your 2003-2008 CTS, you have several options. While the original part is made by ACDelco, many aftermarket brands offer a reliable and affordable alternative.
- Premium Aftermarket (e.g., ACDelco Gold, Powermaster, MSD): These brands often meet or exceed original equipment (OE) specifications. ACDelco is the original manufacturer for GM, so their aftermarket parts are a dependable choice. Brands like Powermaster and MSD are known for high-torque and performance applications, which can be a good upgrade if you want extra cranking power, though they often come at a higher price.
- Standard Aftermarket (e.g., MPA, Proform, Store Brands): These parts offer a balance of quality and value. They are designed as direct replacements and are a cost-effective solution for daily driving. Many are remanufactured to high standards, with common wear components like brushes and bearings replaced.
- OEM (ACDelco GM Original Equipment): This is the exact same part your vehicle was built with. It guarantees a perfect fit and function but is typically the most expensive option.
A Note on Remanufactured vs. New
Don't be afraid of remanufactured starters. Reputable brands remanufacture starter cores to OE specifications, replacing all common failure points with new parts. This is an environmentally friendly and cost-effective option that often comes with a good warranty.
Known Issues, Recalls, and Bulletins
While there are no direct recalls for the starter motor on the 2003-2008 CTS, there are related items to be aware of:
- Ignition Switch Recall (NHTSA 14V394000): A widespread recall was issued because the weight of a heavy key ring could cause the ignition switch to move out of the 'run' position while driving. This could cause the engine to shut off. While not a starter issue, it is a critical safety recall related to the ignition system.
- Starter Rattle TSB (21-NA-279): A Technical Service Bulletin was issued for a rattle noise that can develop when the starter's pinion gear makes contact with the flywheel, especially during low-speed turns. The recommended fix is to inspect and replace the starter if necessary.
Cost of Replacing a Cadillac CTS Starter
The cost can vary based on your location and the brand you choose. Labor costs for this job are estimated to be between $172 and $252.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $60 - $550 |
| Shop Labor | $172 - $252 |
| Total Estimated Cost | $232 - $802 |
Frequently Asked Questions
Is it hard to replace the starter on a 2003-2008 CTS?

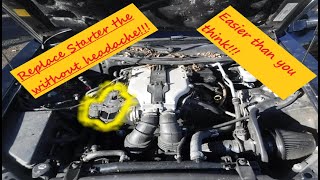

The difficulty can vary. The starter is on the driver's side and held by two main bolts. Some mechanics find it possible to complete the job without removing other parts, though it is a tight fit. Others strongly recommend removing the catalytic converter to create more space, which makes accessing the starter much easier but adds steps to the process. 🎬 Watch this walkthrough for the fastest way to replace the starter. It is considered a feasible DIY job for someone with moderate mechanical experience and the right tools.
How do I know if it's the starter or the battery?
A dead battery is the most common reason a car won't start. If the lights on your dashboard are dim or don't come on at all, it's likely the battery. If the lights are bright but you hear a single, sharp click when you turn the key, the starter is a more likely culprit. If a jump-start doesn't get the engine to crank at all, the starter is almost certainly the problem.

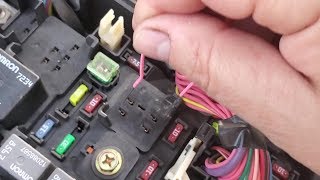

🎬 See how to manually test the starter while it's installed.What does a failing CTS starter sound like?
The most common sound is a single, loud 'click' when you turn the key, with no engine cranking. You might also hear a slow, struggling crank, or a grinding/whirring noise if the starter gear is damaged or not engaging properly.
Are there different starters for different CTS engines?
Yes, the starter can vary depending on the engine in your CTS (2.8L, 3.2L, or 3.6L V6). The number of teeth on the starter gear can be different. It is critical to ensure you are buying the correct part for your specific year and engine model. Always verify the fitment before purchasing.
Helpful Videos

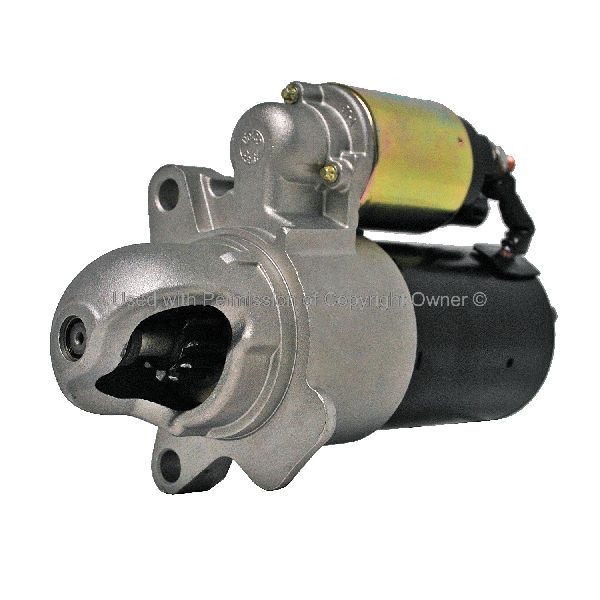

Technical Specifications
OEM Part Numbers: 12595605 12608653 12610857 12588493 12597349
Varies by engine. Common configurations include 9, 11, or 12 teeth on the pinion gear. Power ratings are typically 1.4kW, 1.5kW, or 1.7kW. Rotation is clockwise.
