Ford Ranger (2003-2007) Electric Fuel Pump Replacement Guide
Is your Ranger cranking but not starting, or losing power? Your fuel pump might be the culprit.
- Symptoms include hard starting, engine sputtering, loss of power, and a whining noise from the tank.
- Replacing the pump by lifting the truck bed is easier than dropping the fuel tank for most DIYers.
- Aftermarket pumps are a good value, but OEM Motorcraft pumps are recommended for maximum reliability.
- Before replacing the pump, check the inertia cutoff switch in the passenger footwell.
Is Your Ford Ranger Fuel Pump Failing?
A bad fuel pump can leave you stranded. The symptoms often start small and get worse. You might notice your truck takes a few extra seconds to start. It might sputter or hesitate when you accelerate. In serious cases, the engine will crank but won't start at all, or it may stall while you're driving. A whining noise from the gas tank area is another classic sign of a pump working too hard.
Safety First: The Inertia Switch
Before you condemn your fuel pump, check the fuel pump inertia switch. It's a safety device designed to shut off the fuel pump in a crash. On most 2003-2007 Rangers, it's located in the passenger-side footwell area. If this switch has been accidentally tripped, it will cut power to the pump. Pressing the button to reset it might solve your problem for free.
Replacing the Fuel Pump: Lift the Bed or Drop the Tank?
You have two options for accessing the fuel pump on top of the tank: lift the truck bed or drop the fuel tank. For the Ford Ranger, most mechanics and experienced DIY-ers agree that lifting the bed is the easier method. This avoids dealing with fuel lines and straps underneath the truck, especially if the tank is full. Lifting the bed involves removing six Torx bolts, the fuel filler neck screws, and the taillight wiring harness. With a friend to help lift, you get clear access to the top of the tank.
Choosing the Right Aftermarket Fuel Pump
When it comes to fuel pumps, you often get what you pay for. While a Ford Motorcraft pump is considered the highest quality and most reliable option, it is also the most expensive. Aftermarket pumps offer a more affordable solution, but quality can vary. Here’s an honest look at the brands available:

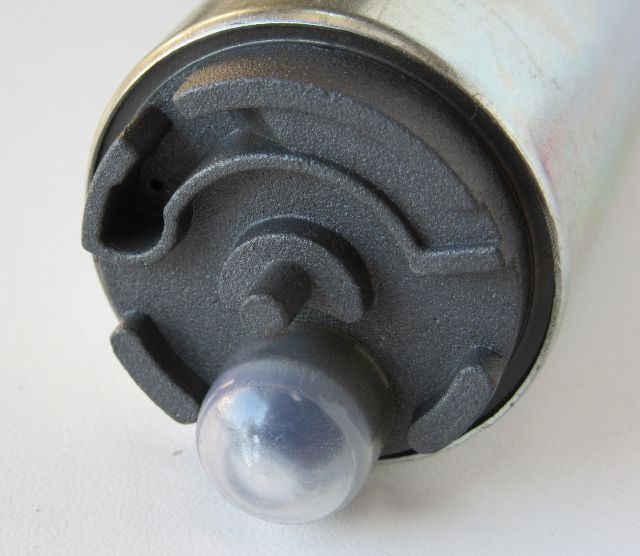

- Value Tier (AutoBest): AutoBest is known for providing a good balance of value and performance. Reviews often praise the straightforward installation and reliable function for the price, making it a solid choice for budget-conscious repairs.

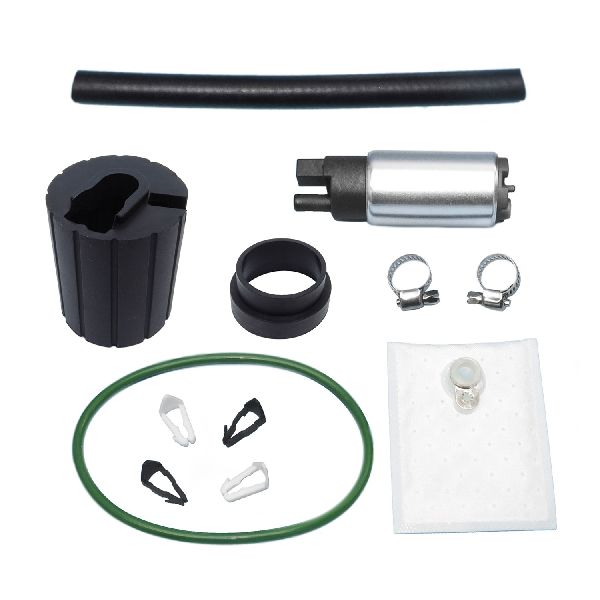

- Standard Tier (GMB, US Motor Works): These brands are established names in the aftermarket. GMB is often seen as a reliable mid-tier option. US Motor Works receives generally positive feedback for performance and uses quality materials like corrosion-resistant sensors. However, some users have reported receiving incorrect small parts like strainers, so be sure to check the contents of the box.
- Premium Tier (OEM Motorcraft): While not an aftermarket brand, it's the benchmark for reliability. Forum users frequently advise that if you want to do the job only once and not worry about it again, spending the extra money on a Motorcraft pump is worth it.
Pro Tip: Don't Run Your Tank Empty
The gasoline in your tank helps cool the electric fuel pump motor. Frequently running your truck on a very low tank can cause the pump to overheat, leading to a shorter lifespan. Try to keep at least a quarter tank of fuel whenever possible.
Cost to Replace a 2003-2007 Ford Ranger Fuel Pump
The cost depends on who does the work and the parts you choose. Doing it yourself saves significant money on labor.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Fuel Pump Assembly | $49 - $104 |
| New OEM (Motorcraft) Fuel Pump Assembly | $250 - $310+ |
| Shop Labor | $225 - $400 |
| Total Professional Replacement (Aftermarket) | $275 - $505 |
| Total Professional Replacement (OEM) | $475 - $710+ |
Frequently Asked Questions
Do I need any special tools to replace the fuel pump?
Yes, you will likely need a set of fuel line disconnect tools to safely remove the fuel lines from the pump assembly. You will also need a T-55 Torx bit to remove the bed bolts if you choose that method.
Should I replace anything else with the fuel pump?
Yes. It is highly recommended to replace the fuel filter at the same time you replace the fuel pump. A clogged old filter can strain a new pump and cause it to fail prematurely.
My truck has a hard time starting, but it runs fine. Is it the fuel pump?
It's a strong possibility. A weak fuel pump may struggle to build enough pressure to start the engine quickly, but may provide just enough to keep it running. This is a classic early symptom of fuel pump failure.
Are there any recalls on the 2003-2007 Ranger fuel pump?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any fuel pump-related recalls or Technical Service Bulletins (TSBs) for the 2003-2007 Ford Ranger model years.
How do I know which pump to buy for my truck?
Ford used different fuel tanks and pumps depending on the truck's wheelbase (e.g., 111.5", 111.6", 126"). It is critical to verify your truck's wheelbase, which is listed on the sticker in the driver's side door jamb, to ensure you order the correct part.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5L5Z-9H307-AA 5L5Z-9H307-BA 5L5Z-9H307-CA 6L5Z-9H307-A 6L5Z-9H307-B 6L5Z-9H307-C
Required fuel pressure for the 2.3L, 3.0L, and 4.0L engines is approximately 55-65 PSI. The correct pump assembly is dependent on the vehicle's wheelbase.
