Cadillac Escalade ESV 2003-2007 Universal Joint Replacement Guide
Feeling a vibration or hearing a clunk from your Escalade ESV? It might be time to inspect your U-joints.
- Common failure symptoms include clunking noises when shifting, vibrations at speed, and squeaking sounds.
- Driving with a bad U-joint is unsafe and can lead to complete driveshaft separation.
- For best results, choose premium aftermarket brands like Dana/Spicer or Moog, preferably with greaseable fittings for longer life.
- Professional installation is recommended as replacing U-joints requires special tools like a torch and a press.
Symptoms of a Failing U-Joint
A worn-out U-joint will give you clear warning signs. Ignoring them can lead to driveshaft failure, which is a serious and expensive problem. Listen and feel for these symptoms:
- Clunking Noise: A loud "clunk" or "bang" when you shift into Drive or Reverse is a classic sign of a bad U-joint. This is caused by excessive play in the worn joint.
- Vibration: You might feel a vibration throughout the vehicle that gets worse as you speed up. This often feels similar to an unbalanced tire, but it's coming from the driveline.
- Squeaking Sound: A rhythmic squeaking or chirping noise that increases with speed often points to a U-joint that has lost its grease and is running dry.
- Visible Rust: If you see rust-colored dust around the U-joint's bearing caps, it's a sign that moisture has gotten inside and the joint is failing.
Can I Drive with a Bad U-Joint?
It is not recommended. A failing U-joint can break apart completely, causing the driveshaft to separate from the vehicle. This can lead to a loss of control, significant damage to other underbody components, and leave you stranded.
Choosing the Right Aftermarket U-Joint
When replacing the U-joints on your 2003-2007 Escalade ESV, you have several good aftermarket options. The original factory joints are non-greaseable and are often replaced with improved aftermarket designs. Aftermarket parts can offer better value and features like grease fittings for longer life.
Brand Quality Tiers
Based on owner feedback and mechanic consensus, aftermarket U-joints for your Escalade can be grouped into tiers:
- Tier 1 (Premium Quality): Dana/Spicer and Moog. Spicer is often the original equipment manufacturer for many trucks and is widely considered the top choice for durability. Moog is also highly regarded, often engineering "problem-solver" parts that improve on the original design. Both brands often offer greaseable joints, which allow for periodic maintenance to flush out contaminants and extend the part's life.
- Tier 2 (OEM-Equivalent Quality): SKF and ACDelco Professional. SKF is a well-respected bearing manufacturer, and their U-joints are a solid choice. ACDelco Professional parts are General Motors' own aftermarket line, designed to offer good quality and fit, sometimes made by the same manufacturers as other top brands like Moog.
- Tier 3 (Economy): GMB and other store brands. These brands offer a more budget-friendly price point. While they can be a viable option for a quick repair, their long-term durability may not match the premium brands.
Greaseable vs. Non-Greaseable
Many aftermarket U-joints are "greaseable," meaning they have a zerk fitting that allows you to add new grease. This is an advantage over the factory-sealed units, as regular greasing can significantly prolong their life. Non-greaseable joints are often considered slightly stronger because the cross is solid, but they cannot be serviced. For most Escalade owners, a quality greaseable joint from a brand like Spicer or Moog is the best long-term investment.
Estimated Costs for U-Joint Replacement
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Part Only) | $20 - $85 |
| New OEM U-Joint (Part Only) | $50 - $165 |
| Shop Labor | $150 - $350 |
| Total Professional Replacement | $200 - $450 |
Frequently Asked Questions
How many U-joints does my 2003-2007 Escalade ESV have?
A typical rear-wheel drive (RWD) model has two U-joints on the rear driveshaft. An all-wheel drive (AWD) model will have these two, plus one or two more on the front driveshaft. It's best to inspect all of them, as it's common to replace them at the same time.

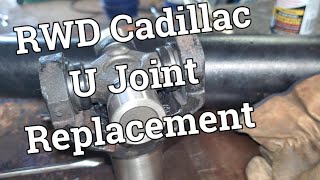

🎬 See how to replace U-joints on a rear-wheel drive Cadillac.Is replacing a U-joint a DIY job?

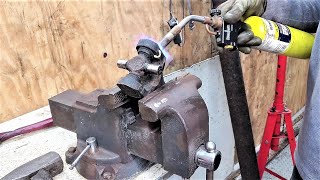

This is an intermediate to advanced DIY task. While removing the driveshaft is straightforward, pressing the old U-joint out of the yoke and pressing the new one in requires special tools like a ball joint press or a bench vise with large sockets. The original factory joints are held in with injected plastic, which must be melted out with a torch before removal. 🎬 Watch a step-by-step guide on replacing Escalade rear U-joints. If you don't have these tools or experience, professional installation is recommended to avoid damaging the driveshaft.
Are there any recalls for the 2003-2007 Escalade ESV U-joints?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls or technical service bulletins (TSBs) specifically for universal joints on the 2003-2007 Cadillac Escalade ESV. Recalls found were for different model years or other components.
Should I replace one or all of the U-joints at the same time?
It is highly recommended to replace all U-joints on a driveshaft at the same time. If one has failed due to age and wear, the others are likely not far behind. Replacing them all at once saves you from having to do the job again in the near future.
Helpful Videos
Technical Specifications
OEM Part Numbers: 23104840 89059111 12471502 12479126
The 2003-2007 Escalade ESV uses U-joints with outside clips on the rear driveshaft and inside clips on the front driveshaft for AWD models. It is critical to confirm the exact size and clip style for your specific vehicle's front or rear driveshaft before ordering.
