Honda Element Relay Guide: Diagnosing Failures from 2003-2006
Learn to identify and solve common relay problems in your Honda Element, from an A/C that won't cool to an engine that won't start.
- If your A/C suddenly stops blowing cold, the A/C relay is the most likely culprit and the first part you should check.
- A 'crank-no-start' condition, especially when the engine is warm, often points to a failing PGM-FI main relay.
- Many relays are identical; try swapping a suspect relay with a known good one (like the horn relay) to diagnose the problem for free.
- Replacing a relay is an extremely simple DIY task that requires no tools and can be done in minutes.
Understanding Relay Failures in Your Element
The Honda Element uses several identical relays for different systems. This is good news for troubleshooting. The most common relays to fail control the A/C compressor clutch, the PGM-FI (fuel pump), and the starter. When a relay fails, it's usually because the internal contacts have worn out or the internal solder joints have cracked from years of heat and vibration. This can cause the component it controls to stop working intermittently or altogether.
Common Symptoms of a Bad Relay
Because different relays control different parts, the symptoms will point you to the problem area.
- A/C Blowing Warm Air: This is the most common relay failure on the Element. The A/C compressor clutch relay fails, preventing the compressor from turning on. You'll hear the fans blow, but the air will never get cold.
- Engine Cranks but Won't Start: If the engine turns over but never fires up, the PGM-FI main relay (fuel pump relay) is a likely suspect. You may not hear the usual 2-second hum of the fuel pump when you turn the key to the 'ON' position. This problem can be worse when the vehicle is hot.

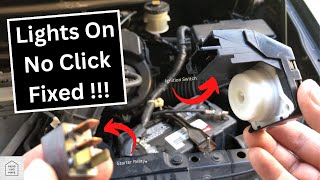

- Engine Won't Crank or Click: If you turn the key and get nothing but dashboard lights—no click, no crank—the starter cut relay could be the issue. All power seems normal, but the starter motor receives no signal to engage.
Pro Tip: The Relay Swap Test
Many relays in the Element's fuse boxes are identical, such as the A/C clutch relay and the horn relay. If your A/C isn't working but your horn is, you can swap their relays. If the A/C starts working and the horn stops, you've confirmed the relay is bad. This is a free and effective diagnostic trick.
Choosing the Right Aftermarket Relay
For a simple part like a relay, there is little difference in performance between an OEM and a quality aftermarket part. Brands like Standard Motor Products (SMP) or other direct-fit replacements offer a reliable and cost-effective solution. Since the original relays are known to fail over time, a new aftermarket relay is a smart replacement that can restore function without the high cost of a dealer part. Given that even new OEM-branded parts have been reported to fail, a reputable aftermarket part provides excellent value.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Relay | $10 - $25 |
| New OEM Relay | $40 - $70 |
| Shop Labor | $50 - $100 (if diagnosed) |
Frequently Asked Questions (FAQ)
Where are the relays located on my Honda Element?

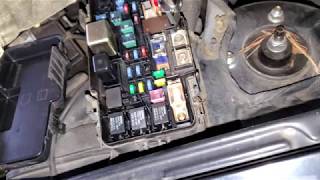

Your Element has two main fuse/relay boxes. One is in the engine compartment on the driver's side, and the other is under the dashboard, also on the driver's side. The A/C and PGM-FI relays are typically in the under-hood box, while the starter cut relay is often under the dash. The cover of the fuse box has a diagram showing the location of each relay.
Can I replace a relay myself?
Yes, this is one of the easiest repairs you can do. No tools are required. Simply locate the faulty relay, wiggle it gently, and pull it straight out of its socket. Push the new relay firmly into place. It only fits one way. Sometimes they can be difficult to pull out if they haven't been removed in a long time.
My A/C suddenly stopped working. Is it the relay?
It is very likely the relay. A sudden failure of the A/C to produce cold air, especially when the fan still works, points directly to the A/C compressor not engaging. The relay is the most common and cheapest part to fail in this circuit, so it should be the first thing you check.
Are there any recalls for Honda Element relays?
No, there are no specific recalls for the A/C, fuel pump, or starter relays on the 2003-2006 Honda Element. Most recalls for this vehicle concern the Takata airbags.
Helpful Videos
Technical Specifications
OEM Part Numbers: 39794-SDA-A03 39794-SDA-A05 39794-S04-003
Typically a 4-pin, 12V DC, 25 Amp micro ISO relay. Common brands used by Honda include Omron and Mitsuba.
