A Guide to Replacing Suspension Shocks on the 2002-2013 Cadillac Escalade EXT
Restore your Escalade's signature smooth ride by understanding its unique suspension and choosing the right aftermarket shocks.
- First, identify your suspension type by checking the RPO code (Z55 or Z95) in your glove box before ordering parts.
- For models with expensive electronic shocks (Z95 MagneRide), a conversion kit from a brand like Dorman is a reliable, cost-effective long-term solution.
- OEM shocks are very expensive; aftermarket brands like Monroe and KYB offer OE-quality ride comfort for much less money.
- Always replace shocks in pairs (both front or both rear) to ensure safe, balanced handling.
Is Your Escalade's Ride Not What It Used to Be?
A primary reason for the Cadillac Escalade EXT's luxury reputation is its smooth, controlled ride. However, as these trucks age, the advanced suspension systems wear out, leading to a significant decline in ride quality and handling. The most common issues involve leaking rear air shocks and failing front electronic struts, especially on the 2007-2013 models with Magnetic Ride Control (MagneRide). A "Service Suspension System" message on your dashboard is a clear sign that your shocks need attention.
Understanding Your Escalade's Suspension: Z55 vs. Z95
Before buying new shocks, you must identify which suspension your EXT has. This is the most common mistake owners make. Check the RPO (Regular Production Option) code sticker, usually located in the glove box.
- Z55 (Autoride): This is the standard real-time damping and air-leveling suspension found on most 2002-2013 models. It uses air shocks in the rear to automatically level the vehicle when towing or carrying heavy loads.
- Z95 (Magnetic Ride Control): Found on many 2007-2013 models, this is a more advanced system that uses magnetic fluid inside the shocks to change damping stiffness almost instantly. While providing an excellent ride, these shocks are significantly more expensive to replace.
OEM vs. Aftermarket: The Big Decision
Replacing failed electronic shocks (Z55 or Z95) with original equipment (OEM) parts from a dealer can be extremely expensive, with costs for parts and labor potentially reaching thousands of dollars. 🎬 See how much dealers charge versus DIY air suspension repair. Aftermarket parts offer two main paths: direct-fit electronic replacements that restore original function at a lower cost, or passive conversion kits. A conversion kit is a popular, cost-effective solution that replaces the complex electronic shocks with high-quality conventional shocks and springs. This eliminates the expensive, failure-prone electronic components and air system, but you will lose the automatic leveling and adaptive damping features.
Choosing the Right Aftermarket Shocks
With many brands available, picking the right one depends on your budget and performance goals.
Brand Tiers for Your Escalade EXT
- Premium Performance (Bilstein): Often considered an upgrade over stock, Bilstein shocks are known for providing excellent handling and control, though some drivers find them firmer than the original shocks. They are a great choice if you want improved stability, especially when towing.

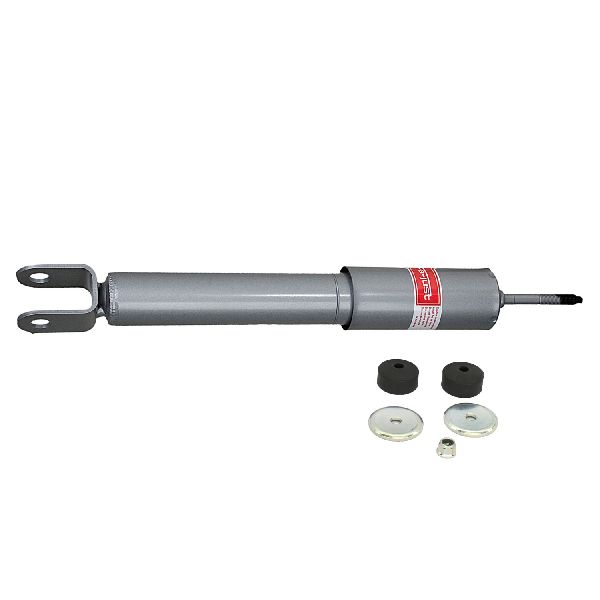

- OE-Style Replacement (Monroe, KYB): Monroe is a well-regarded brand that often manufactures the original shocks for GM. Choosing Monroe or KYB will provide a ride quality very similar to how your truck felt when it was new. They offer a good balance of comfort and reliability for daily driving.
- Conversion & Problem Solvers (Dorman): Dorman specializes in providing cost-effective solutions to common automotive problems. Their suspension conversion kits are a very popular way to bypass the expensive electronic systems for good. These kits include everything needed to switch to a durable, passive suspension.
- Budget-Friendly (FCS Struts, PRT, Westar): These brands offer the most affordable way to replace worn shocks. While they meet basic safety and performance standards, they may not provide the same level of ride refinement or longevity as the premium or OE-style brands.
Pro Tip: Replace in Pairs
Always replace your shocks in pairs (both front or both rear). Replacing just one worn shock can create an imbalance in handling and stability, leading to unpredictable driving characteristics and faster wear on the new part.
Known Issues, Recalls, and TSBs
The most common suspension complaints for the 2002-2013 Escalade EXT are related to the air suspension and electronic components. Owners frequently report leaking rear air shocks, a failing air compressor, and front MagneRide struts that leak fluid or lock up, causing a harsh ride. 🎬 Watch a step-by-step guide on replacing Z95 front struts. A "Service Suspension System" message is the typical indicator of these failures.
- Recalls: There was a recall for some 2011 models concerning a rear axle cross pin that was not properly heat-treated and could fracture (NHTSA ID: 10V668000). No recalls directly address the common shock absorber failures.
- Technical Service Bulletins (TSBs): GM has issued several TSBs related to the suspension. TSB #PIT-4954-C addresses the "Service Suspension System" message, pointing to issues like a loose compressor inlet hose or an inoperative compressor test. Another TSB, #PI0430B, notes that a poor electrical connection at the top of the shock absorber can trigger a fault message and advises checking the connector before replacing the shock.
| Part Type | Estimated Cost (Parts Only) |
|---|---|
| New OEM (Electronic) | $1100 - $1800+ |
| New Aftermarket (Electronic or Conversion) | $26.77 - $559.79 |
| Shop Labor | $191 - $280 |
Frequently Asked Questions (FAQ)
Will a suspension conversion kit trigger a warning light on my dash?
Most quality conversion kits, like those from Dorman, come with special electronic resistors or bypass modules. When installed correctly, these modules trick the vehicle's computer into thinking the electronic suspension is still active, preventing any warning lights or error messages.
Can I replace the electronic shocks with standard shocks myself?
Yes, replacing the shocks on an Escalade EXT is a task that a mechanically inclined person can do at home. The rear shocks are straightforward, held by two bolts. The front struts require more work, and you may need a spring compressor if you are not replacing the entire strut assembly. Always follow safety precautions and refer to a good repair guide.
🎬 Learn how to save hundreds by replacing MagneRide struts yourself.What are the symptoms of a failing air compressor?
If your air suspension compressor is failing, you may notice that the rear of the truck sags and doesn't raise when the engine is started. You might also hear the compressor running constantly as it struggles to build pressure, or it may not turn on at all. This is often caused by leaks in the air shocks or lines, which overworks the compressor.
What does it mean if my ride is suddenly very stiff or harsh?
A very stiff or harsh ride, especially in models with Magnetic Ride Control (Z95), often means the electronic shocks have failed and defaulted to their firmest setting. This can also be caused by a blown fuse or a bad electrical connection to the shocks.
Helpful Videos
Technical Specifications
Crucial specification is the suspension RPO code: Z55 (Autoride) or Z95 (Magnetic Ride Control). This code determines the type of shock absorber required. The code is found on a sticker inside the glove compartment.
