A/C Compressor Guide for the 2002-2010 Toyota Camry
Everything you need to know before replacing the A/C compressor on your Toyota Camry.
- For 2002-2006 models, always check the cheap 'MG CLT' relay first if your A/C light is blinking.
- Denso is the OEM brand and offers the best quality and fit for a long-lasting repair.
- Replacement requires flushing the system and replacing the receiver/drier and expansion valve to prevent immediate failure of the new part.
- 2007-2010 models use a different, clutchless compressor that requires professional diagnosis with gauges.
Is Your Camry's A/C Blowing Hot Air?
If the air conditioning in your 2002-2010 Toyota Camry isn't cold, a failing A/C compressor is a likely cause. This part works hard, especially during hot weather, and eventually wears out. When it fails, you'll notice symptoms ranging from strange noises to a complete lack of cold air. Understanding the specific issues for your Camry's model year is key to a successful repair.
Common Failure Symptoms
Watch for these signs of a bad A/C compressor:
- Warm Air: The most obvious symptom is air from the vents that never gets cold.
- Loud Noises: Grinding or rattling sounds from the engine bay when you turn the A/C on point to internal compressor failure. A squealing noise could mean the pulley bearing is bad.
- Leaking Fluid: You might see a leak of refrigerant oil from the compressor body itself.
- Blinking A/C Light (2002-2006 models): A flashing green A/C light is a very common issue on these Camrys. It often means the compressor's magnetic clutch is not engaging.
Pro Tip for 2002-2006 Camry Owners
If your A/C light is blinking, check the Magnetic Clutch Relay (labeled 'MG CLT') in the under-hood fuse box before replacing the entire compressor. This small, inexpensive relay fails often and causes the exact same symptom as a dead compressor. You can test it by swapping it with the HORN relay, which is identical. If your horn works but the A/C doesn't, and then swapping them makes the A/C work and the horn fail, you've found your problem.
🎬 Watch: How to fix a flashing A/C light for cheap.Generation Differences: Clutched vs. Variable Compressors
It's important to know which type of compressor your Camry uses:
- 2002-2006 Camry: These models use a traditional compressor with a magnetic clutch. You can see the outer plate of the pulley engage and start spinning when the A/C is turned on.

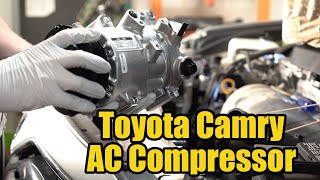

- 2007-2010 Camry: These models use a modern variable displacement compressor. This type does not have a visible clutch and its pulley spins constantly whenever the engine is running. Diagnosing this type requires pressure gauges and sometimes a professional scan tool to see if the system is commanding it to work. 🎬 Watch this step-by-step 2007-2011 Camry compressor replacement walkthrough.
Choosing the Right Aftermarket A/C Compressor
The original compressor on your Camry was made by Denso. When shopping for a replacement, you have several good options that balance quality and price.
Tier 1: OEM Quality
These brands provide the same quality and longevity as the original part from the dealer.
- Denso: As the original equipment manufacturer, a new Denso compressor is the safest bet for a perfect fit and long-term reliability. It's built to factory standards for quiet and durable performance.
- Valeo: A global OEM supplier known for high-quality, efficient compressors. They are an excellent alternative to Denso and are often used as original equipment by other major car brands.
Tier 2: Quality Aftermarket Value
These brands offer a reliable repair at a more budget-friendly price point.

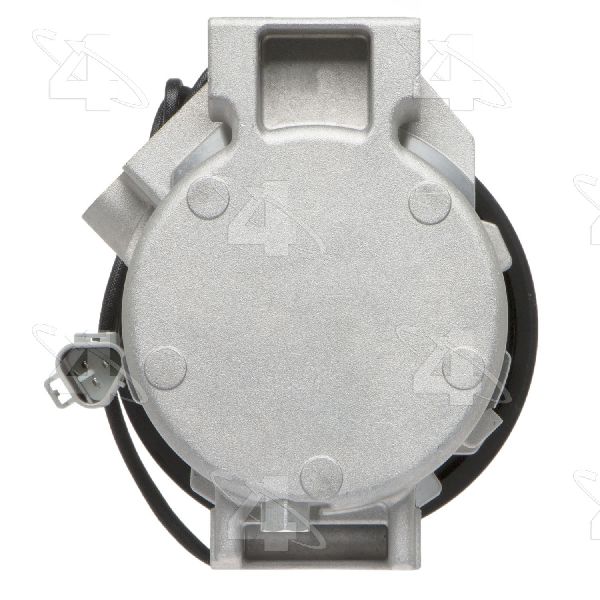

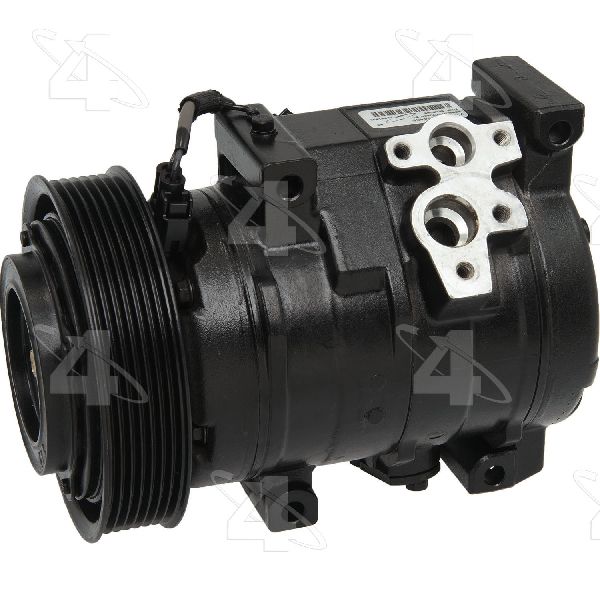

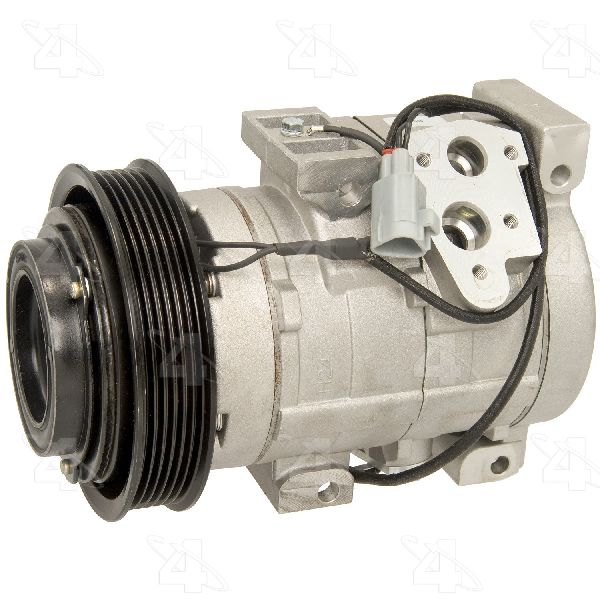

- Four Seasons: A widely available brand that offers both new and remanufactured options. They provide good value for the price, making them a popular choice.
- Nissens: A reputable European parts manufacturer that produces quality A/C components.

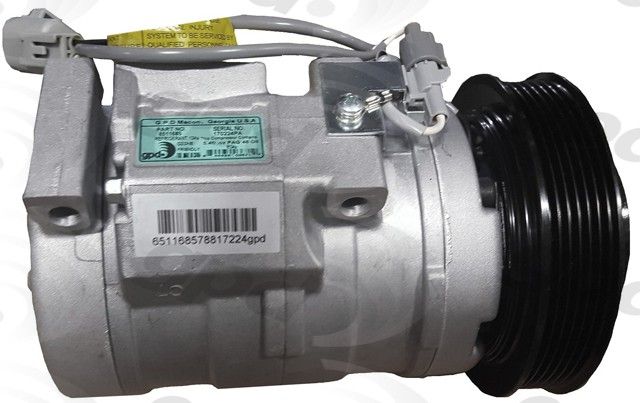

- Global Parts Distributors (GPD): Known for good fitment and offering complete kits, GPD is a solid value-oriented option.
Warning: A Compressor is Not a Standalone Repair!
Simply swapping the compressor will lead to another failure. When a compressor fails, it often sends tiny metal particles throughout the A/C system. To do the job right and ensure your new compressor lasts, you must also replace the A/C Receiver/Drier (a filter for the system) and the Expansion Valve. The entire system should also be professionally flushed to remove old oil and debris before installing the new parts. Most warranties for new compressors are void if these steps are not taken.
A/C Compressor Replacement Costs for 2002-2010 Toyota Camry
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Compressor | $244 - $600 |
| New OEM (Denso) Compressor | $350 - $921 |
| Shop Labor & System Recharge | $358 - $784 |
| Total Professional Replacement | $900 - $1650+ |
Cost estimates are approximate and can vary by location and the specific brands chosen.
Frequently Asked Questions (FAQ)
My 2003 Camry's A/C gets weak on long drives. Is it the compressor?
Not necessarily. There was a Technical Service Bulletin (TSB EL004-03) for 2002-2003 Camrys for an issue where the evaporator unit freezes over during long periods of use, blocking airflow. This makes it seem like the A/C is failing. The fix is a simple, inexpensive thermistor harness that prevents the unit from getting cold enough to freeze.
Can I just replace the A/C clutch?
On 2002-2006 models, the clutch and its bearing can sometimes be replaced separately without opening the refrigerant system. However, if the compressor is old or noisy, it's often better to replace the entire unit. 🎬 See how to replace the compressor clutch and bearing yourself. For 2007-2010 models with a variable compressor, there is no separate clutch to replace.
Is replacing an A/C compressor a good DIY job?
This is not recommended for beginners. The job requires special tools to safely recover refrigerant, pull a vacuum on the system, and recharge it with the precise amount of refrigerant and oil. Incorrect charging will damage the new compressor. For safety and to ensure the repair lasts, this job is best left to a qualified mechanic.
Do I need to add oil to my new compressor?
Most new compressors come pre-filled with some oil, but you must verify the amount and type with the manufacturer's instructions. It's critical to drain the shipping oil and add the correct vehicle-specific amount of PAG 46 oil before installation. The total system oil amount must be balanced, which is another reason professional installation is recommended.
Helpful Videos
Technical Specifications
Vehicle uses two different compressor types depending on the year. 2002-2006 models use a Denso 10S17C or similar clutched compressor. 2007-2010 models use a Denso 6SEU16C or similar variable displacement (clutchless) compressor. All systems use R134a refrigerant and PAG 46 oil.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
