A Guide to Spark Plugs for the 2002-2010 Saturn Vue
Understanding the right spark plugs for your Vue's specific engine is key to performance and reliability.
- You must identify your Vue's engine (2.2L, 2.4L, 3.0L, 3.5L, 3.6L) before buying plugs.
- The job is much harder on V6 models; the 3.0L and 3.6L V6s require removing the intake manifold to change the rear plugs.
- For best results and longevity, choose iridium or platinum plugs from OEM brands like ACDelco, NGK, or Denso.
- Always check the spark plug gap before installation, even if the box says they are pre-gapped.
Understanding Your Vue's Engine Is Step One
Before buying spark plugs, you must know which engine is in your Saturn Vue. Different engines were used across the 2002-2010 model years, and they require different spark plugs. Using the wrong plug can cause poor performance and even engine damage.

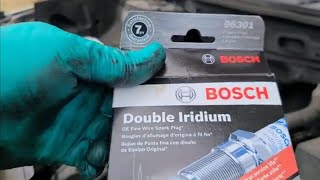

- 2.2L Ecotec I4 (2002-2007): A common GM four-cylinder engine. Spark plug replacement is straightforward. 🎬 Watch a step-by-step 2.2L Ecotec spark plug replacement guide.
- 2.4L Ecotec I4 (2008-2010): An updated four-cylinder, also with a simple spark plug job.
- 3.0L V6 (2002-2003): This engine is known for being difficult. Replacing the rear three spark plugs requires removing the upper intake manifold. 🎬 See what is involved when changing plugs on the 3.0L. Oil leaking into the spark plug tubes is also a common issue that should be addressed at the same time.
- 3.5L V6 (2004-2007): This is a Honda engine. While the rear plugs are tight to access, the intake manifold does not need to be removed, making it easier than the 3.0L V6.
- 3.5L & 3.6L V6 (2008-2010): These GM V6 engines, particularly the 3.6L, often require removing the intake manifold for access to the rear spark plugs.
Choosing the Right Aftermarket Spark Plug
Original Equipment (OEM) spark plugs for the Saturn Vue were typically made by ACDelco for the GM engines and Denso for the Honda 3.5L V6. Many aftermarket brands offer excellent or even superior performance. They generally fall into three categories based on their tip material: copper, platinum, and iridium.
Brand Quality Tiers
| Tier | Brands | Description & Best Use |
|---|---|---|
| Premium / OEM Equivalent | NGK, Denso, ACDelco (Iridium/Platinum) | These brands are often the original suppliers. Iridium and double platinum plugs offer the longest life (up to 100,000 miles) and most consistent performance. They are the best choice for a long-term, reliable repair. |
| Quality Aftermarket | Bosch, Autolite, Champion (Platinum/Iridium) | These are trusted brands that offer high-quality plugs, often at a slightly lower price than premium brands. Their platinum and iridium options provide good longevity and performance. Some owners have reported issues when using non-OEM brands, so ensure you have the exact part number for your engine. |
| Standard / Economy | Copper plugs from any brand (e.g., Champion, Autolite), Skyward | Copper plugs are the most affordable but have the shortest lifespan, often needing replacement every 30,000 miles. They are a good conductor but wear out faster. They are best for older vehicles or if you are on a tight budget, but expect to change them more frequently. |
Known Issues and Recalls
No recalls or widespread Technical Service Bulletins (TSBs) exist specifically for Saturn Vue spark plugs. However, engine misfires are a known issue for some model years. Often, a misfire (which may trigger a code like P0300, P0301, etc.) is caused by a worn-out spark plug or a failing ignition coil. On the 3.0L V6, oil leaking from the valve cover gaskets can fill the spark plug tubes, ruining the coil boots and causing misfires. If you find oil when changing your plugs, you must replace the valve cover gaskets and the oil-soaked coil boots.
🎬 Learn why oil leaks cause misfires on Saturn Vue coils.Pro Tip: Check the Gap
Even if a spark plug is advertised as "pre-gapped," you should always double-check the gap with a feeler gauge or gap tool before installation. The gap is the distance between the center and ground electrodes, and it must be set to your engine's specification. An incorrect gap can cause misfires and poor performance. Be extra careful when gapping iridium plugs, as the fine center electrode can be easily damaged.
Frequently Asked Questions (FAQ)
How often should I change the spark plugs on my Saturn Vue?
It depends on the type of plug. Standard copper plugs should be changed every 30,000 miles. Platinum and Iridium plugs can last much longer, typically between 60,000 and 100,000 miles. Your owner's manual has the specific interval for the original plugs.
What is the difference between Iridium, Platinum, and Copper plugs?
The main difference is the material on the center electrode, which affects durability and price. Iridium is a very hard, durable metal that allows for a very fine electrode, providing a focused spark and a long life. Platinum is also very durable but slightly less so than iridium. Copper is an excellent conductor but wears out the fastest.
Why is the check engine light on after changing my spark plugs?
This could be due to several reasons. An incorrect spark plug gap, a damaged spark plug, or a coil that wasn't plugged back in correctly are common causes. Sometimes, a new plug can be faulty out of the box. Have the diagnostic trouble code read at an auto parts store to help pinpoint the specific cylinder that is misfiring.
Why is the replacement so difficult on V6 models?
On V6 engines, three of the six cylinders are at the back of the engine bay near the firewall. On the 3.0L and 3.6L V6 engines, the upper intake manifold sits on top of the rear cylinders, blocking access to the ignition coils and spark plugs. This manifold must be removed to perform the job, which adds significant time and complexity.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12681663 12681660 19300872 12582002
Spark plug gap varies by engine. For example, the 3.5L V6 requires a gap of 1.0 - 1.1 mm (0.039 - 0.043 in). The 2.2L Ecotec often requires a gap around 0.040 in. Always verify the correct specification for your specific engine in your owner's manual or a repair guide.
