Chevrolet Trailblazer 2002-2010 Spark Plug Replacement Guide
Keep your Trailblazer's engine running smoothly by choosing the right spark plugs and avoiding common issues.
- For best results, use ACDelco Iridium spark plugs (Part #41-103) as the 4.2L engine is sensitive to plug variations.
- Always check the spark plug gap before installation; it should be around 0.040-0.043 inches for the 4.2L engine.
- Symptoms like rough idle, poor acceleration, and a flashing check engine light are common indicators of failing spark plugs.
- The replacement is DIY-friendly but requires removing the air intake resonator to access all six coils.
Signs Your Trailblazer Needs New Spark Plugs
Worn-out spark plugs can cause a range of noticeable problems. If you experience any of these, it might be time for a replacement:
- Rough Idle: Your engine may shake or sputter when the vehicle is stopped.
- Poor Acceleration: The vehicle may feel sluggish or slow to respond when you press the gas pedal.
- Reduced Fuel Economy: You might find yourself filling up the gas tank more often than usual because bad plugs lead to inefficient fuel combustion.
- Engine Misfires: You may feel a hesitation or jerking during acceleration. This can also trigger a flashing Check Engine Light.
- Difficulty Starting: A weak spark can make it harder for the engine to turn over, especially in the cold.
- Check Engine Light: A steady or flashing Check Engine Light is often caused by misfires related to failing spark plugs. Common codes include P0300 (random misfire) or P0301-P0306 (misfire on a specific cylinder).
Choosing the Right Aftermarket Spark Plugs
For the 2002-2010 Chevrolet Trailblazer, especially the common 4.2L inline-6 engine, sticking close to the original equipment (OE) specifications is highly recommended. These engines can be sensitive to spark plug variations. While many aftermarket brands are available, they are not all created equal for this specific vehicle.
Brand Quality Tiers for Trailblazer
| Tier | Brands | Notes |
|---|---|---|
| Tier 1: OE & Recommended Aftermarket | ACDelco, NGK | ACDelco is the original equipment manufacturer (OEM) brand for GM vehicles. Many owners and mechanics report that the 4.2L engine runs best and most reliably on ACDelco Iridium plugs (Part #41-103). NGK is also a highly respected manufacturer that produces plugs to OE standards and is often considered an equivalent or even the actual manufacturer for some ACDelco plugs. Both are excellent choices for longevity and performance. |
| Tier 2: Quality Aftermarket | Denso, Bosch | Denso and Bosch are reputable brands that manufacture high-quality iridium and platinum plugs. While they are generally reliable, some Trailblazer owners in forums report occasional, though rare, issues with rough idling compared to OE plugs. If choosing these brands, ensure the part number is an exact match for your Trailblazer's engine. |
| Tier 3: Economy/Standard | Autolite, Champion, Skyward | These brands offer more budget-friendly options, often with copper or standard platinum plugs. While they can work, they may not have the same performance or 100,000-mile lifespan as iridium plugs. Some owners use them without issue, but others report the need for more frequent changes and a higher likelihood of causing intermittent misfire codes down the road. These are best considered a short-term solution. |
A Note on Iridium vs. Platinum/Copper
The original plugs for the Trailblazer were long-life iridium plugs. While cheaper copper or platinum plugs will fit, they will wear out much faster and may not provide the same consistent spark, potentially leading to performance issues sooner. For the best results and longest service interval, sticking with Iridium plugs from a top-tier brand is the best path.
Known Issues & Recalls
No specific recalls or widespread Technical Service Bulletins (TSBs) were found for spark plugs on the 2002-2010 Chevrolet Trailblazer. However, a TSB for other GM models with different engines notes that oil or coolant leaking into the spark plug tubes from a porous cylinder head can cause misfires. While not specific to the Trailblazer's 4.2L engine in the bulletin, if you find oil on your old spark plugs, it's a sign of a different problem that new plugs won't fix.
Installation Tips for Trailblazer (4.2L I6)
Replacing the spark plugs on the 4.2L engine is a straightforward job for a DIYer with basic tools.
- Access: You will need to remove the large plastic engine cover and the air intake resonator that runs over the top of the engine to access all six ignition coils.
- Coil Packs: Each spark plug is located underneath an ignition coil. Each coil is held down by a 10mm bolt.
- Cylinder #1: The front-most ignition coil bolt can be partially hidden by a wiring harness. You may need to carefully unclip and move this harness to get a socket on the bolt.
- Cleanliness: Before removing the old spark plugs, use compressed air to blow any dirt or debris out of the spark plug wells. This prevents it from falling into the engine cylinder.
- Spark Plug Gap: Always check the gap of your new spark plugs before installation, even if they are pre-gapped. The correct gap for the 4.2L engine is typically 0.040 - 0.043 inches, but always verify with the plug manufacturer's specs.
- Torque: Tighten the new spark plugs to the correct torque specification, which is typically around 13 ft-lbs. Over-tightening can damage the plug or the cylinder head.
Pro-Tip: Use Dielectric Grease
Apply a small amount of dielectric grease to the inside of the ignition coil boot before reinstalling it onto the new spark plug. This protects against moisture and ensures a good electrical connection. Some mechanics also recommend a very light coat of anti-seize on the plug threads, but be careful not to get any on the electrode.
Frequently Asked Questions (FAQ)
How often should I replace the spark plugs on my Trailblazer?
If you use the recommended ACDelco or other high-quality Iridium spark plugs, the replacement interval is typically every 100,000 miles. If you use standard platinum or copper plugs, you should plan to replace them much more frequently, around 30,000-50,000 miles.
Should I replace the ignition coils at the same time as the spark plugs?
It is not required to replace the ignition coils with the spark plugs. However, if your vehicle has high mileage or you are diagnosing a misfire, it can be a good preventative measure. A failing coil can ruin a new spark plug, and a worn spark plug can put extra strain on a coil.
Why are ACDelco plugs so highly recommended for the Trailblazer?
The 4.2L Atlas inline-6 engine in the Trailblazer is known for being particular about its spark plugs. Owners and mechanics have found that using the original equipment ACDelco Iridium plugs provides the smoothest idle and most consistent performance, with the lowest chance of causing misfire codes. While other brands may work, they sometimes cause issues that are resolved by switching back to ACDelco.
What does a P0301 code mean on my Trailblazer?
A P0301 code means "Cylinder 1 Misfire Detected". This means the computer has identified that the first cylinder (closest to the front of the vehicle) is not firing correctly. While a bad spark plug is a very common cause, it can also be caused by a faulty ignition coil, a clogged fuel injector, or a mechanical engine issue.

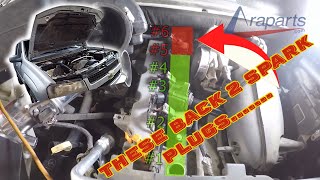

Helpful Videos
Technical Specifications
OEM Part Numbers: 41-103
Engine: 4.2L I6, 5.3L V8, 6.0L V8. Spark Plug Type: Iridium is OE for the 4.2L. Gap (4.2L): ~0.040" - 0.043". Torque Spec: ~13 ft-lbs.
