Essential Guide to the Engine Water Pump for the 2002-2009 Volkswagen Golf
Your Golf's engine health depends on a working water pump—here's how to choose the right replacement.
- Always replace the water pump, timing belt, and tensioners together as a kit to save on labor and prevent future failures.
- Insist on a replacement water pump with a metal or durable composite impeller to avoid the common failure of the original plastic design.
- For a labor-intensive job like this, it is wise to invest in a trusted OEM-spec brand like Hepu, Graf, or Saleri for long-term reliability.
- An overheating engine is a critical warning. Pull over immediately to prevent catastrophic and expensive engine damage.
Symptoms of a Failing Water Pump
A bad water pump on a VW Golf can lead to serious engine damage if ignored. Watch for these common signs:
- Engine Overheating: This is the most critical symptom. If the temperature gauge on your dashboard suddenly climbs into the red, the pump may have stopped circulating coolant. Pull over safely and turn off the engine immediately to prevent damage.
- Coolant Leaks: Finding a puddle of pink or purple fluid under the front-center of your car is a strong sign of a leak. The pump's internal seals or gaskets can wear out, causing coolant to drip from a "weep hole" or the gasket surface.
- Whining or Grinding Noise: A high-pitched whining or grinding sound coming from the engine bay that changes with engine speed can indicate the pump's internal bearings are failing. 🎬 Listen to what a failing water pump bearing sounds like here. If the bearing seizes, it can shred the timing belt and cause catastrophic engine damage.
- No Leak, Still Overheating: A common failure on these specific Golf models is the original plastic impeller breaking apart or spinning freely on its shaft. When this happens, the pump stops moving coolant, causing the engine to overheat, but you won't see an external leak.

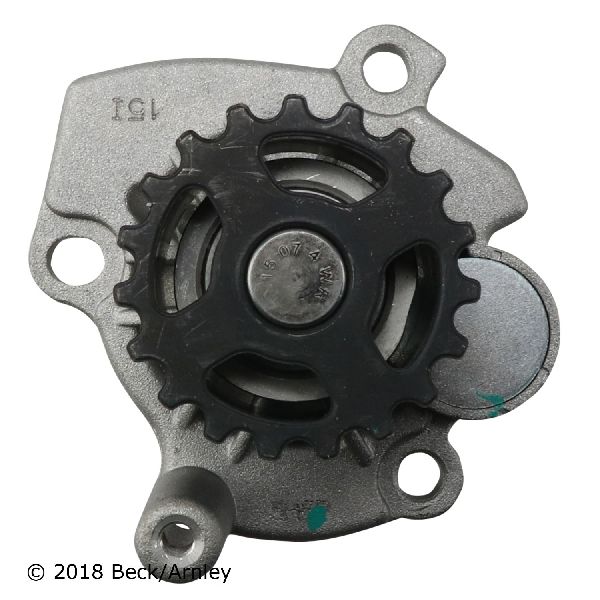

Choosing the Right Aftermarket Water Pump
When replacing the water pump on your Golf, you have a choice between OEM and a wide range of aftermarket brands. For this specific part, the quality of the aftermarket options is often considered an upgrade over the original factory part.
The Plastic Impeller Problem
The original water pumps installed in many Mk4 and Mk5 Golfs used a plastic impeller. Over time, repeated heat cycles make this plastic brittle, causing it to crack, break apart, or detach from the pump shaft. This is a well-documented failure point. For this reason, it is highly recommended to choose an aftermarket replacement that features a more durable metal or composite impeller.
Aftermarket Brand Tiers
Not all aftermarket brands are created equal. For a part that requires so much labor to replace, investing in a quality unit is smart insurance.
- Premium / OEM-Spec Brands (Recommended): Brands like Hepu, Graf, and Saleri are often Original Equipment Suppliers (OES) for Volkswagen. This means they make the parts for VW, so the quality meets or exceeds factory standards. These brands are highly trusted in the VW community and almost always feature durable metal impellers.
- Reliable Aftermarket Brands: Gates and Dayco are reputable brands well-known for producing complete timing belt kits that include a water pump. They are a solid, reliable choice for a complete service. Beck Arnley is another established aftermarket brand.
- Budget-Conscious Brands: Brands like URO Parts, GMB, and US Motor Works offer a lower price point. However, forum discussions show mixed reviews for critical components like water pumps. While a brand like URO may be fine for less critical parts, using a budget pump in a labor-intensive timing belt job is a risk, as a premature failure would mean paying for the same expensive labor all over again.
Pro Tip: Replace as a Kit
Because the water pump is driven by the timing belt, you should always replace the timing belt, tensioners, and water pump at the same time. The majority of the cost is labor to access these parts. Replacing them all at once saves you from having to pay for the same job twice and prevents a failing pump from destroying your new timing belt and engine.
Cost to Replace a 2002-2009 Golf Water Pump
Costs can vary by location and the specific engine in your Golf. The estimates below assume the water pump is being replaced along with the timing belt.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump (Part Only) | $43 - $200 |
| New OEM Water Pump (Part Only) | $150 - $250 |
| Shop Labor (including Timing Belt) | $480 - $1,080 |
| Total Estimated Cost | $525 - $1,280 |
Frequently Asked Questions (FAQ)
Do I really need to replace my timing belt with the water pump?
Yes, absolutely. The water pump is located behind the timing belt. The labor cost to get to it is the most expensive part of the job. If you replace only the pump and the old timing belt or tensioner fails later, you will pay for the entire job again. Likewise, if a new timing belt is installed and the old water pump fails, it can leak on the new belt or seize, causing the belt to break and leading to catastrophic engine damage.
Is a metal impeller always better than plastic?
For this generation of VW, yes. The original plastic impellers are a known failure point. Modern aftermarket pumps from quality brands use stamped steel, cast iron, or durable composite impellers that are far more reliable than the original plastic design.
Can I replace the water pump myself?
This is not a job for a beginner. Because it involves replacing the timing belt, special tools are required to lock the engine's camshaft and crankshaft in place. An error in setting the timing can result in severe engine damage the moment you try to start it. This job is best left to an experienced DIYer or a professional mechanic.
🎬 See a full walkthrough of the timing belt and pump replacement.What kind of coolant should I use in my Golf?
Volkswagen engines require a specific type of coolant to protect the aluminum components in the engine and cooling system. For this year range, you should use G12 (pink/purple) or a compatible successor like G13 coolant. Do not mix it with generic green or orange antifreeze, as this can cause gelling and damage the cooling system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06A121012G 06A121011L 038121011G 07K121011B
The most common water pumps for 2002-2009 Golfs are driven by the timing belt. Key engines include the 1.8T (Mk4), 2.0L 8v (Mk4), 1.9L TDI (Mk4/Mk5), and 2.5L 5-cylinder (Mk5). The original pumps often featured a plastic impeller, which is a known failure point; metal impeller upgrades are highly recommended.
