A Guide to Spark Plug Wire Sets for the 2002-2009 GMC C6500 Topkick
Keep your Topkick's 8.1L V8 running strong by choosing the right spark plug wires and avoiding common issues.
- Heat is the main cause of failure for wires on the 8.1L V8; always transfer the metal heat shields from the old wires to the new set.
- Before ordering, check if your engine has round or square ignition coils, as they require different length wires.
- Symptoms of bad wires include a rough idle, hesitation, and a Check Engine Light with P030X misfire codes.
- For reliability, stick with quality brands like ACDelco or NGK; for high-heat situations, consider wires with ceramic boots.
Signs of Failing Spark Plug Wires
When spark plug wires wear out, they can't deliver a consistent spark. This will cause noticeable problems with your truck's engine. You might feel a rough idle, where the engine shakes or vibrates, or notice it hesitates when you accelerate. The most common sign is a Check Engine Light with misfire codes. Ignoring these symptoms can lead to bad gas mileage, failed emissions tests, and even damage to expensive parts like your catalytic converters.
Choosing the Right Aftermarket Wires
For a hard-working truck like the C6500 Topkick, selecting a quality wire set is important. The biggest enemy of spark plug wires on the 8.1L V8 engine is high heat, which can cause boots to split or wires to fail. Here is a breakdown of common brand choices:
Tier 1: OEM & OE-Equivalent Brands
These brands are known for meeting original factory specifications and are a reliable choice for most owners.

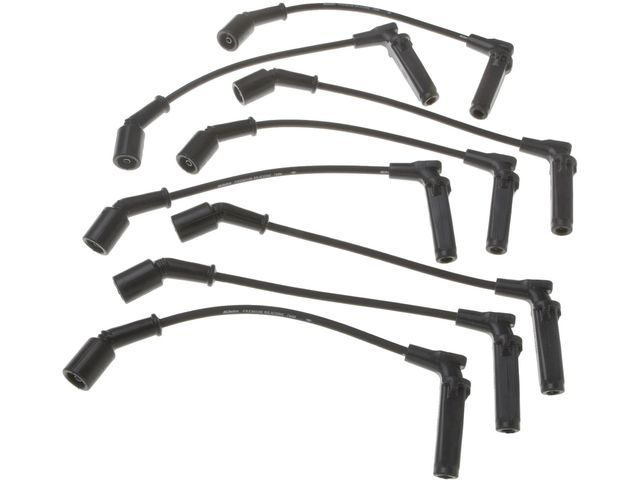

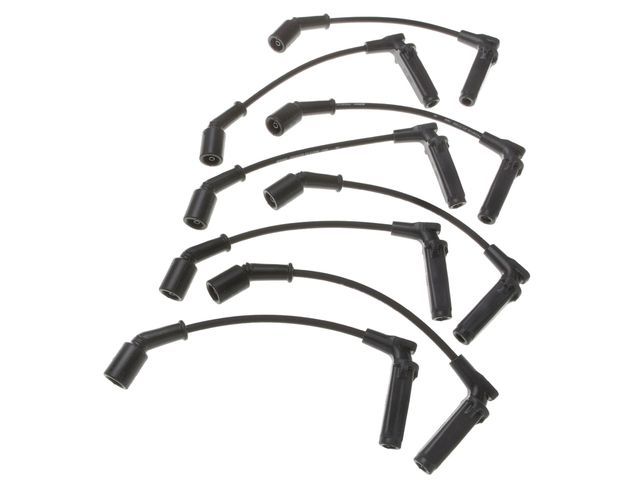

- ACDelco: As the original equipment (OE) supplier for GM, ACDelco wires are the benchmark for correct fit and performance in a stock truck. While reliable, some owners note the original wires can be prone to heat damage over time.
- NGK: A highly respected Japanese brand famous for its ignition components. NGK wire sets are a popular and dependable alternative to OEM parts, known for excellent quality.
Tier 2: Quality Aftermarket & Specialty Brands
These brands offer a good balance of price and quality, with some offering features designed to combat common issues.

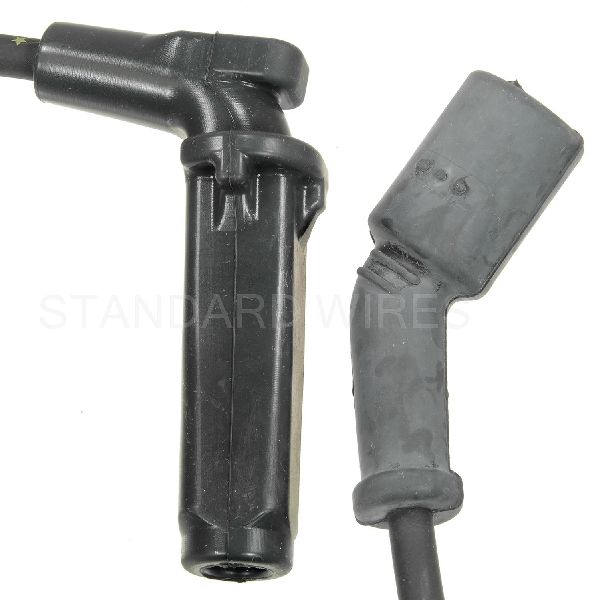

- Standard Motor Products (SMP): A well-known aftermarket manufacturer that produces reliable OE-replacement style wire sets.
- Pertronix / Accel: These brands are often seen as a performance upgrade. Some of their wire sets for the 8.1L engine feature ceramic boots that offer superior heat resistance, which is a major benefit for these hot-running engines. One user noted that Accel wires were slightly longer, which helped with clearance around aftermarket headers.

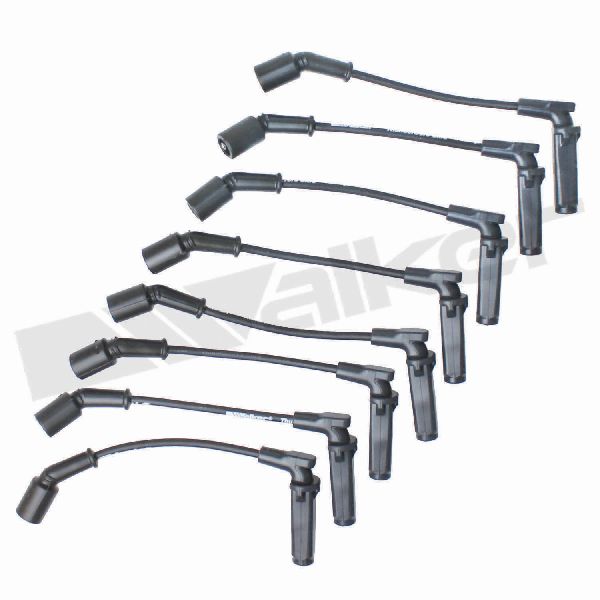

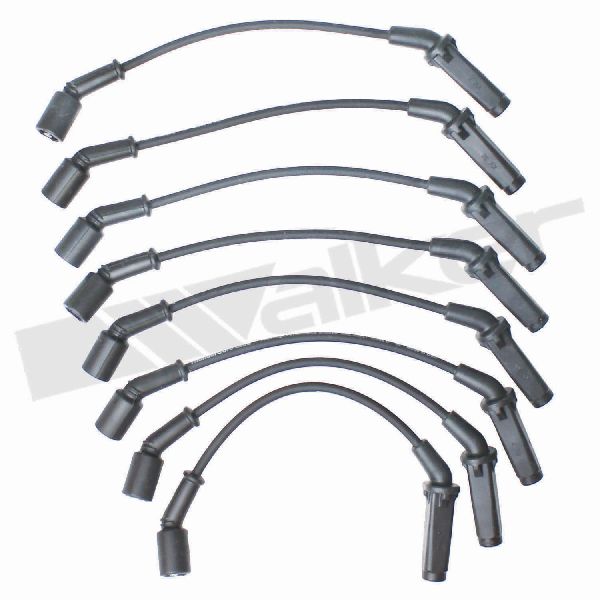

- Walker Products: A known aftermarket brand that offers a range of engine management parts.
Important: Check Your Ignition Coils Before Ordering!
During this period, GM used two different types of ignition coils on the 8.1L V8 engine: round and square. Square coils need longer wires than round coils. Always look at your engine and confirm which coil type you have before buying a new wire set to ensure you get the right parts.
Known Issues & Pro Tips
The most common problem for 8.1L engines is the spark plug wire boot on cylinder #7 splitting or popping off due to heat. This will cause a misfire and a P0307 trouble code. To prevent this and other heat-related failures:
- ALWAYS reuse the factory metal heat shields. Your original wires have metal heat shields around the boots. These must be transferred to your new wires. Many wire failures happen because these shields were not reinstalled during a previous repair.
- Use dielectric grease. Applying a small amount of dielectric grease inside the new boots helps seal them from moisture and makes them much easier to remove next time.
Frequently Asked Questions
Can I replace just one bad spark plug wire?
It is highly recommended to replace all the spark plug wires as a complete set. They all have the same age and wear. If one has failed, the others are likely not far behind.
Do I need special tools to replace my spark plug wires?
No special tools are required. A 10mm socket may be needed for some brackets holding the wires. A spark plug wire puller or a large flathead screwdriver can be helpful to gently pry off stubborn boots that are stuck to the spark plugs. Be aware that very old wires may break during removal, so plan on replacing them.
Are there any recalls for the spark plug wires on my Topkick?
No. There are no specific recalls or technical service bulletins (TSBs) from the NHTSA for spark plug wire failure on the 2002-2009 GMC C6500 Topkick.
Should I replace my spark plugs at the same time?
Yes, it is best practice to replace the spark plugs and wires together. The 8.1L engine is known to consume some oil, which can cause spark plugs to foul more quickly, around every 25,000 miles in some cases. Since you already have to access the plugs to change the wires, doing both at once saves time and ensures a complete ignition tune-up.
Technical Specifications
OEM Part Numbers: 9748KK
Set of 8 wires. Designed for 8.1L V8 gasoline engine. Must verify ignition coil type (round or square) for proper fitment.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
