Chevrolet Trailblazer A/C Actuator Guide for 2002-2009 Models
Fixing clicking noises from your dash and restoring climate control starts with the right A/C actuator.
- Your Trailblazer has multiple A/C actuators; you must diagnose the correct one by locating the clicking sound before buying a replacement.
- A repetitive clicking noise from the dash is the most common sign of a failing actuator with broken internal gears.
- Aftermarket actuators are a cost-effective and logical choice, as the original OEM parts are also prone to the same type of failure.
- Recalibrating the HVAC system by pulling the 'HVAC B' fuse after installation is a required step for proper function.
Is Your Trailblazer's Climate Control Acting Up?
A very common failure point in the 2002-2009 Chevrolet Trailblazer is the HVAC A/C actuator. These small motors are known to fail, leading to annoying and uncomfortable climate control problems. The issue usually starts with a distinct clicking or ticking noise from the dashboard when you start the vehicle or change the temperature settings. Eventually, you might lose control of the temperature on one or both sides, or find that the air is blowing from the wrong vents.
Common Symptoms of a Bad A/C Actuator
- Clicking or Ticking Noises: A repetitive clicking sound from behind the dashboard is the most common sign. This is the sound of broken plastic gears inside the actuator as it tries and fails to move the door.
- Temperature Stuck on Hot or Cold: You might have the A/C on full blast but only get hot air, or vice-versa. This happens when the actuator can no longer move the blend door to mix air properly.
- Incorrect Airflow Direction: Air gets stuck on the defroster or floor vents and won't switch to the main dash vents, or vice-versa. This points to a failed mode door actuator.
- Dual-Zone Temperature Mismatch: If you have dual climate control, one side (driver or passenger) may blow hot while the other blows cold. This helps pinpoint which side's temperature actuator has failed.
Which Actuator Is Bad? Your Trailblazer Has Several.
Before ordering a part, you must identify which actuator has failed. Your Trailblazer can have up to five separate actuators in the front HVAC system, plus more if you have an EXT model with rear controls. The main front actuators are for driver's temperature, passenger's temperature, and mode (vent selection). Listen carefully for the clicking noise to pinpoint the location.

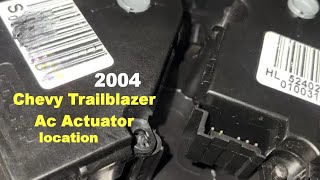

- Driver's Side: Actuators for the driver's temperature and mode control are located on the driver's side of the center console, generally above and around the gas pedal area. 🎬 Watch this walkthrough for replacing the driver side actuator.
- Passenger's Side: The passenger temperature actuator is located behind the glove box.
- Rear (EXT Models): Actuators for the rear HVAC system are located inside the trim panels in the rear cargo area.
Common Ordering Mistake: Do not buy a part until you have confirmed which actuator is making noise or has failed. A passenger-side actuator will not fix a driver's-side temperature problem.
Aftermarket vs. OEM Actuators for the Trailblazer
For many repairs, choosing an original equipment (OEM) ACDelco part is the safest choice. However, for the Trailblazer's A/C actuators, the story is different. The original GM parts are widely known to fail because of a weak plastic gear design that cracks or splits. Many owners and mechanics in online forums report that even brand-new OEM replacement parts fail at a similar rate as quality aftermarket parts. Given that aftermarket actuators are significantly more affordable, they offer excellent value for this specific repair. Paying a high price for an OEM part does not guarantee a longer service life in this case.
Cost to Replace a Trailblazer A/C Actuator
| Part Type | Price Range |
|---|---|
| New Aftermarket Actuator | $20 - $45 |
| New OEM Actuator | $60 - $90+ |
| Shop Labor | $100 - $1,000+ |
Note: Labor costs vary dramatically. An easy-to-access actuator may take less than an hour, while a difficult one could be quoted at many hours if the shop plans to remove the dashboard.
Pro Tip: The Passenger Side Replacement Shortcut
Replacing the passenger-side temperature actuator is famously difficult because a metal dash support bracket blocks access. A repair shop may quote a very high labor cost that involves removing the entire dashboard. However, a common technique used by experienced mechanics is to carefully cut a small, non-structural section of this bracket with an oscillating tool. This creates just enough space to remove and install the new actuator, potentially saving hundreds of dollars in labor.

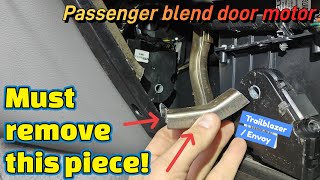

🎬 See how to use the shortcut for passenger side replacement.Frequently Asked Questions (FAQ)
How hard is it to replace a Trailblazer A/C actuator myself?
The difficulty depends entirely on the actuator's location. The driver-side temperature actuator near the gas pedal is considered easy for a DIYer with basic tools. The passenger-side actuator is considered very difficult unless you use the bracket-cutting shortcut. The mode door actuator is also challenging due to its high position in the dash.
Do I need to recalibrate the system after replacing the actuator?
Yes, this is a critical and required step. After installing the new part, you must perform a recalibration so the HVAC module learns the new actuator's position. The most common method is to pull the HVAC B fuse (fuse #36 in the rear fuse block under the back seat) for at least 30-60 seconds. Reinstall the fuse, then start the vehicle but DO NOT touch any climate controls for 1-2 minutes while the system resets and cycles all the actuators.

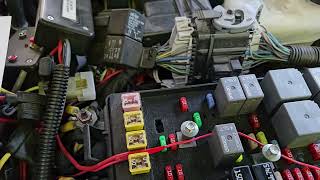

🎬 Watch this guide to properly reset your climate control actuators.Why did my A/C actuator fail right after changing my battery?
This is very common. When the battery is disconnected and reconnected, the HVAC control module automatically runs a full recalibration sequence, cycling all the actuators from end to end. If an actuator's internal gear is already cracked and weak, this full-range movement can cause it to finally break completely, leading to the clicking noise.
Are there any recalls for the Trailblazer A/C actuator?
No, there are no active safety recalls from the NHTSA for this issue. However, GM did issue Technical Service Bulletins (TSBs), such as TSB 02-04-21-006, which acknowledged the clicking noise from failing actuators and provided guidance for replacement.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89018678 52411435 52474795 88892975 15-72811
The 2002-2009 Trailblazer uses several different actuators for temperature blend, mode, and recirculation functions. While many look similar, they may have different part numbers and internal clocking. Always verify the specific actuator needed for the failed location (e.g., driver side temp, passenger side temp, mode door).
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
