Guide to 2002-2006 Honda Civic Relays: Troubleshooting and Replacement
Solve common no-start or A/C problems by learning how to identify and replace a faulty relay in your Civic.
- A 'crank, no-start' issue is a classic sign of a bad PGM-FI main relay, a common Honda problem.
- A/C that suddenly stops working is often just a cheap and easy-to-replace A/C compressor relay.
- Relay replacement is a simple DIY job; locate the relay in the under-hood or behind-glove-box fuse panel and swap it.
- You can diagnose a bad relay by swapping it with an identical one from a different circuit (like the horn).
Understanding Relay Problems in Your Civic
If your Civic cranks but won't start, or if the A/C suddenly stops blowing cold, a bad relay could be the culprit. These small electrical components are common failure points, but they are usually easy and inexpensive to replace. This guide will walk you through the symptoms, locations, and replacement options for the most common relays in your 2002-2006 Honda Civic.
Common Failure Symptoms
The symptoms of a bad relay depend on which circuit it controls. The two most common failures are the PGM-FI Main Relay and the A/C Compressor Clutch Relay.
- PGM-FI Main Relay Failure: This is a classic Honda issue. A primary symptom is an engine that cranks but refuses to start. You may also experience the engine starting and then immediately stalling. Often, you won't hear the faint hum of the fuel pump for a few seconds when you turn the key to the 'ON' position. These problems can be intermittent and sometimes worsen in hot weather, as heat can cause failing solder joints inside the relay to lose connection.

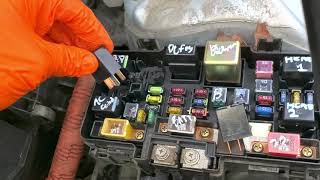

- A/C Compressor Clutch Relay Failure: The most obvious symptom is that the A/C blows warm or hot air. You may notice that the A/C compressor clutch is not engaging when you turn 🎬 See this walkthrough on troubleshooting the A/C relay and circuit. the system on. In some cases, a failing A/C relay can work intermittently, especially when it's hot.
A Note on PGM-FI Main Relays
While older (pre-1996) Hondas were famous for main relay failures due to cracked solder joints, the relays in the 2002-2006 generation are a more reliable design. However, they can still fail. A clicking sound from the relay area behind the glove box can sometimes indicate a problem with the relay or the signals it's receiving from the car's computer.
Choosing the Right Aftermarket Relay
When replacing a relay, you don't necessarily need to buy an expensive OEM (Original Equipment Manufacturer) part from the dealer. Aftermarket parts offer a reliable and cost-effective solution.
- ACDelco: ACDelco is a well-known brand that supplies parts to major automakers like GM. While not the original supplier for Honda, their parts are generally considered good quality and a reliable alternative to OEM. They often meet or exceed original specifications.
- Replacement: This is a budget-friendly brand. These parts are designed to be a direct-fit replacement for the original and provide a functional, low-cost repair. For a simple component like a relay, a 'Replacement' brand part is often a practical choice for getting your car back on the road without spending much.
Pro Tip: Many relays in your Civic's fuse boxes are identical. For example, the A/C compressor clutch relay is often the same part number as the cooling fan relay. You can temporarily swap a suspect relay with a known good one from a non-critical system (like the horn or headlights) to confirm the diagnosis before buying a new part.
| Brand Tier | Price Range | Notes |
|---|---|---|
| Premium Aftermarket (e.g., ACDelco) | $30 - $60 | Known brand with a reputation for quality. |
| Standard Aftermarket (e.g., Replacement) | $18 - $35 | Cost-effective option that meets basic function and fit. |
Frequently Asked Questions (FAQ)
Where are the relays located on my 2002-2006 Civic?

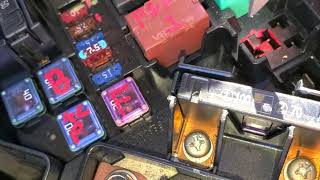

Your Civic has two main fuse/relay boxes. One is in the engine bay, usually on the passenger side near the battery. 🎬 Watch: A quick guide to finding your interior and engine fuse boxes. This box contains relays for the A/C compressor clutch, condenser fan, and headlights. The second box is inside the car, behind the glove compartment. This is where you will find the PGM-FI main relays.
Can I replace a relay myself?
Yes, this is a very beginner-friendly repair. No tools are usually required. You simply locate the correct relay using the diagram on the fuse box cover, pull the old one straight out, and plug the new one in. The most difficult part is often just accessing the interior fuse box behind the glove compartment.
Is there a recall on relays for my Civic?
No, there are no specific recalls for the PGM-FI, fuel pump, or A/C relays on the 2002-2006 Honda Civic. There was a recall for some 2002-2003 models related to the headlight switch wiring, but not the relays themselves.
What's the difference between the main relay and the fuel pump relay?
In the 2002-2006 Civic, the main power system is controlled by two PGM-FI relays located behind the glove box. One of these relays, when activated by the ignition, provides power to the fuel pump relay, which is located in a separate fuse panel. A failure in the PGM-FI main relay will prevent the fuel pump from getting power, leading to a no-start condition.
Helpful Videos
Technical Specifications
OEM Part Numbers: 39794-SDA-A05 39400-S84-003

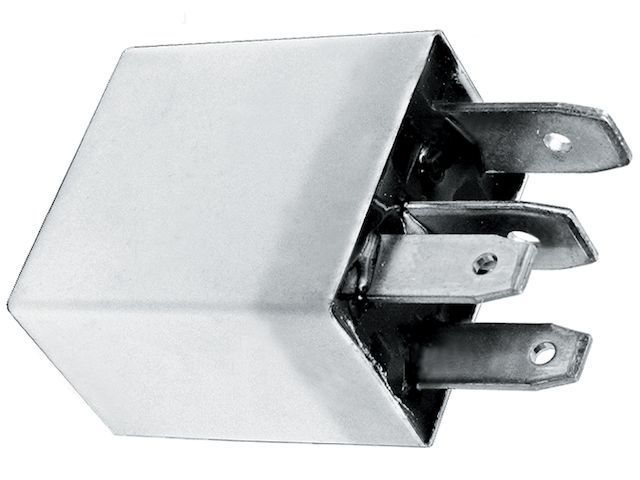

Most relays for this Civic are 12V, 4-pin or 5-pin configuration. The PGM-FI and A/C relays are typically standard grey or blue box-style relays.
