A Guide to Replacing the Starter in a 2002-2006 Chevrolet Trailblazer EXT
If your Trailblazer EXT clicks but won't start, this guide will help you understand the problem and choose the right replacement starter.
- Before replacing the starter, always check the battery, starter relay, and ignition switch first, as they are common and cheaper failure points.
- The replacement job is very different for the 4.2L I6 (top access) versus the 5.3L V8 (bottom access, requires removing a crossmember).
- There are no recalls for the starter motor itself, but a TSB exists for the starter relay on 2002 models that can cause a no-crank condition.
- Symptoms like a single click, grinding, or intermittent starting are strong indicators of a failing starter.
Is Your Trailblazer EXT Starter Failing?
A no-start situation is frustrating, but a failing starter often gives warning signs. It's important to distinguish these from a dead battery. Before you buy a new starter, make sure your battery is fully charged and the terminals are clean and tight. A weak battery can cause rapid clicking that sounds like a bad starter.
Before You Buy: Check These First!
A no-start condition on the Trailblazer EXT isn't always a bad starter. Owners and technicians often find other, less expensive parts are the cause. Check these items first:
- Battery & Connections: A weak battery or corroded terminals are the most common cause of starting issues. Get your battery tested for free at most auto parts stores.
- Starter Relay: The underhood fuse box contains the starter relay. A faulty relay is a known issue, and there was even a Technical Service Bulletin (TSB) for the 2002 model for a no-crank condition caused by this relay. Try swapping the relay with a similar one 🎬 Watch: How to find and test your starter relay and fuses. in the fuse box to test it.
- Ignition Switch: A worn-out ignition switch is another well-documented problem on this platform that can prevent power from reaching the starter.
Common Failure Symptoms
- Single Loud Click: You turn the key and hear one solid 'CLICK', but the engine doesn't crank. This usually means the starter's solenoid is working, but the motor itself is not.
- Rapid Clicking Noise: A fast, repetitive clicking sound can mean the battery is too weak, but it can also be a sign of a failing starter solenoid that isn't getting enough power to engage the motor fully.
- No Sound at All: If your dashboard lights turn on but you hear nothing when you turn the key, the issue could be the starter, but it's also very commonly caused by a bad ignition switch or starter relay.
- Grinding or Whirring Noise: A grinding sound when you try to start the engine, or a whirring noise after it starts, suggests the starter gear is damaged or not meshing correctly with the engine's flywheel. This can cause serious damage if ignored.
- Intermittent Starting: The truck starts perfectly one day but refuses to crank the next. This unpredictability is a classic sign of a starter motor or solenoid that is about to fail completely.
Choosing the Right Aftermarket Starter
When replacing the starter, you have several quality brands to choose from. Not all are created equal, but even a value-priced new starter is often a better choice than a cheap, rebuilt unit with questionable reliability.
Brand Tiers
- Premium Brands (Bosch, Denso): Bosch and Denso are well-respected names in the automotive world, known for making high-quality electrical components that meet or exceed original equipment (OE) standards. Denso is a major OE supplier for many automakers. Choosing a new starter from either of these brands is a solid investment in reliability.
- Standard & Value Brands (Remy, WAI Global, BBB Industries):
- Remy: Once part of GM, Remy is now an independent brand with a long history. They are a popular aftermarket choice, offering a balance of price and performance, though some users report mixed long-term reliability.
- WAI Global: WAI manufactures 100% new starters and positions themselves as an OE-quality alternative. They are a large global supplier with a reputation for good quality.

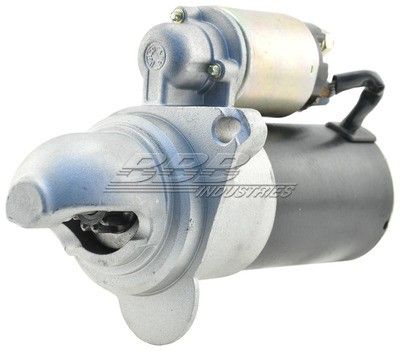

- BBB Industries: As a leading remanufacturer, BBB supplies starters for many major auto parts retailers. They use a detailed process to rebuild and test units to meet OE specifications, often improving on original designs.
Pro Tip: Know Your Engine!
The starter replacement job is very different depending on which engine your Trailblazer EXT has.
- 4.2L I6 Engine: The starter is on the driver's side and is accessed from the top of the engine bay. The space is tight, but it is a manageable job for a DIYer.
- 5.3L V8 Engine: The starter is on the passenger's side and is accessed from underneath the vehicle. This job is more difficult because a large frame crossmember must be removed to get the starter out. 🎬 Watch: The fastest way to replace the starter on a 5.3L V8.
Cost of Replacing a Trailblazer EXT Starter
Here are the estimated costs for replacing the starter on a 2002-2006 Chevrolet Trailblazer EXT. Prices can vary based on your location and choice of parts.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $98 - $280 |
| New OEM Starter (GM) | $280 - $560 |
| Shop Labor | $206 - $303 |
| Total Professional Replacement | $492 - $859 |
Frequently Asked Questions (FAQ)
Is it hard to replace the starter on a Trailblazer EXT?
The difficulty depends on your engine. For the 4.2L I6, it's a moderately difficult job due to tight access from the top. For the 5.3L V8, it is significantly harder because a frame crossmember must be removed to access the starter from below. This makes the V8 job challenging for a beginner.
Are there any recalls for the starter on my Trailblazer EXT?
No. According to the National Highway Traffic Safety Administration (NHTSA), there are no safety recalls specifically for the starter motor on the 2002-2006 Chevrolet Trailblazer EXT. There were recalls for other components, like the window switch, but they are not related to the starting system.
How do I know if it's the starter or just a dead battery?
If the dashboard lights and headlights are bright but the engine only makes a single, loud click or no noise at all, the starter is the likely problem. If you hear rapid clicking and the lights dim when you turn the key, the battery is likely weak or dead. The easiest way to be sure is to have your battery tested.
Do I need special tools to replace the starter?
No special tools are required, but you will need a good socket set with extensions and possibly a swivel socket for hard-to-reach bolts. For the 5.3L V8 model, you will need tools capable of removing the frame crossmember bolts, which may be very tight.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10465527 10465582 12563863
The starter is typically a 12V permanent magnet gear reduction (PMGR) type. The specific power rating (e.g., 1.4 kW) and pinion gear tooth count (e.g., 9-tooth) must match the original for your vehicle's engine (4.2L I6 or 5.3L V8).
