A Guide to the Starter for the 2002-2006 Chevrolet Avalanche 1500
Having trouble starting your Avalanche? This guide covers common starter problems and how to choose the right replacement part.
- Always test the battery and check for corroded cables before replacing the starter; these issues often mimic starter failure.
- A slow crank when the engine is hot (heat soak) is a very common problem and strongly points to a failing starter.
- For reliability, choose a new starter from a reputable brand like Bosch, Denso, or Remy.
- Replacement is a manageable DIY job for those with some experience; removing the passenger front wheel provides better access.
Is Your Avalanche Starter Failing?
A bad starter is a common problem on the GMT800 platform trucks, including the 2002-2006 Avalanche. Failures are usually due to normal wear and tear over time. Recognizing the signs of a failing starter can prevent you from being stranded. However, many symptoms of a bad starter can also be caused by other, simpler issues in the electrical system.
Check This First!
Before you replace your starter, always check your battery and its connections. A weak battery, loose or corroded battery terminals, or bad ground wires can cause the exact same symptoms as a failed starter. Many owners have replaced a starter only to find the real problem was a poor connection. Fully charge and test your battery, and clean the terminals and main ground connections 🎬 Watch: How to diagnose a no-start caused by a blown fuse. before spending money on a new part.
Common Symptoms of a Bad Starter
- Single Loud "Click": The most common symptom is a single, loud click when you turn the key, but the engine does not crank. This usually means the starter's solenoid is engaging, but the motor itself isn't turning.
- Slow or Sluggish Cranking: The engine turns over very slowly, as if the battery is weak. This can be a sign of high electrical resistance inside a worn-out starter motor.
- Grinding or Whirring Noise: You may hear a grinding sound if the starter gear is not meshing correctly with the flywheel, or if it fails to retract after the engine starts. A high-pitched whirring or spinning noise without the engine cranking means the starter motor is spinning, but the drive gear is not engaging the flywheel.
- Intermittent Starting: The truck starts fine sometimes but fails to crank at other times. This often points to a component within the starter that is beginning to fail.
- No Sound at All: If your dashboard lights come on but you hear nothing when you turn the key, the starter may not be receiving power or may have failed completely.
Known Issue: Starter Heat Soak
A well-known issue on these GM trucks is "heat soak." This happens when the starter fails to crank the engine when it's hot, but works fine after it has cooled down for 15-30 minutes. This is caused by the starter's location close to the hot exhaust manifold, which increases electrical resistance in the starter and its wiring. While there are no official recalls or TSBs for this, if you experience slow cranking primarily when the engine is hot, your starter is likely the culprit. Some owners install a heat shield or wrap on their new starter to help prevent this issue from recurring.
🎬 See how to install a heat shield to fix heat soak.Choosing the Right Aftermarket Starter
When replacing the starter on your Avalanche, you have several good aftermarket options. Since this is a part that will leave you stranded if it fails, quality matters. Opting for a new unit is often recommended for maximum reliability and warranty coverage over a remanufactured part.
| Brand Tier | Brands | Quality & Notes |
|---|---|---|
| Premium Aftermarket | Bosch, Denso | These brands are often original equipment (OEM) suppliers for many automakers and are known for high-quality engineering and durability. They are considered top-tier replacements that meet or exceed factory specifications. |
| OEM-Equivalent / Quality Aftermarket | Remy (Delco-Remy) | Remy has a long history and is closely associated with GM's original parts. They offer a good balance of quality and cost, making them a very popular and reliable choice for GM trucks. |

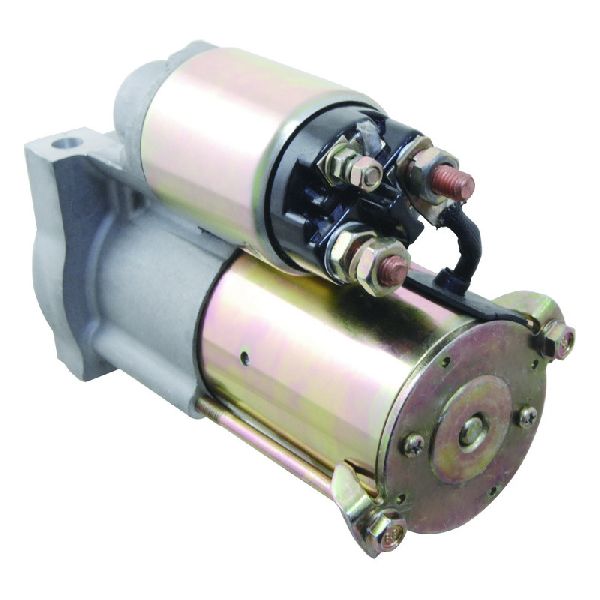

| Standard Aftermarket | WAI Global, BBB Industries | These brands provide functional, budget-friendly replacements. They are a viable option if cost is the primary concern, but may not have the same long-term durability reputation as premium brands. |
Frequently Asked Questions (FAQ)
Is replacing the starter on a 2002-2006 Avalanche a DIY job?
Yes, for someone with moderate mechanical skills and the right tools. The starter is located on the passenger side of the engine, bolted to the transmission housing. Access is tight, but removing the passenger-side front wheel and fender liner can make the job much easier. You will need to safely raise and support the vehicle.
🎬 Watch this step-by-step guide to replacing your Avalanche starter.Are there any recalls on the starter for this truck?
No, there are no recalls or Technical Service Bulletins (TSBs) issued by GM or the NHTSA for starter motor failure on the 2002-2006 Chevrolet Avalanche 1500. Failures are typically due to age and normal wear.
Should I get a new or remanufactured starter?
For a critical part like a starter, a new unit from a quality brand like Bosch, Denso, or Remy is generally the best choice for reliability and peace of mind. While high-quality remanufactured starters from these same brands can be a good value, it's best to avoid generic, low-cost remanufactured units which can be unreliable.
Do I need to reuse the old heat shield?
Yes. If your original starter has a heat shield, it is critical to transfer it to the new starter. This shield protects the starter solenoid from the intense heat of the nearby exhaust, which helps prevent the "heat soak" issue and extends the life of the new part.
Helpful Videos
Technical Specifications

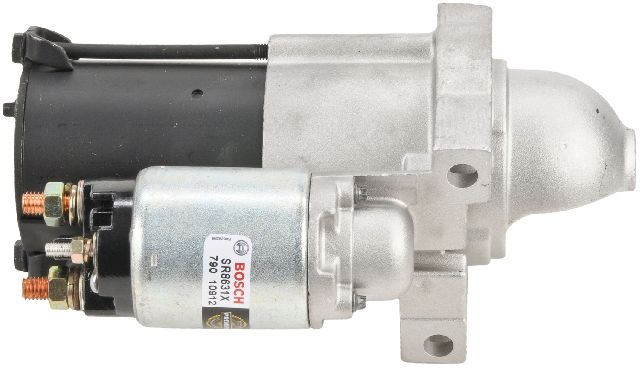

OEM Part Numbers: 89018213
Fits 4.8L, 5.3L, and 6.0L V8 engines. Typically a 2-bolt design with an offset gear reduction (OSGR) configuration. Electrical connections consist of a main battery post and a smaller 'S' terminal post for the solenoid signal wire.
