A/C Compressor Guide for the 2002-2006 Chevrolet Avalanche 1500
If the A/C in your Avalanche is blowing warm, the compressor is a likely culprit; here's how to choose the right replacement.
- A/C compressor failure is a common problem on the 2002-2006 Avalanche.
- When replacing the compressor, you MUST also replace the accumulator and orifice tube and flush the system to prevent immediate failure of the new part.
- Choosing a new unit from an OEM-equivalent brand like ACDelco, Delphi, or Denso offers the best chance for long-term reliability.
- This repair requires special tools for handling refrigerant; a professional installation is recommended if you're not equipped for it.
Is Your Avalanche's A/C Ready for the Heat?
A failing A/C compressor is a common issue on the 2002-2006 Chevrolet Avalanche 1500. These trucks work hard, and over time, the compressor can wear out, develop leaks, or fail internally. When it does, you'll lose your cool air. This guide will walk you through the symptoms of failure, how to choose the best new aftermarket compressor, and what the job entails.
Signs Your A/C Compressor is Failing
A bad compressor will give you a few warning signs. The most obvious is warm air coming from the vents when the A/C is on. You might also hear unusual noises, like grinding or squealing, when you turn the A/C on. This can indicate a failing bearing or internal compressor parts. Another sign is the compressor clutch not engaging; this is the outer part of the pulley that should click and spin with the pulley when the A/C is activated. If it remains still, there could be an electrical issue or a seized compressor. Sometimes, a leak is visible, showing a buildup of oily grime on the compressor body.
Known Issue: The "Black Death"

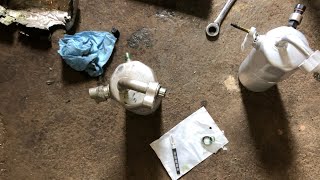

A catastrophic compressor failure can send tiny metal fragments throughout the entire A/C system. This contamination, often called "black death," will quickly destroy a new compressor if not addressed. When replacing a failed compressor, it is critical to also replace the A/C accumulator (or receiver/drier) and the orifice tube, and to thoroughly flush the rest of the system 🎬 See how to flush your A/C system using a flush kit (hoses, evaporator, and condenser) to remove all debris. Some multi-flow condensers cannot be flushed and must be replaced if contaminated. Failure to do this will void the warranty on your new part and lead to another failure.
Choosing the Right Aftermarket Compressor
You don't need to go to the dealer for a quality part. High-quality aftermarket brands often meet or exceed original specifications. For the GMT800 platform, which your Avalanche is built on, several reputable brands are available. It's important to note that from 1999-2002, GM used two different compressor designs from Delphi and Denso on these trucks, so visually inspecting your original part is a good idea to ensure a match.
Brand Quality Tiers
- Premium (OEM-Equivalent): Brands like ACDelco, Delphi, and Denso are often the original equipment manufacturers for GM. Choosing a new unit from one of these brands is the safest bet for factory performance and longevity. They are known for quiet operation and durability.
- Quality Aftermarket: Brands like Four Seasons and Valeo have a solid reputation in the aftermarket. They often provide good quality and may come in kits that include the necessary accumulator and seals, which is a great value. Many professional mechanics have used Four Seasons compressors for years with good results.
- Economy: Brands like Global Parts (GPD) and other private-label "Replacement" brands offer a budget-friendly option. While they can get your A/C working again, their long-term durability may not match the premium brands. These can be a viable option if the budget is tight, but proper installation is even more critical.
Pro Tip: Buying a complete A/C kit is highly recommended. These kits typically include the compressor, accumulator/drier, orifice tube, and the required O-rings and oil. This not only saves you the hassle of sourcing parts individually but ensures you have all the mandatory replacement components for a successful and lasting repair.
Cost of Replacing Your A/C Compressor
The cost can vary significantly based on the brand you choose and whether you do the work yourself or hire a professional. Shop labor can be expensive due to the time needed to properly flush the system and recharge it.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Compressor (Part Only) | $218 - $440 |
| Shop Labor | $500 - $800+ |
| Total Professional Replacement | $720 - $1240+ |
Frequently Asked Questions
Do I have to replace other parts with the compressor?
Yes, absolutely. To ensure the longevity of your new compressor and validate its warranty, you must replace the accumulator/drier and the orifice tube. You also must flush the entire system to remove old oil and potential contaminants. Skipping this step is the number one cause of premature failure in new compressors.
Can I replace the A/C compressor myself? 🎬 Watch this step-by-step 2005 Chevy Avalanche compressor replacement walkthrough
This is a moderately difficult job for a DIY mechanic. While the compressor itself is accessible, the full job requires specialized tools, including a manifold gauge set and a vacuum pump, to evacuate and recharge the system. Also, the refrigerant must be legally recovered by a certified shop before you begin work. If you are not comfortable with these steps, it's best to leave this job to a professional.
My A/C works, but not when I'm stopped. Is it the compressor?
This is a common characteristic of GMT800 trucks. The A/C performance can be weak at idle, especially on hot days. While it can be a sign of a slightly low refrigerant charge or a tired compressor, it's often just how the system behaves. Ensuring your engine's cooling fans are working correctly can help.
Are there any recalls on the A/C system for this truck?
There are no specific recalls for the A/C compressor on the 2002-2006 Avalanche. However, GM did issue a Special Coverage Adjustment (SB-10038760-8811) for the blower motor resistor and connector, which could cause the fan to become inoperative. This would prevent air from blowing, but is a separate issue from the compressor itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89019354 1520940 1520410 10365784
Compressor Type: Varies (Denso 10S-series or Delphi HU6). Refrigerant: R134a. Oil: PAG oil. Drive: Serpentine Belt.
