Ford Escape Engine Water Pump Guide (2001-2015)
Key differences and replacement advice for all three generations of the Ford Escape.
- Engine type dictates the difficulty: 4-cylinder pumps are belt-driven and easier to replace, while the 3.0L V6 pump is chain-driven and very labor-intensive.
- For 1.6L EcoBoost engines (2013-2015), a failing water pump is a critical issue that can cause catastrophic engine failure due to coolant mixing with oil.
- Always replace related wear items like the timing belt/chain, tensioners, and thermostat when doing a difficult water pump job to save on future labor costs.
- Do not drive an Escape with a suspected bad water pump, as overheating can quickly lead to severe and costly engine damage.
Understanding Your Escape's Water Pump
The water pump in your 2001 to 2015 Ford Escape is a critical component, but its design and replacement difficulty vary significantly depending on your engine. Identifying your specific engine is the first and most important step before buying a new part.
Generation & Engine Differences
The 2001-2015 model years span three distinct generations of the Ford Escape, each with different engines and water pump setups.
- 1st Gen (2001-2007) & 2nd Gen (2008-2012) 4-Cylinder (2.0L, 2.3L, 2.5L): These water pumps are generally easier to access. They are driven by the external serpentine belt. Replacement is straightforward for a DIY mechanic with some experience. 🎬 See how to replace the pump on 2001-2007 models.
- 1st Gen (2001-2007) & 2nd Gen (2008-2012) V6 (3.0L): This is a much more difficult job. The water pump is located behind the timing cover and is driven by the engine's timing chain. 🎬 Follow this guide for the complex 3.0L V6 pump replacement. Replacement requires special tools and significant disassembly, making it a labor-intensive task often best left to a professional.
- 3rd Gen (2013-2015) 2.5L Duratec: Similar to the earlier 4-cylinder models, this pump is externally driven and relatively simple to replace. 🎬 Watch a step-by-step 2.5L water pump replacement video.
- 3rd Gen (2013-2015) 1.6L EcoBoost: This engine has a known critical issue. The water pump is driven by the timing belt. When it fails, it can leak coolant internally, which can mix with the engine oil, leading to catastrophic engine failure. Due to this risk, it is highly recommended to replace the timing belt and tensioner at the same time as the water pump. This is an advanced-level repair.
- 3rd Gen (2013-2015) 2.0L EcoBoost: This engine also has issues with coolant intrusion into the cylinders, though it may not be directly tied to the water pump in all cases. Ford has issued Technical Service Bulletins (TSBs) related to this problem.
Known Issues, Recalls, and TSBs
While there are no widespread recalls specifically for the water pump itself across all models, there are related service bulletins and recalls you should be aware of:
- NHTSA Campaign 12V431000: For 2013 Escapes with the 1.6L engine, a cylinder head plug could dislodge, causing a rapid loss of coolant and risk of fire. This is not a water pump failure but results in similar symptoms.
- TSB 19-2375 & others: Ford issued multiple TSBs for 1.5L and 2.0L EcoBoost engines (some model years starting in 2014-2017) regarding coolant intrusion into the cylinders. This can cause low coolant, white smoke, and rough running. While not always a direct water pump failure, it's a critical cooling system issue on these engines.
- Customer Satisfaction Program 21N12: This program addressed coolant intrusion issues on some 2017-2019 Escapes with the 1.5L engine, extending the warranty for a short block replacement if needed.
Choosing the Right Aftermarket Water Pump
When replacing your water pump, you have several options. The quality can vary, but a good aftermarket part can be a reliable and cost-effective choice.
| Brand Tier | Brands | Quality & Notes |
|---|---|---|
| OEM / Premium Aftermarket | Motorcraft, Gates, Dayco, Aisin | Motorcraft is the Ford OEM part and the benchmark for fit and function. Gates and Dayco are highly respected brands, especially for their kits that often include belts and tensioners. Aisin is a top-tier OEM supplier to many Japanese automakers and is known for excellent quality. |
| Quality Aftermarket | GMB, ACDelco, Beck Arnley, Saleri, Graf | GMB is a large manufacturer that supplies parts to other brands, including some OEM applications. Quality can be good, though some users report mixed experiences. ACDelco is GM's part brand, but their aftermarket line offers good quality parts for many makes. Beck Arnley focuses on sourcing parts that match the original's country of origin. Saleri and Graf are reputable European brands. |
| Economy | URO Parts, US Motor Works, Store Brands | These brands offer the lowest price point. They can be a viable option for a budget repair, but may have a shorter lifespan or less consistent quality control compared to premium brands. URO Parts and US Motor Works are common economy choices. |
Frequently Asked Questions (FAQ)
What are the most common signs of a failing water pump?
The most common symptoms are coolant leaks from the front of the engine, a whining or grinding noise that changes with engine speed, engine overheating, and steam coming from the engine bay. A visible leak may show as a puddle of green, orange, or pink fluid under your car or as a dried, crusty residue on the engine itself.
Can I drive my Escape with a bad water pump?
It is not recommended. A failing water pump cannot circulate coolant effectively, which will cause the engine to overheat. Driving an overheating engine for even a short time can lead to severe damage, including a warped cylinder head or a blown head gasket, resulting in very expensive repairs.
Is the V6 water pump really that hard to replace?
Yes, on the 3.0L V6 engines found in the 2001-2012 Escape, the water pump is driven by the timing chain. This means a mechanic has to remove many other engine components to access it, making the job significantly more complex and labor-intensive than on the 4-cylinder models where the pump is driven by the external serpentine belt.
Why is the 1.6L EcoBoost water pump a special concern?
The 1.6L EcoBoost engine's water pump is driven by the timing belt. A common failure mode for this pump is a leak from the internal seal. This allows coolant to enter the engine and mix with the oil, which can quickly lead to catastrophic engine failure. If you have a 1.6L, it is critical to address any sign of water pump failure immediately and to replace the timing belt at the same time.

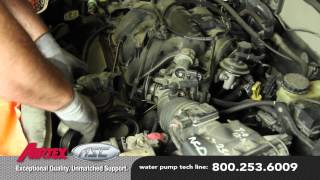

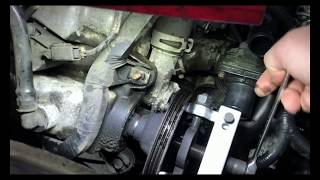

Helpful Videos
Technical Specifications

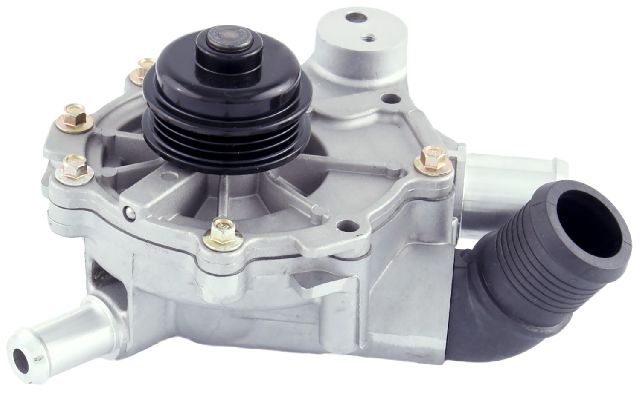

OEM Part Numbers: PW493 PW538 DS7Z8501A 6E5Z8501A
Varies significantly by engine. Externally belt-driven on 4-cylinder models (2.0L, 2.3L, 2.5L). Internally chain-driven on 3.0L V6. Timing-belt driven on 1.6L EcoBoost.
