A/C Compressor Cut-Off Switch Guide for 2001-2013 Chevrolet Silverado 2500 HD
Is your Silverado's A/C blowing warm or not working at all? The A/C cut-off switch could be the simple fix you need.
- A faulty A/C cut-off switch often mimics a failed compressor or low refrigerant; check it first.
- Replacement is a simple, 15-minute DIY job that does not require evacuating the A/C system.
- Symptoms like intermittent cooling or the A/C working for 30 minutes then stopping are classic signs of a bad low-pressure switch on these trucks.
- Aftermarket brands like Standard Ignition and Four Seasons offer reliable, cost-effective alternatives to the OEM part.
Is Your Silverado's A/C Acting Up? Check the Switches First.
If the air conditioning in your 2001-2013 Silverado 2500 HD isn't blowing cold, the problem might not be a major component like the compressor. Often, a small, inexpensive sensor called the A/C compressor cut-off switch is the culprit. These switches are known weak points, especially on the GMT800 platform (2001-2006). Before you suspect a major repair, it's worth checking these switches.
Common Symptoms of a Failing A/C Cut-Off Switch
A bad pressure switch can mimic other, more serious A/C problems. Here’s what to look for:
- A/C Blows Warm Air: The most common symptom is an A/C system that doesn't cool at all because the compressor isn't turning on. The switch fails to send the signal to engage the compressor clutch.
- Intermittent Cooling: The A/C might work for a while and then suddenly stop, or it might cycle on and off unpredictably. On older GMT800 trucks, a classic sign is the A/C working for 30-45 minutes before the lines freeze up and airflow stops, which points to a bad low-pressure switch.

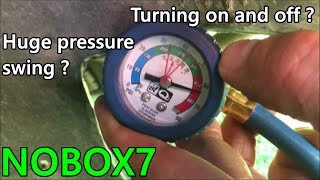

- Compressor Rapidly Cycling: You might hear the A/C compressor clutch clicking on and off every few seconds. This is often called "short cycling" and can be caused by a faulty switch or, more commonly, low refrigerant. A bad switch can't properly read the pressure, leading to erratic commands. 🎬 See how to fix a compressor that is short cycling.
Don't Mistake It for a Bad Compressor
Many owners replace their A/C compressor when the real issue is a simple pressure switch. Since the switch prevents the compressor from turning on, it's easy to misdiagnose. Always test the switch circuit first. A simple test involves jumping the two wires on the low-pressure switch connector with a paperclip for a brief moment to see if the compressor clutch engages. If it does, the switch is likely bad or the system is out of refrigerant.
Choosing the Right Aftermarket A/C Switch
For the 2001-2013 Silverado 2500 HD, the OEM part is made by ACDelco. However, several quality aftermarket brands offer reliable replacements at a lower cost. Here’s a breakdown of your options:
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard Ignition parts are known for their quality and reliability, sometimes rivaling OEM components. This is a solid choice if you prioritize durability.
- Four Seasons: As one of the most common names in aftermarket A/C parts, Four Seasons offers a good balance of quality and value. They are a dependable mid-range option for this repair.
- Global Parts Distributors (GPD): GPD is another well-known aftermarket supplier. Their parts are generally seen as a budget-friendly alternative that meets standard performance requirements.
Pro Tip: When replacing the switch, also replace the small O-ring or seal underneath it to prevent refrigerant leaks. Many new switches come with a new seal included.
Cost of Replacing an A/C Cut-Off Switch
This is one of the more affordable A/C repairs you can perform. The part itself is inexpensive, and labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $22 - $83 |
| New OEM (ACDelco) Switch | $45 - $75 |
| Shop Labor | $50 - $150 |
| Total DIY Cost | $22 - $83 |
| Total Professional Repair | $72 - $233 |
Frequently Asked Questions (FAQ)
Can I replace the A/C cut-off switch myself?
Yes, this is a very easy DIY job. The switch is located on the A/C accumulator (a silver can on the passenger side of the engine bay) or on the A/C lines. It simply unplugs and unscrews. The entire job can be done in about 10-15 minutes with a basic wrench.
🎬 Watch this step-by-step low pressure switch replacement guide.Do I need to drain the refrigerant to replace the switch?
No. On these Silverado models, the A/C pressure switches are mounted on Schrader valves, similar to a tire valve. When you unscrew the old switch, the valve will seal the system. You may hear a brief hiss of escaping refrigerant, but it will be a very small amount. You do not need to evacuate and recharge the system for this repair.
Are there any recalls or TSBs for this part?
There are no specific recalls for the A/C compressor cut-off switch on the 2001-2013 Silverado 2500 HD. While GM has issued various Technical Service Bulletins (TSBs) for A/C performance issues over the years, such as for incorrect HVAC controls on newer models or refrigerant leaks, none specifically target a widespread failure of this switch. A common issue on these trucks is often low refrigerant due to small leaks elsewhere in the system, which can present the same symptoms as a bad switch.
What's the difference between the high-pressure and low-pressure switch?
The low-pressure switch is typically on the accumulator (the larger diameter A/C line side) and protects the compressor from running with too little refrigerant. The high-pressure switch is on the high-pressure line (smaller diameter) after the compressor and protects the system from over-pressurization. The most common failure leading to a no-cool situation is the low-pressure cycling switch.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15-50156 15-51225
The A/C system on the 2001-2013 Silverado 2500 HD uses both a high-side and a low-side pressure switch. The most commonly replaced part is the low-pressure cycling switch located on the A/C accumulator. It uses a threaded connection with an underlying Schrader valve.
