Toyota Sequoia Starter Replacement Guide for 2001-2010 V8 Engines
Experiencing a 'click no-start' or dead silence? Here's what you need to know before buying a new starter.
- The starter on the 4.7L V8 (2001-2009) is under the intake manifold, making replacement extremely labor-intensive and expensive.
- Due to the high labor cost, using a top-quality brand like Denso (OEM) or Bosch is strongly recommended to avoid repeat failures.
- A single 'click' with no crank is a classic starter failure symptom, while rapid clicking usually means a weak battery.
- There are no specific recalls or TSBs for the starter motor on this generation of Sequoia.
Is Your Sequoia Starter Failing?
A bad starter is one of the most common reasons your Sequoia won't start. Before you blame the battery, look for these specific symptoms. A weak or dead battery usually causes a rapid clicking sound when you turn the key, while a bad starter often has its own unique signs.
Key Failure Symptoms:
- Single Loud Click: You turn the key and hear one loud 'CLICK' from the engine bay, but the engine doesn't crank. This often points to a failed starter solenoid or motor.
- No Sound at All: If all your lights and radio work but you get complete silence when turning the key, the starter may not be receiving the signal to engage.
- Grinding Noise: A harsh grinding sound during or after cranking means the starter gear isn't meshing correctly with the engine's flywheel. This can cause damage to the flywheel if not addressed.
- Intermittent Starting: The truck starts fine one day but refuses the next. This can be caused by worn electrical contacts inside the starter that only work when conditions are perfect.
- Slow Cranking: If the engine seems to turn over very slowly, like it's struggling, it could be a sign the starter motor is wearing out and drawing too much power. However, always have your battery tested first to rule it out.
A Critical Detail: Which Engine Do You Have?
The starter replacement job on a 2001-2010 Sequoia varies dramatically depending on the engine. Before you buy a part or get a quote, you must know if you have the 4.7L V8 or the 5.7L V8.
- 4.7L V8 (2001-2009): The starter is located deep in the engine valley, underneath the entire intake manifold. This is a very difficult, labor-intensive job that requires removing the throttle body, fuel rails, and many other components to access it. Labor costs are very high.
- 5.7L V8 (2008-2010): The starter is located on the passenger side of the engine, below the exhaust manifold. While still not an easy job, it is much more accessible than the 4.7L starter and does not require removing the intake manifold.
Because of the extreme labor involved with the 4.7L engine, it is highly recommended to use the best possible quality part to avoid doing the job twice.
Choosing the Right Aftermarket Starter
When your Sequoia's starter fails, you have a choice between several types of aftermarket parts. Given the high labor cost for the 4.7L V8, choosing a reliable part is critical.
Brand Quality Tiers

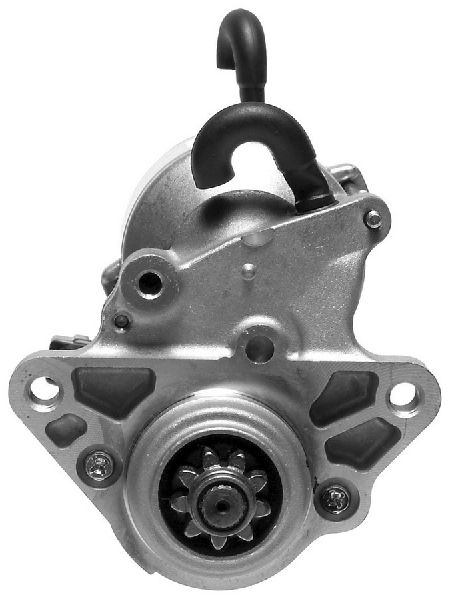

- Premium Aftermarket (Denso, Bosch): Denso is the Original Equipment Manufacturer (OEM) for Toyota, meaning they made the original starter that came in your truck. A new or factory-remanufactured Denso starter is widely considered the best option for reliability and perfect fit. Bosch is another top-tier German brand known for high-quality electrical parts that meet or exceed OEM standards. For a 4.7L Sequoia, choosing one of these two brands is a smart investment to ensure you won't have to pay for that difficult labor again anytime soon.
- Standard Aftermarket (Remy, WAI Global, BBB Industries): These brands offer a more budget-friendly option. Reviews for Remy and WAI are mixed; some users report good experiences, while others have had issues with early failures or incorrect fitment. These starters can be a reasonable choice, especially for the more accessible 5.7L engine where a potential warranty replacement isn't as daunting. However, for the 4.7L engine, the risk of a part failing prematurely could lead to another very expensive repair bill.
Cost to Replace a Toyota Sequoia Starter
Starter replacement costs are heavily influenced by the engine type due to the vast difference in labor time.
| Part/Service | Estimated Cost |
|---|---|
| Shop Labor | $550 - $800+ (Primarily for 4.7L V8) |
| New OEM (Denso) | $250 - $400 |
| New Aftermarket (Premium) | $200 - $300 |
| New Aftermarket (Standard) | $100 - $200 |
Frequently Asked Questions
Can I just replace the starter contacts or solenoid?
Yes, sometimes a 'click-no-start' issue can be fixed by replacing only the copper contacts inside the starter solenoid for a very low cost. However, because of the 8+ hours of labor required to remove the starter on the 4.7L V8, almost no mechanic will recommend this. It is far more cost-effective to install a complete new or remanufactured starter assembly to ensure all components are fresh and warrantied.
Is replacing the starter a DIY job?
For the 5.7L V8, an experienced DIY mechanic can likely tackle the job. For the 4.7L V8, it is a very advanced and difficult job that is not recommended for beginners. It involves removing the fuel system and intake manifold, which requires careful labeling of parts, specific torque sequences for reassembly, and managing fuel and coolant lines.
Are there any recalls on the 2001-2010 Sequoia starter?
No, there are no active recalls or common Technical Service Bulletins (TSBs) from Toyota or the NHTSA specifically for the starter motor on the 2001-2010 Toyota Sequoia.
Will a bad starter drain my battery?
A failing starter can draw excessive current while trying to crank, which can drain a battery quickly. However, once the starter fails completely and no longer attempts to crank, it will not drain the battery. If you have a constant battery drain, the problem is likely elsewhere in the electrical system.

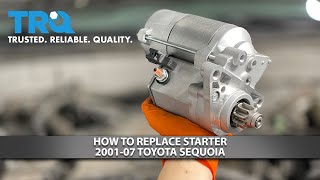

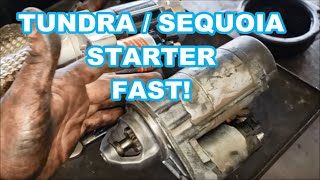

Helpful Videos
Technical Specifications
OEM Part Numbers: 28100-50090 28100-50100 28100-50101 28100-0S010 28100-0S011
Fits 4.7L 2UZ-FE and 5.7L 3UR-FE V8 engines. The 4.7L V8 typically uses a 1.4kW or 2.0kW gear reduction starter. Verify the correct part number using your vehicle's VIN.
