Ford F-250 (2001-2009) Vehicle Speed Sensor Diagnosis and Replacement Guide
Address your F-250's erratic speedometer and harsh shifting by understanding this common failure.
- An erratic speedometer and hard shifting are classic signs of a failed rear differential speed sensor.
- This is a very simple and inexpensive DIY repair that most owners can do in under 30 minutes.
- Check if your truck has had the critical cruise control deactivation switch recall (09V399000) performed to prevent a fire risk.
- If a new sensor doesn't solve the problem, inspect the wiring connector for damage before suspecting a larger issue.
Is Your F-250 Speedometer Acting Up?

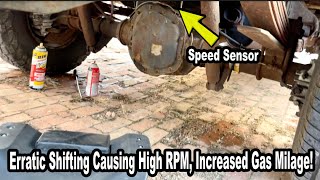

If you own a 2001-2009 Ford F-250, one of the most common issues you might face is a faulty Vehicle Speed Sensor (VSS). The typical signs are an erratic speedometer that jumps around or doesn't work at all, and harsh, unpredictable shifting from the automatic transmission. This happens 🎬 Watch: How a bad sensor causes erratic shifting issues. because the truck's computer loses the accurate speed reading it needs to function correctly. Fortunately, this is usually an easy and inexpensive part to replace yourself.
CRITICAL SAFETY RECALL: Cruise Control Switch Fire Hazard
Before addressing the VSS, it is crucial to be aware of a major safety recall (NHTSA Campaign ID: 09V399000) that affects these trucks. The cruise control deactivation switch, located on the brake master cylinder, can leak brake fluid internally. This can cause an electrical short and lead to a vehicle fire, even with the engine off. Ford's remedy was to install a fused wiring harness to prevent this. Check with a Ford dealer or use your VIN on the NHTSA website to see if your truck has had this free recall service performed.
Choosing the Right Aftermarket VSS
When replacing your VSS, you have two main choices: Original Equipment (OEM) from a dealer (Motorcraft) or an aftermarket part. For a simple sensor like this, an aftermarket part is a very popular and budget-friendly choice.
- Aftermarket (Standard Ignition, Dorman, etc.): These sensors are widely available and significantly cheaper than OEM parts. For many owners, an aftermarket sensor from a reputable brand provides a perfectly good repair. Given the low cost, it's an accessible first step in troubleshooting.
- OEM (Motorcraft): Some mechanics and owners prefer to pay more for the OEM Motorcraft sensor. The reasoning is that the original part lasted for many years, and an OEM replacement is seen as a guarantee of proper fit and long-term reliability, avoiding potential premature failure that can sometimes occur with cheaper aftermarket options.
Pro Tip: The VSS is held in by a single bolt and is located on top of the rear differential housing. It's a magnetic sensor, so don't be alarmed if the old one is covered in fine metallic particles. This is normal wear from the differential gears. While you can try cleaning it, replacement is the only reliable fix.
Cost of Replacing the Vehicle Speed Sensor
| Part Type | Price Range |
|---|---|
| New Aftermarket | $24.03 - $40.00 |
| New OEM (Motorcraft) | $50.00 - $90.00 |
| Shop Labor | $50.00 - $100.00 |
Frequently Asked Questions (FAQ)
Where is the vehicle speed sensor located on a 2001-2009 F-250?
The main vehicle speed sensor that controls the speedometer is located on the top of the rear differential. It is held in place by a single small bolt. There are other speed sensors on the transmission, but the one on the differential is the most common cause of speedometer and shifting problems.
Can I replace the VSS myself?
Yes, this is a very easy DIY job. It typically requires only basic hand tools to remove one bolt and the electrical connector. The entire process can usually be completed in under 30 minutes.
🎬 See this step-by-step VSS replacement walkthrough on a Super Duty.Is the ABS sensor the same as the vehicle speed sensor?
On this truck, yes. The sensor on the rear differential provides the speed signal for both the Anti-lock Braking System (ABS) and the speedometer. A failure can trigger the ABS warning light in addition to other symptoms.
What happens if I don't replace a bad VSS?
You can continue to drive the truck, but you will have an inaccurate or non-working speedometer, which can be a safety and legal issue. The transmission will also continue to shift harshly and unpredictably, which can cause premature wear on transmission components over time.
My speedometer still doesn't work after replacing the sensor. What now?
If a new sensor doesn't fix the issue, check the wiring and the pigtail connector that plugs into the sensor. These can become brittle and break over time, causing a loss of signal. 🎬 Watch: Troubleshooting tips for sensor wiring and signal loss. In rarer cases, the problem could be with the instrument cluster (speedometer gauge) itself or the Programmable Speedometer/Odometer Module (PSOM) in older models.
Helpful Videos
Technical Specifications
OEM Part Numbers: F85Z-9E731-AB DY1123
Typically a 2-pin magnetic sensor that mounts on the top of the rear differential housing.
