Chevrolet Malibu Starter Motor Replacement Guide for 2001-2007 Models
If your 2001-2007 Malibu won't start, the problem might not be what you think.
- Before replacing your starter, check for a flashing 'SECURITY' light; it's likely a Passlock system issue, not the starter.
- The starter replacement is DIY-friendly, located at the front of the engine and held by two main bolts.
- Ensure you buy the correct starter for your engine, as the 2.2L I4 and the V6 engines use different parts.
- A new aftermarket starter offers the best value for this vehicle compared to more expensive remanufactured OEM options.
Is It Really Your Malibu's Starter?
Before you buy a new starter for your 2001-2007 Chevrolet Malibu, you need to check for two very common problems that can mimic starter failure. Many owners have replaced their starter only to find the real issue was something else.
Check This First: The Passlock Anti-Theft System
A very common failure on this generation of Malibu is the GM Passlock anti-theft system. When this system fails, it tells the car it's being stolen and prevents it from starting, even though the battery and starter are perfectly fine.
Symptom: You turn the key, but the engine won't crank, and you see a flashing "SECURITY" or "THEFT" light on your dashboard. A bad starter will NOT cause this light to flash.
Temporary Fix: Try turning the key to the "ON" position (but not to "START") and leave it there for 10-15 minutes. The security light should stop flashing and turn solid. Then, turn the key off, wait 20 seconds, and try to start the car. This often resets the system and will get you going, but the problem will likely happen again until the 🎬 Watch this video to see the Passlock reset procedure. Passlock sensor in the ignition lock cylinder is replaced.
Symptoms of a Failing Starter Motor
If the Passlock system isn't the issue, your starter motor might be the culprit. Here are the classic signs of a bad starter:
🎬 Listen to the different sounds a failing starter makes here.- Single, Loud Click: You turn the key and hear one loud "CLICK" from the engine bay, but the engine doesn't turn over. This often means the starter solenoid is engaging but the motor itself isn't spinning.
- No Sound at All: You turn the key and nothing happens. This could be a dead battery, but if the battery is good, it points to a failed starter or a problem in the starting circuit.
- Slow, Labored Cranking: The engine turns over very slowly, as if the battery is weak, even when the battery is fully charged. This indicates the starter motor is wearing out and drawing too much power.
- Grinding or Whirring Noise: If you hear a grinding noise when trying to start the car, or a whirring sound after the engine has started, it could be a problem with the starter gear not engaging or disengaging properly.
- Intermittent Starting: The car starts fine sometimes, and other times it won't. This can be a sign of worn electrical contacts inside the starter.
Choosing the Right Aftermarket Starter
For a vehicle of this age, a new aftermarket starter provides excellent value. OEM starters from the dealer are often remanufactured and come at a higher price.
When shopping for a new aftermarket starter, you'll see brands like ACDelco and MPA. ACDelco is GM's own parts brand and offers different quality tiers. MPA is a large, established aftermarket manufacturer. Both are common choices for this Malibu.
Pro Tip: The most important step is to get the correct starter for your specific engine. The 2001-2007 Malibu came with a 2.2L 4-cylinder engine and V6 engines (3.1L and 3.5L). These use different starters. Always verify the part fits your exact year and engine before purchasing.
Estimated Replacement Costs
The cost to replace a starter depends on who does the work and the type of part used. The job is straightforward enough for many DIYers to tackle at home.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $107 - $295 |
| Shop Labor | $125 - $190 |
| Total Professional Replacement | $325 - $860 |
Costs are estimates and can vary by location and the specific part chosen.
Frequently Asked Questions (FAQ)
Is it hard to replace the starter on a 2001-2007 Malibu?
No, it is considered a relatively easy job. The starter is located on the front of the engine and is accessible from underneath the car. It is held on by two bolts, making it a good project for a DIYer 🎬 See a step-by-step walkthrough of the starter replacement process. with basic tools. The job typically takes between 1 and 2 hours.
Was there a recall on the starter for this Malibu?
There were no recalls for the starter motor itself. However, there was a major recall for the ignition switch (GM recall 14350) which can cause starting and running issues. Additionally, the well-documented problems with the Passlock anti-theft system are often mistaken for starter failure.
What tools are needed to change the starter?
You will need basic hand tools, including a ratchet and socket set. The main bolts are typically 15mm, the electrical connections use 8mm and 13mm nuts, and a small plastic cover uses 10mm bolts. You will also need a jack and jack stands to safely lift the vehicle.
Can a bad battery seem like a bad starter?
Yes. A weak or dead battery is the most common reason a car won't start. Always test your battery and check for clean, tight battery cable connections before replacing the starter. Most auto parts stores will test your battery for free.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12563764 12570255 12577949 12593764 89017714 6491 6493

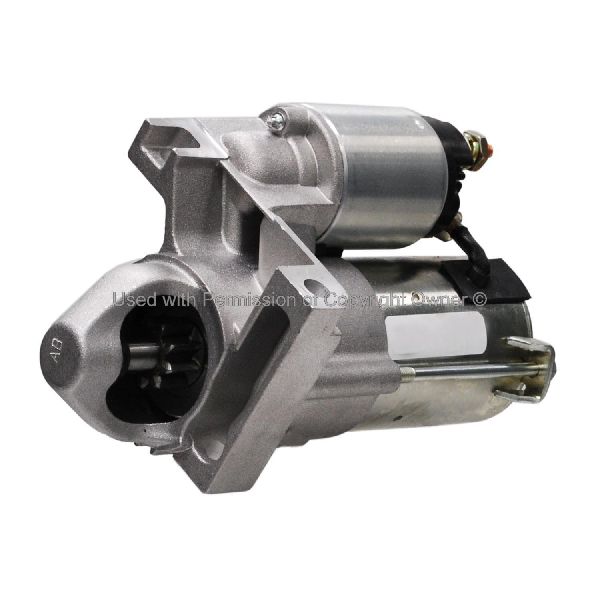

Varies by engine. Most V6 models use a 1.2kW or 1.4kW PMGR (Permanent Magnet Gear Reduction) starter with a 9-tooth pinion gear and clockwise rotation. The 2.2L engine uses a different model. Always confirm fitment with your vehicle's specific engine.
