A Guide to the 2001-2006 Chevrolet Silverado 1500 HD Fuel Pump Module Assembly
Everything you need to know before replacing the fuel pump on your Silverado 1500 HD.
- The most common failure is the fuel level sensor, causing an erratic gauge, but the entire module must be replaced.
- Before replacing the pump, check the ground wire on the driver's side frame rail for corrosion, as this can mimic pump failure.
- Lifting the truck bed is often easier than dropping the fuel tank for replacement.
- Using a quality brand like Delphi, Bosch, or ACDelco is strongly recommended to avoid repeating this labor-intensive job.
Is Your Silverado 1500 HD Fuel Pump Failing?
A bad fuel pump can cause serious problems, from a simple annoyance to leaving you stranded. The most common issue on these trucks isn't always the pump itself, but the fuel level sensor that's part of the assembly. This sensor fails often, causing the fuel gauge to read empty or move around randomly. However, the pump motor can also wear out, leading to more severe engine performance issues.
CHECK THIS FIRST: The Fuel Pump Ground Wire
Before you buy a new pump, check the fuel pump ground wire. A corroded or broken ground wire is a very common problem on these trucks and will stop the pump from running, even if the pump is good. The wire is attached to the frame rail on the driver's side, near the front wheel. A quick inspection and cleaning could save you hundreds of dollars.
Choosing the Right Aftermarket Fuel Pump
Replacing the fuel pump is a big job, so you want to do it once with a quality part. Aftermarket brands offer a wide range of quality and price. Here’s how they generally stack up for your Silverado HD.
Tier 1: OEM-Quality Brands
These brands are known to be original equipment (OE) suppliers for GM or have a reputation for matching that quality. They are the most reliable choice for longevity.

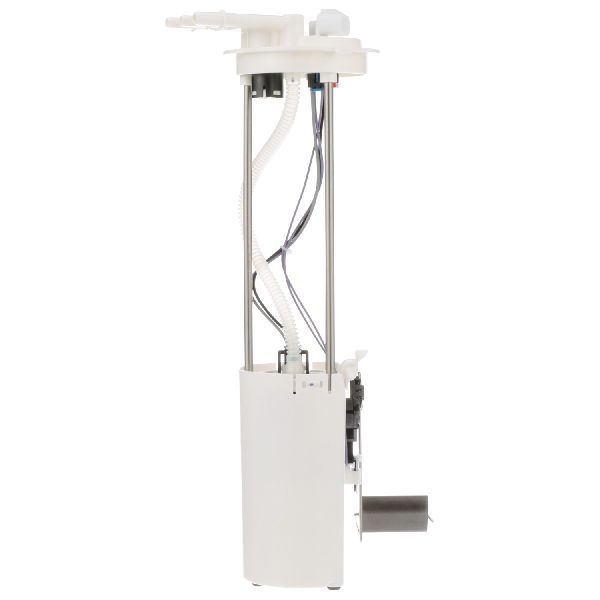

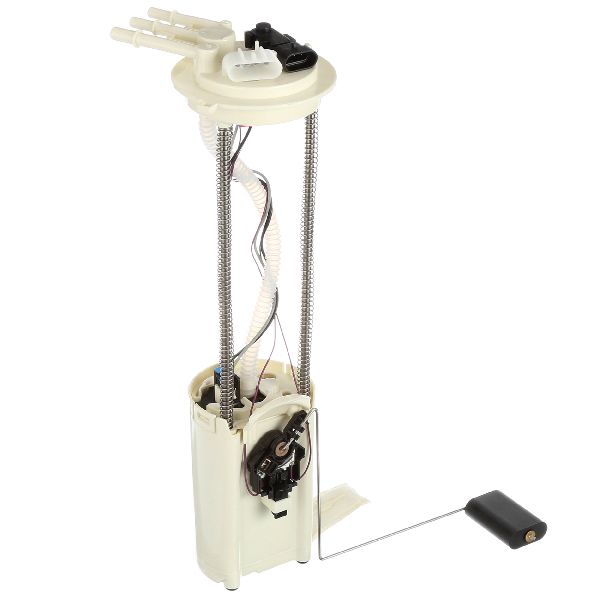

- Delphi: Often the original part manufacturer for GM. Delphi is highly recommended by mechanics for a direct-fit, long-lasting replacement.
- Bosch: A top-tier global parts manufacturer with a strong reputation for quality fuel systems. Some sources suggest Bosch makes the pumps for ACDelco.
- ACDelco: This is GM's own parts brand. While you may be buying an aftermarket ACDelco part, they are engineered to GM's specifications.
Tier 2: Reliable Mid-Range Brands
These brands offer a good balance of quality and cost. They are a solid choice if an OEM-level part is out of your budget.
- Spectra Premium: A well-known aftermarket brand that is often considered a durable and reliable option.
- Carter: With a long history in fuel systems, Carter pumps are generally seen as reliable and quiet.
- GMB: GMB manufactures parts for both OEM and the aftermarket and is a known name in fuel pumps.
Tier 3: Budget-Friendly Options
These brands can get your truck running for a lower initial cost, but may have a higher risk of premature failure. Given the labor involved in a replacement, many owners and mechanics advise against the cheapest options.

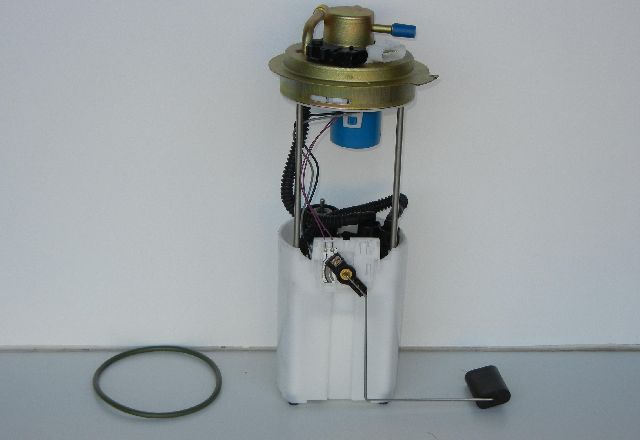

- AutoBest, Dorman, URO Parts, US Motor Works: Reviews for budget-focused brands are often mixed. While they offer a low price, some users report early failures or fitment issues. URO Parts, for example, is often recommended for simple components but seen as a risk for critical electronic parts like a fuel pump.
Pro Tip: Replace the Fuel Filter
Whenever you replace your fuel pump, you should also install a new fuel filter. A clogged filter can strain the new pump, leading to a shorter lifespan. It's a cheap and easy step to protect your investment.
Cost of Replacing Your Fuel Pump Module
The total cost includes the part itself and labor if you have a shop do the work. Labor typically runs 2-3 hours.
| Item | Estimated Cost |
|---|---|
| New OEM (ACDelco/GM Genuine) | $450 - $700+ |
| New Aftermarket (Tier 1) | $250 - $525 |
| New Aftermarket (Mid-Range/Budget) | $80 - $250 |
| Shop Labor | $250 - $500 |
Frequently Asked Questions (FAQ)
My fuel gauge is broken. Do I have to replace the whole assembly?
Yes. The fuel level sending unit is integrated into the fuel pump module. While it's the most common part to fail, it is not typically sold separately. Replacing the entire module is the standard repair and ensures the pump motor and other components are also new.
Should I lift the truck bed or drop the fuel tank to replace the pump?
Both methods work, but most mechanics and experienced DIYers prefer to lift the bed. It provides clear, open access to the top of the fuel tank without the danger and difficulty of handling a heavy, fuel-filled tank 🎬 See how to replace the pump by lifting the bed. underneath the truck.
Is there a recall on the fuel pump for my 2001-2006 Silverado 1500 HD?
There are no major recalls specifically for the fuel pump module itself on the 2001-2006 Silverado 1500 HD. However, there was a safety recall (GM #05027) for the fuel pump's wiring harness connector on similar 2000-2001 GM SUVs due to overheating. This can cause similar symptoms, including a no-start condition or erratic fuel gauge. It's wise to inspect the wiring connector at the pump for any signs of melting or damage.
How do I make my new fuel pump last longer?
The electric motor in the pump is cooled by the fuel in the tank. To extend its life, try to avoid regularly running your truck below a quarter tank of gas. This ensures the pump stays submerged and cool. Also, always replace the fuel filter when you install a new pump.
Helpful Videos
Technical Specifications
OEM Part Numbers: MU1415
Required Fuel Pressure: 55-62 PSI. The assembly is an in-tank design that includes the pump, fuel sending unit, and strainer. The system on later models (approx. 2004+) is a returnless design.
