Chevrolet Silverado 1500 A/C Actuator Guide for 2000-2013 Models
Fix your Silverado's clicking dashboard and climate control problems by understanding and replacing the right A/C actuator.
- The most common sign of failure is a clicking noise from the dash, caused by broken plastic gears inside the actuator.
- Your Silverado has multiple actuators; you must identify the correct failed part before ordering a replacement.
- For this vehicle's age, a new aftermarket actuator offers excellent value compared to the more expensive OEM part.
- Replacement difficulty varies from very easy (under the glove box) to very hard (deep in the dash); always perform the recalibration procedure after installation.
Is Your Silverado's Dashboard Clicking?
A repetitive clicking or knocking sound coming from under the dash is the most common sign of a failing A/C actuator in a 2000-2013 Silverado. This noise, often heard for several seconds after starting the truck or changing temperature settings, is caused by broken plastic gears inside the actuator motor as it tries and fails to move a door.
Common Failure Symptoms
- Clicking or Ticking Noises: A rhythmic clicking from behind the glove box or center dash area.
- Incorrect Air Temperature: Air blows only hot or only cold, and doesn't respond to temperature changes. On dual-zone systems, one side might be hot while the other is cold.
- Wrong Airflow Direction: The system is stuck on one setting, like defrost, and won't switch to the face or floor vents.
- Stuck on Recirculation: You can't switch between fresh and recirculated cabin air.
Finding the Right Aftermarket Part
For a vehicle in the 2000-2013 year range, a new aftermarket A/C actuator provides a reliable and cost-effective solution. OEM parts from the dealer are available but are significantly more expensive. Aftermarket brands like Replacement are designed to be direct-fit substitutes for the original part, offering similar form and function without the high cost of an OEM part. Given that the original parts commonly fail due to plastic gears, a new aftermarket part is a practical and popular repair choice for Silverado owners.
Which Actuator Is It? Your Truck Has More Than One!
Your Silverado has multiple actuators. Trucks with dual-zone climate control can have up to four or five. Before ordering a part, you must identify which specific actuator has failed. The most common failure is the passenger-side blend door actuator, located behind the glove box.
Pro Tip: Locating the Bad Actuator
With the engine off but the key in the 'On' position, have a helper change the HVAC settings (temperature, mode, recirculation) one by one. Listen for the clicking noise and place your hand on the different actuators. You can often feel the vibration or clicking in the failed part, confirming which one needs to be replaced.
Installation and Recalibration
Replacing an A/C actuator can be simple or very difficult, depending on its location. The passenger-side blend door actuator is generally easy to access by removing the lower dash panel. However, the driver-side actuator or the mode door actuator can be buried deep in the dash, sometimes requiring removal of the center console or other components, making the job much harder.
A recalibration is required after replacement. This allows the HVAC control module to learn the new actuator's limits. The common procedure is:
- With the ignition OFF, install the new actuator and connect its wiring harness.
- Disconnect the vehicle's battery or remove the specific HVAC fuse from the fuse box for at least 60 seconds.
- Reconnect the power.
- Turn the ignition ON (do not start the engine) and wait for 1-2 minutes without touching any HVAC controls. You may hear the system moving and adjusting as it calibrates. 🎬 See a demonstration of the GM HVAC recalibration process here.
Frequently Asked Questions
How many A/C actuators does my Silverado have?
It depends on your truck's options. A base model with single-zone manual A/C may have only two or three. A truck with dual-zone automatic climate control can have four or more: one for the driver's side temperature, one for the passenger's side temperature, one for the mode door, and one for the recirculation door.
Can I replace the A/C actuator myself?

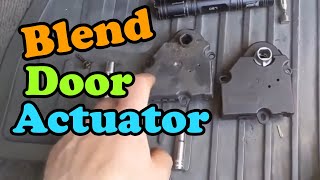

For some locations, yes. The actuator located behind the glove box is a common DIY repair that requires basic hand tools and takes less than an hour. However, actuators located higher in the dash or on the driver's side can be extremely difficult to access and may be better left to a professional mechanic. 🎬 Watch this DIY walkthrough for replacing the left blend door actuator. Watch a video for your specific year and actuator location before starting.
What is the difference between a blend door and a mode door actuator?
A blend door actuator controls temperature by mixing hot air from the heater core with cold air from the A/C evaporator. A mode door actuator controls the direction of airflow, sending it to the defrost, dash vents, or floor vents.
Do I need any special tools?
For the most common replacements, you will need a small socket set, specifically 5.5mm and 7mm sockets. A small ratchet or a finger ratchet is very helpful for the tight spaces you'll be working in.

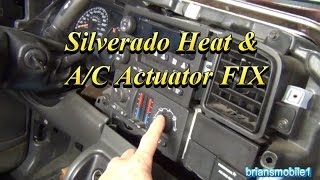

Helpful Videos
Technical Specifications
OEM Part Numbers: 89018365 604-106 52402588 16163982 52474795 89018373
This is a small electric motor with plastic gears that controls an HVAC door. The number of electrical pins and mounting points must match the original part. Multiple different actuators are used in one vehicle.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
