Toyota Tundra Starter and Fuel Pump Relay Guide (2000-2008)
Troubleshoot common starting and running issues by understanding your Tundra's most critical relays.
- A 'crank, no start' symptom on a 2000-2008 Tundra usually points to a bad fuel pump relay, not the starter relay.
- Use the simple 'relay swap test' with an identical relay (like the horn's) to diagnose a bad relay for free before buying a new part.
- Aftermarket relays are a cost-effective solution for this repair, as the part is simple and extremely easy to access and replace.
- No recalls or TSBs have been issued specifically for starter or fuel pump relays on this Tundra generation.
Is a Bad Relay Causing Your Tundra Problems?
If your 2000-2008 Toyota Tundra cranks but won't start, or if it stalls unexpectedly, a faulty relay is a likely culprit. These small electrical components are essential for powering key systems, but they can wear out over time. The two main relays that cause headaches for first-generation Tundra owners are the Starter Relay and the Fuel Pump Relay. Fortunately, diagnosing and replacing them is one of the easiest and cheapest repairs you can perform.
Symptoms of a Failing Tundra Relay
While both relays can cause a no-start condition, their failure symptoms can differ slightly:
- Bad Starter Relay: The most common symptom is turning the key and getting nothing, or just a single click. The engine will not crank over at all. In rare cases, the relay can get stuck in the 'on' position, causing the starter to continue running after the engine has started or even attempt to start the truck with no key in the ignition.
- Bad Fuel Pump Relay: Your truck will crank normally, but it will not fire up and run because it isn't getting fuel. Another key symptom is the engine stalling suddenly while driving, as the relay cuts power to the fuel pump. You might also notice the engine hesitating or running rough before it fails completely.
Pro Tip: The Relay Swap Test
The easiest way to diagnose a bad relay is to perform a swap test. Your Tundra's fuse box, located in the engine bay behind the battery, contains several identical relays for different systems (like the horn or fog lamps). The diagram on the fuse box lid will help you identify them. Simply swap the suspect relay (i.e., the starter relay) with a known good one (i.e., the horn relay). If your truck starts, you've found the bad relay. If the horn now doesn't work, that confirms it. This test costs nothing and takes only a few minutes.
Choosing the Right Aftermarket Relay
When shopping for a replacement, you'll find both OEM (Original Equipment Manufacturer) Toyota parts and more affordable aftermarket options.
- OEM Toyota Relays: These are identical to the part your Tundra was built with. They guarantee a perfect fit and are made to Toyota's quality standards. However, they come at a premium price.
- Aftermarket Relays (e.g., 'Replacement' brand): Aftermarket brands offer a significant cost saving, often costing less than a quarter of the price of an OEM part. For a simple, plug-in component like a relay, many owners find that a quality aftermarket part provides reliable performance for a much lower price. Given the low cost and ease of replacement, an aftermarket relay is a practical choice for most owners.
Known Issues for 2000-2008 Tundras
While there are no specific recalls or Technical Service Bulletins (TSBs) from Toyota for the starter or fuel pump relays on this generation, the first-gen Tundra did have notable recalls for frame rust, lower ball joints, and airbag inflators. These issues are unrelated to the vehicle's relay systems.
Cost of Replacing a Toyota Tundra Relay (2000-2008)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Relay | $18 - $20 |
| New OEM Toyota Relay | $75 - $115 |
| Shop Labor | $37 - $55 |
Note: Costs are estimates and may vary based on your location and the specific retailer. The repair is highly suitable for DIY.
Frequently Asked Questions
Where are the relays located on a 2000-2008 Tundra?

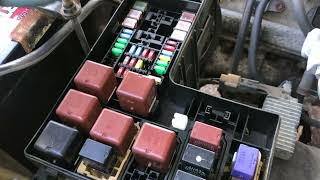

The main relays, including the starter and fuel pump relays, are in the fuse and relay box in the engine compartment. It is a black box located on the driver's side, right behind the battery.
My truck cranks but won't start. Is it the starter relay or fuel pump relay?
If the engine is cranking (turning over), the starter relay is likely working correctly. A "crank, no start" issue points towards a fuel system problem, making the fuel pump relay the primary suspect. You should not hear the fuel pump hum for a second or two when you first turn the key to the 'ON' position if its relay has failed.
Can I use a relay from a different spot to test my starter?
Yes. Many of the small, box-shaped relays in the fuse box are interchangeable. You can use a relay from a non-essential system like the horn to test the starter or fuel pump circuit. Always check the diagram on the fuse box lid to ensure you are swapping relays with the same part number or configuration.
Is it difficult to replace a relay myself?
No, this is one of the easiest repairs you can do. It requires no tools. Simply locate the relay in the fuse box, pull the old one straight out, and push the new one firmly into place. The entire process takes less than five minutes.
Helpful Videos
Technical Specifications
OEM Part Numbers: 28300-10020 90987-02027 90080-87026 28300-0A010
Most common relays in the 2000-2008 Tundra are 4-pin, 12V DC relays. Amperage ratings can vary, but many are around 20A or 40A. Always verify the configuration on the original part or fuse box diagram before purchasing a replacement.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
