Chevrolet W3500 Tiltmaster A/C Receiver Drier Replacement Guide (2000-2007)
Keep your work truck's A/C blowing cold by understanding this critical, but often overlooked, part.
- The A/C receiver drier MUST be replaced any time the A/C system is opened for service, such as a compressor or hose replacement.
- Replacement is not a DIY task and requires specialized equipment to evacuate and recharge the system correctly.
- A failing drier can cause symptoms like poor cooling, foggy windows, and rattling noises. A rattling noise is critical and should be addressed immediately.
- The Chevrolet W3500 Tiltmaster is a rebadged Isuzu NPR, and parts are often interchangeable or listed under the Isuzu name.
Is Your W3500 Tiltmaster's A/C Failing? Check the Receiver Drier.
If the air conditioning in your work truck isn't cooling like it used to, a failing A/C receiver drier could be the problem. This small canister is a vital part of your truck's A/C system. Because the Chevrolet W3500 Tiltmaster is a rebadged Isuzu NPR, information and parts for the Isuzu NPR often apply directly to your truck.

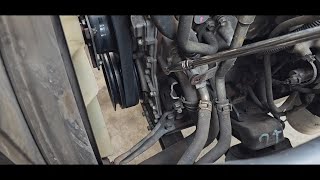

🎬 Watch this guide on diagnosing Isuzu NPR A/C problemsThe #1 Rule of A/C Repair
The A/C receiver drier must be replaced any time the A/C system is opened to the air. The desiccant material inside absorbs moisture from the atmosphere almost instantly. Once it's saturated, it can no longer protect your system. Most warranties for new A/C compressors require you to replace the drier to be valid.
Symptoms of a Failing A/C Receiver Drier
- Poor Cooling Performance: This is the most common symptom. 🎬 Learn how to diagnose A/C cooling issues on commercial trucks A clogged drier restricts the flow of refrigerant, so your A/C won't cool the cab effectively.
- Foggy Windows: If you have trouble clearing fog from the inside of your windshield, it could mean there's too much moisture in the A/C system that the saturated drier can't remove.
- Musty or Moldy Smell: When the drier fails to remove moisture, it can allow mold and mildew to grow in the dark, damp A/C system, creating a foul odor from the vents.
- Rattling Noises: A rattling sound could mean the desiccant bag inside the drier has broken. This is a critical problem, as the desiccant beads can travel through the system and cause major blockages and damage.
- Visible Frost: You might see frost or ice forming on the drier canister or its lines. This indicates a severe internal clog is causing a rapid pressure and temperature drop.
Choosing the Right Aftermarket Part
For a part like the receiver drier, which is a mandatory replacement item during most A/C repairs, an aftermarket brand provides excellent value. The success of the repair depends more on proper installation procedure—like evacuating and recharging the system—than 🎬 See how to properly vacuum down and recharge an A/C system on the brand of the drier itself.
Brand Focus: Global Parts (GPD)
Global Parts is a common aftermarket brand that manufactures A/C components. Their receiver driers are designed to meet or exceed original equipment (OE) specifications for fit and function and contain quality desiccant material. For a disposable part like a drier, GPD is a reliable and cost-effective choice for your W3500 Tiltmaster, provided the rest of the A/C service is performed correctly.
Known Issues, Recalls, and Service Bulletins
A search of the National Highway Traffic Safety Administration (NHTSA) database did not find any specific recalls or technical service bulletins (TSBs) for the A/C receiver drier on the 2000-2007 Chevrolet W3500 Tiltmaster. A/C components are generally considered wear-and-tear items. No widespread, vehicle-specific problems related to this part were found in forum discussions.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Global Parts) | $22.90 |
| Shop Labor & Recharge | $250 - $450 |
| Total Estimated Cost | $273 - $473 |
Note: Labor costs for commercial trucks can range from $100 to $200 per hour. Prices are estimates and may vary by location and shop.
Frequently Asked Questions
Can I replace the A/C receiver drier myself?
This is not a recommended DIY job. Replacing the drier requires specialized equipment to safely recover the old refrigerant, pull a deep vacuum on the system to remove all moisture, and recharge it with the exact amount of new refrigerant and oil. Attempting this without the right tools will result in poor A/C performance and likely damage to other components.
Why is it so important to replace the drier during other A/C repairs?
The moment the A/C system is opened, the desiccant inside the old drier becomes saturated with atmospheric moisture. Re-using it would introduce that moisture into the freshly repaired system, leading to corrosion and repeat failure of expensive parts like the new compressor. Not replacing the drier will also void the warranty on most new A/C compressors.
Where is the receiver drier located on the W3500 Tiltmaster?
The receiver drier is a small canister located in the high-pressure section of the A/C system, typically in the plumbing between the condenser outlet and the expansion valve. On many of these trucks, it is mounted near the front grille.
Is there a difference between a receiver drier and an accumulator?
Yes. A receiver drier is used on A/C systems that have an expansion valve. An accumulator is used on systems with an orifice tube. They perform similar functions but are located on opposite sides of the system (drier on the high-pressure side, accumulator on the low-pressure side). Your W3500 Tiltmaster uses a receiver drier.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8-97366-991-0
Pad Fittings
We Have This Part in Stock
