A Guide to Replacing Fuel Injectors on the 2000-2006 Lincoln LS
Solving rough idle and misfires in your Lincoln LS often points to the fuel injectors.
- First, rule out bad coil-on-plugs (COPs), a very common issue on the LS with similar symptoms.
- Always replace fuel injectors as a complete set to ensure balanced engine performance.
- The V8 engine requires removing the intake manifold, making the job much more difficult and costly than on the V6.
- Bosch is a trusted OEM-quality brand for new replacement injectors.
Is It Your Fuel Injector or a Bad Coil?
Before you replace your fuel injectors, it's important to know a common issue with the Lincoln LS: bad coil-on-plugs (COPs). The symptoms of a failing coil are nearly identical to a bad injector, including engine misfires (P0300-P0308 codes), rough idling, and hesitation. Since coils are a frequent failure point on this car, it's a good idea to rule them out first. A simple diagnostic trick is to swap the coil from the misfiring cylinder with a coil from a good cylinder. If the misfire code follows the coil to the new cylinder, the coil is the problem, not the injector.

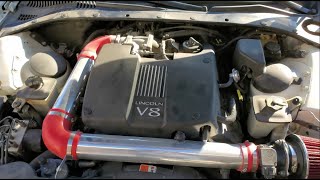

🎬 Watch: How to swap and replace a bad ignition coil.Signs of a Failing Fuel Injector
If you've ruled out the coils, you may have a fuel injector problem. Over time, injectors can get clogged with fuel deposits or fail electronically. Symptoms include:

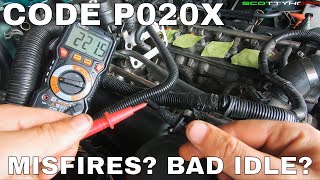

🎬 See how to test fuel injector resistance with a multimeter.- Engine Misfires: The engine stumbles or hesitates, and the check engine light comes on.
- Rough Idle: The car shakes or vibrates when stopped.
- Poor Fuel Economy: You're filling up the gas tank more often than usual.
- Hard Starting: The engine takes longer to crank before it starts.
- Fuel Smell: A leaking injector can create a raw gasoline smell around the engine.
V6 vs. V8 Engine Differences
The job of replacing fuel injectors is very different between the two Lincoln LS engines. On the 3.0L V6, the fuel rail and injectors are relatively accessible. On the 3.9L V8, the intake manifold sits on top of the fuel rail, and it must be removed to access the injectors. This adds significant time and complexity to the job.
Choosing the Right Aftermarket Fuel Injector
When buying new aftermarket injectors, quality matters for performance and longevity. It is highly recommended to replace all injectors at once to ensure they are flow-matched, providing balanced fuel delivery to each cylinder. Here’s a breakdown of available brand tiers:
- Top Tier (OEM Quality): Brands like Bosch are often the original equipment manufacturer for parts like these. Choosing a new Bosch injector generally ensures you get a part that meets or exceeds the original factory specifications for fit and performance.
- Mid Tier (Quality Aftermarket): Standard Ignition (also known as Standard Motor Products or SMP) is a reputable aftermarket manufacturer that produces new parts, not remanufactured ones. They offer a reliable alternative to OEM without the higher price tag.
- Remanufactured: Brands like GBR Fuel Injection specialize in remanufacturing original injectors. This involves cleaning, testing, and replacing worn components. While this is the most budget-friendly option, the quality can be less consistent than a brand-new part. For a part this critical, many owners prefer the peace of mind that comes with a new injector.
Pro Tip: When replacing your injectors, it's a good idea to also buy new O-rings. These small rubber seals prevent fuel leaks and are essential for a safe installation. Most new injectors come with them, but always check. Lubricate the new O-rings with a little clean engine oil before installation to prevent tearing.
Cost of Replacing Lincoln LS Fuel Injectors
| Part Type | Cost per Injector (Part Only) |
|---|---|
| New OEM | $75 - $160 |
| New Aftermarket | $56 - $153 |
| Remanufactured | $40 - $80 |
Note: Prices are estimates and can vary by brand and retailer. Labor costs are additional.
Frequently Asked Questions
Should I replace one bad injector or the whole set?
It's best practice to replace all six or eight injectors at the same time. Because injectors wear together, if one has failed, others are likely not far behind. Replacing them as a set ensures each cylinder gets the same amount of fuel, which is critical for a smooth-running engine.
Is replacing the fuel injectors a DIY job?
For the 3.0L V6, it is a manageable DIY job for someone with moderate mechanical experience. For the 3.9L V8, it is much more advanced due to the need to remove the intake manifold. If you are not comfortable with that level of work, it is best to leave it to a professional mechanic.
Are there any recalls for the 2000-2006 Lincoln LS fuel injectors?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no open recalls or specific technical service bulletins (TSBs) for fuel injectors on the 2000-2006 Lincoln LS. Recalls you may see online are for newer Ford and Lincoln models with different engine designs.
What tools do I need to replace the injectors?
You will need a standard set of mechanic's tools, including socket wrenches and pliers. You will also need a special Ford fuel line disconnect tool to safely detach the fuel line from the fuel rail. These are inexpensive and available at most auto parts stores.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3W4Z-9F593-AA (V6, 2003-05) XW4Z-9F593-CA (V8, 2000-02) 3W4Z-9F593-AB (V8, 2003-06) 6W4Z-9F593-AA (V8, 2003-06) 3W4E-A7A (V6, 2003-05)
Top-fed, port fuel injection. O-rings at the top and bottom for sealing. Specific flow rates for V6 and V8 models.
