A Mechanic's Guide to the 1999-2007 Cadillac Escalade Ambient Air Temperature Sensor
Is your Escalade's A/C acting up or showing the wrong outside temperature? Your ambient air temperature sensor is the likely culprit.
- A faulty sensor is the most common cause of incorrect outside temperature readings and erratic automatic A/C operation.
- Replacement is very easy for a DIYer, requiring no special tools and taking less than 30 minutes.
- Quality aftermarket brands like Standard Ignition and Walker Products offer a reliable and cost-effective alternative to OEM parts.
- The vehicle is safe to drive with a bad sensor, but comfort features will be compromised.
Is Your Escalade's Temperature Reading Wrong?
A common failure on the 1999-2007 Cadillac Escalade is the ambient air temperature sensor. When this sensor goes bad, it can cause confusing problems. You might see a temperature reading on your dash that is obviously wrong, like -40°F on a summer day. Or, your automatic climate control might blow warm air when you want cold, or vice versa. This happens because the system relies on the sensor's reading to make decisions.
Symptoms of a Failing Sensor
- Incorrect Outside Temperature Display: The most obvious sign is a temperature reading on your dash or mirror that is stuck or clearly inaccurate.
- Automatic A/C Not Working: The 'Auto' setting on your climate control may not function correctly. It might not cool the cabin on a hot day because the car thinks it's already cold outside.
- Inconsistent A/C Performance: The air conditioning might blow cold, then warm, or the fan speed might change without reason as the system tries to adjust to faulty temperature data.
- Check Engine Light: In some cases, a failed sensor can trigger a Check Engine Light. Common trouble codes include P0070, P0071, P0072, and P0073. 🎬 See how to test and fix the P0073 trouble code.
A Note on Temperature Updates
According to a GM service bulletin for similar vehicles, the outside temperature display is designed to update slowly. This prevents heat from the engine or pavement from causing a false high reading while idling. The vehicle may need to be driven at a speed over 20 mph for several minutes before the display updates to the current ambient temperature. This is normal operation and not a sign of a bad sensor.
Choosing the Right Aftermarket Sensor
For a simple sensor like this, an aftermarket part offers excellent value compared to a dealership part. The quality of aftermarket electronics has improved significantly, and reputable brands provide reliable, long-lasting components. Here’s a look at the available brands.
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard Ignition parts are known for their quality, which often meets or exceeds original equipment (OE) specs. They are a trusted choice for sensors and electronics.
- Walker Products: With a long history dating back to 1946, Walker is an ISO-certified manufacturer that produces a wide range of engine sensors. They are a solid, reliable mid-range option that provides good performance for the price.
- Global Parts Distributors (GPD): GPD is a specialist in automotive A/C and heating systems. While they offer various sensors, their core expertise is in the climate control system this part supports, making them a knowledgeable and budget-friendly choice.
Ultimately, for a 1999-2007 Escalade, a sensor from any of these established aftermarket brands will perform reliably and restore proper function to your 🎬 Watch this to fix missing temperature readings and A/C issues. climate control and temperature display.
Cost of Replacing the Ambient Air Temperature Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $10 - $30 |
| New Aftermarket | $10 - $72 |
| Shop Labor | $60 - $80 |
DIY Savings
Replacing this sensor is one of the easiest repairs you can do on your Escalade. It is located just behind the front grille and is held in by a simple plastic clip. The job requires no special tools and can be completed in under 30 minutes, saving you the entire cost of shop labor.
Frequently Asked Questions
Where is the ambient air temperature sensor located on my Escalade?

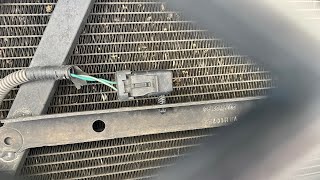

For the 1999-2007 generation, the sensor is located in the front of the vehicle, behind the grille. It is typically mounted to the radiator core support, slightly to one side of the center. This position allows it to read the outside air without being affected by engine heat.
Can I replace this sensor myself?
Yes, this is a very beginner-friendly DIY task. You will need to access the area behind the grille. The sensor is attached with a simple push-in clip and has one electrical connector. You just unplug the old sensor, release the clip, pop the new one in, and reconnect it.
Will a bad sensor cause any major driving problems?
No, a bad ambient air temperature sensor will not affect your Escalade's engine performance or ability to drive safely. Its primary impact is on comfort systems—the automatic A/C and the temperature display. You can continue to drive the vehicle, but these features will not work correctly.
Why does the sensor fail?
Failure is usually due to age and its exposed location. Being at the front of the vehicle, the sensor is subjected to water, road salt, dirt, and impacts from small road debris. Over time, this can cause corrosion in the connector or internal failure of the sensor itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25775833 15035786 10396844
Typically a two-terminal sensor that functions as a thermistor, changing its electrical resistance based on the surrounding air temperature.
