Toyota Corolla Windshield Washer Pump Guide (1999-2003)
Everything you need to know about replacing the windshield washer pump on your 1999-2003 Toyota Corolla.
- Failure is common due to age; the most obvious symptom is no spray when you hear the wipers move.
- Before replacing, check the fluid level, listen for the pump's hum, and check for clogged nozzles.
- This is an easy DIY repair that takes under an hour with basic tools.
- Quality aftermarket brands like ACDelco or Trico are reliable and more affordable than OEM for this part.
Is Your Windshield Washer Pump Failing?
For the 1999-2003 Toyota Corolla, the windshield washer pump is a simple part that can fail from old age. The most common sign of a problem is when you activate the washers and nothing comes out, but you can still hear the wipers move. Before you assume the pump is bad, check a few simple things first.
- Check the Fluid: Make sure your washer fluid reservoir isn't empty.
- Listen for the Pump: When you try to use the washers, you should hear a distinct humming or whirring sound from the front of the car. If you hear nothing, the pump is likely dead or not getting power.
- Check for Clogs: If you hear the pump running but no fluid sprays, the nozzles on the hood or the lines leading to them might be clogged. You can try to clear the nozzle holes with a small pin. 🎬 See how to clear and fix clogged spray nozzles
- Check the Fuse: An electrical issue like a blown fuse can also stop the pump from working. 🎬 Watch: How to find and check the washer pump fuse
Frozen Fluid Warning
Using only water or a non-winter fluid can cause the pump and lines to freeze and crack in cold weather, leading to pump failure. Always use a proper windshield washer solvent rated for freezing temperatures.
Choosing the Right Aftermarket Pump
For a vehicle like the 1999-2003 Corolla, an aftermarket washer pump is a smart and cost-effective choice. The original OEM pumps are reliable, but given the age of the car, a new aftermarket part from a reputable brand offers similar performance for less money. The key is choosing a quality brand.
- ACDelco: While often associated with GM vehicles, ACDelco makes parts for many brands. They are known for producing reliable components that meet or exceed original specifications. An ACDelco pump is a solid, trustworthy option.
- Trico: Trico is a well-known brand in the wiper and washer industry. Their pumps are designed to be easy to install and are a popular, affordable replacement that gets the job done.
Both brands are good choices. The difference often comes down to price and availability. You don't need to spend extra for an OEM part on this specific repair, as a quality aftermarket pump will provide a long service life.
Cost of Replacing a Windshield Washer Pump (1999-2003 Toyota Corolla)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $27.76 - $49.26 |
| New OEM Part | $52 - $108 |
| Shop Labor | $95 - $153 |
| Total Professional Replacement | $123 - $202 |
DIY Replacement is Easy
Replacing the washer pump on this Corolla is a great job for a beginner. It usually takes less than an hour. The pump is located at the bottom of the washer fluid reservoir, which is typically behind the passenger-side front bumper cover or fender liner. You'll need to remove a few screws or clips to access it, pull the old pump out, and push the new one in.

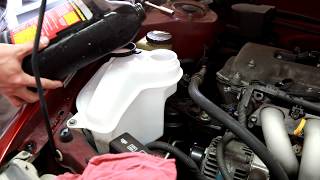

🎬 Watch this step-by-step washer motor replacement walkthroughFrequently Asked Questions
Do I need to replace the grommet with the pump?
Yes. The pump seals to the reservoir with a rubber grommet. Most new pumps come with a new grommet. It's important to use the new one to prevent leaks.
Are there any recalls for the washer pump on my Corolla?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database and other sources show no recalls specifically for the windshield washer pump on the 1999-2003 Toyota Corolla. There was a recall for wiper issues on other models, but not the pump for this generation.
My car has a rear washer. Does it use the same pump?
Some vehicles use a single, reversible pump for front and rear, while others use two separate pumps. If your Corolla has a rear wiper and washer, make sure you are ordering the correct pump for the front. The parts are often different.
What tools do I need to replace the pump?
You will typically need a 10mm socket or wrench, a flathead screwdriver for prying clips, and a bucket to catch any remaining washer fluid when you pull the old pump out.
Helpful Videos
Technical Specifications
OEM Part Numbers: 85330-20470 85330-12280 85330-44010 85330-10290 85330-14490
The pump is a small, 12V electric motor that press-fits into a rubber grommet at the base of the windshield washer fluid reservoir.
