Engine Camshaft Position Sensor: A Guide for 1998-2008 Toyota Corolla Owners
Understanding common failures and choosing the right replacement camshaft position sensor for your Corolla's 1.8L engine.
- For 1998-1999 models, the sensor is likely inside the distributor, requiring a full distributor replacement.
- For 2000-2008 models, this is a very simple DIY replacement involving only one bolt.
- Common symptoms include a P0340 code, stalling, hard starting, and poor acceleration.
- Using a high-quality aftermarket brand like Denso or Delphi is recommended for reliability.
A Critical Note for 1998-1999 Corolla Owners
If you own a 1998 or 1997 Toyota Corolla, your camshaft position sensor is different. On these earlier models with a 1.6L engine, the sensor is typically integrated inside the distributor. If the sensor fails and you have a P0340 trouble code, you will likely need to replace the entire distributor assembly, not just a small sensor. This article primarily focuses on the 2000-2008 models which have a separate, easily replaceable sensor.
Is Your Corolla's Camshaft Position Sensor Failing?
A bad camshaft position sensor can cause a variety of noticeable engine problems. Because the sensor's data is so important for engine timing, a bad signal can disrupt performance significantly. You'll likely know something is wrong when one or more of these symptoms appear.
🎬 See a visual guide on how these engine symptoms look.Common Symptoms of Failure
- Check Engine Light: This is often the first and most common sign. A scan will usually show the code P0340, which points to a malfunction in the camshaft position sensor circuit.
- Engine Won't Start: The engine may crank but refuse to start because the computer doesn't have the position data it needs for ignition.
- Hard Starting: You may experience extended cranking times before the engine finally turns over.
- Stalling and Rough Idle: The engine may stall unexpectedly, especially at low speeds, or run unevenly while stopped.
- Poor Acceleration: With incorrect timing signals, the engine can feel sluggish and lack power when you press the gas pedal.
Choosing the Right Aftermarket Sensor
When replacing the camshaft sensor on your Corolla, you have a choice between OEM and various aftermarket brands. For electronic sensors, quality and reliability are key. While some budget parts may work, they can also fail prematurely or provide inaccurate signals, bringing you right back to where you started.
Here’s a breakdown of available brands to help you decide:
- OEM-Equivalent Brands (Best Quality): Denso is the original equipment manufacturer for many Toyota parts, so choosing a Denso sensor is the closest you can get to buying the part from a Toyota dealer. Brands like Delphi and NGK/NTK also have a strong reputation for producing high-quality sensors that meet or exceed OE standards.
- Reputable Aftermarket Brands (Good Quality): Brands like Standard Ignition (SMP) and Holstein offer a good balance of quality and value. They engineer their parts to perform reliably in harsh engine conditions and often come with good warranties.
- Economy Brands (Use with Caution): Brands like Dorman and Beck Arnley offer parts at a lower price point. While Beck Arnley specializes in foreign nameplate parts, some users have reported issues with sensor reliability. These can be a viable option if budget is the primary concern, but be aware that the risk of premature failure may be higher compared to premium brands.
Pro Tip: For critical sensors like this one, spending a little more on a reputable brand like Denso or Delphi can save you from having to do the job twice.
Cost to Replace a Toyota Corolla Camshaft Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM | $70 - $105 |
| New Aftermarket | $30 - $116 |
| Shop Labor | $60 - $140 |
Frequently Asked Questions (FAQ)
Where is the camshaft position sensor on a 1998-2008 Corolla?
For 2000-2008 models with the 1.8L 1ZZ-FE engine, the sensor is located on the driver's side of the cylinder head, near the top of the engine. It is held in place by a single 10mm bolt. For 1998-1999 models, it is usually integrated into the distributor.
Can I drive my Corolla with a bad camshaft position sensor?
It is not recommended. While the car may still run, it can stall unexpectedly at any time, which is a serious safety risk. You will also experience poor performance and fuel economy until it is fixed.
Is this a difficult part to replace myself?
On 2000-2008 models, this is a very easy DIY repair. The job involves removing the engine cover, disconnecting an electrical connector, and removing a single 10mm bolt. The entire process can take as little as 15-20 minutes. 🎬 Watch this quick video to see the 10mm bolt removal process. For 1998-1999 models, replacing the entire distributor is a more involved job.
What is the main trouble code for a bad camshaft sensor?
The most common diagnostic trouble code (DTC) is P0340, which indicates a fault in the camshaft position sensor circuit. While other issues can sometimes trigger this code, a faulty sensor is the most frequent cause.
Should I replace the crankshaft sensor at the same time?
It is generally not necessary. While the two sensors work together, you should only replace the part that has failed. Replacing parts that are not broken adds unnecessary cost to the repair.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90080-19014 90919-05026

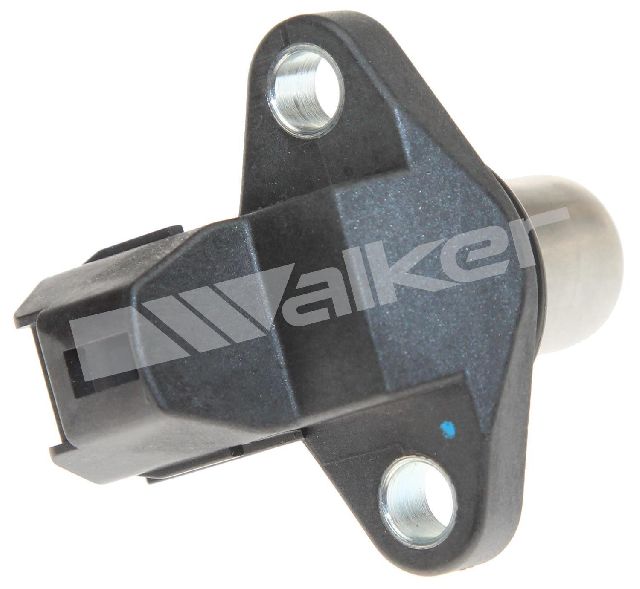

This is a Hall-effect sensor with a 2-pin connector for the 1.8L 1ZZ-FE engine (2000-2008 models). It is secured by a single bolt.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
