A Complete Guide to the 1998-2006 Toyota Sienna A/C Compressor
If the air conditioning in your first-generation Sienna is blowing warm, this guide will help you choose the right replacement compressor.
- Denso is the original manufacturer for Toyota and offers the highest quality aftermarket option.
- You must replace the receiver/drier and expansion valve with the compressor to prevent premature failure and to keep the warranty valid.
- Before replacing the compressor, rule out simpler issues like a bad A/C clutch relay or low refrigerant levels.
- A catastrophic failure can contaminate the entire A/C system, requiring more parts and labor to fix correctly.
Is Your Sienna's A/C Compressor Failing?
When an A/C compressor starts to fail in the 1998-2006 Toyota Sienna, the symptoms are usually hard to ignore. Understanding these signs can help you decide if the compressor is truly the problem.
- Warm Air From Vents: This is the most common symptom. The compressor may not be able to pressurize the refrigerant enough to cool the air.
- Loud Noises: A grinding or squealing noise that starts when you turn the A/C on and stops when you turn it off points to a bad bearing or internal damage inside the compressor.
- A/C Clutch Not Engaging: The compressor has a clutch on its pulley that engages when the A/C is on. You should hear a 'click' and see the center part of the pulley start spinning. If it doesn't engage, it could be a bad clutch, a bad relay, or the system may be low on refrigerant.
- Visible Leaks: The compressor has seals that can wear out over time, leading to refrigerant and oil leaks. You might see a greasy film on the compressor body.
Don't Mistake a Simple Fix for a Bad Compressor
Before you buy a new compressor, check the simple things. A bad A/C clutch relay, located in the under-hood fuse box, is a common 🎬 Watch: How to diagnose and replace a bad A/C relay. and inexpensive part that can prevent the compressor from turning on. Also, if the system is very low on refrigerant from a leak elsewhere, a pressure switch will prevent the compressor from engaging to protect it from damage.
Choosing the Right Aftermarket A/C Compressor
For the 1998-2006 Sienna, you have several good aftermarket options. The quality and price can vary, so it's important to know the difference.
Tier 1: OEM-Equivalent

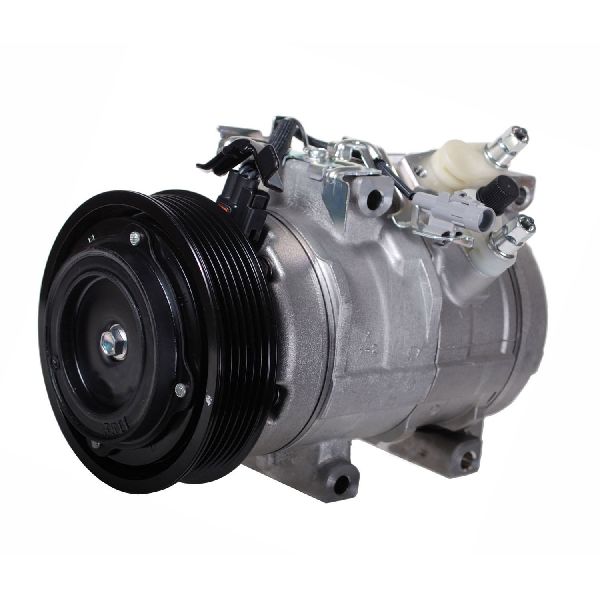

Denso: Denso is the original equipment manufacturer (OEM) for Toyota, meaning they made the A/C compressor that was installed in your Sienna at the factory. Choosing a new Denso compressor is the safest bet for factory-level quality, quiet operation, and long-term reliability. While it is the most expensive aftermarket option, it is the closest you can get to the original part.
Tier 2: Quality Aftermarket

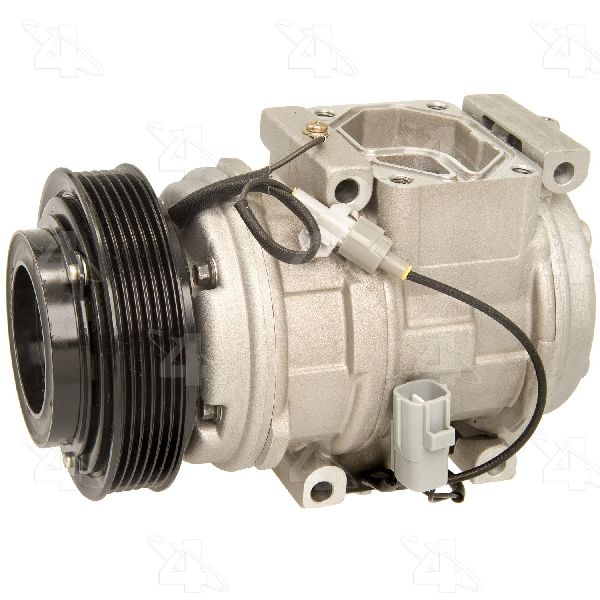

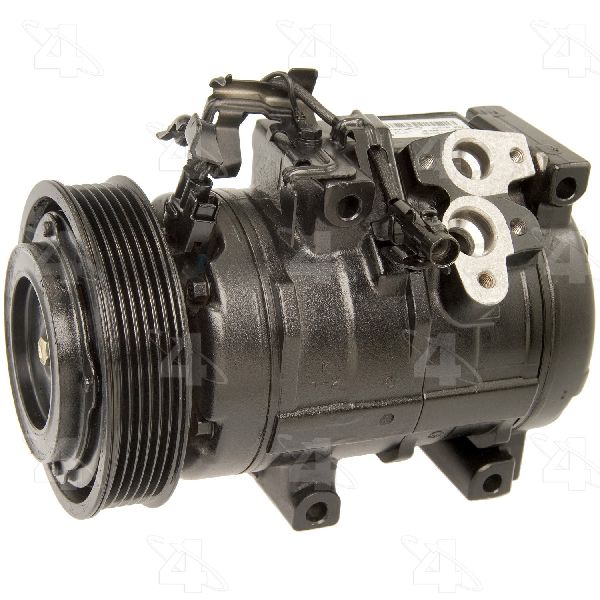

Four Seasons: Four Seasons is a well-respected aftermarket brand that offers both new and remanufactured compressors. They are a popular choice for mechanics and DIYers who want a quality part without the higher cost of an OEM Denso unit. They often sell complete kits that include the other parts you must replace at the same time.
Tier 3: Economy Options
Global Parts (GPD) & Replacement: Brands like Global Parts Distributors and generic "Replacement" brands offer the most budget-friendly compressors. While they are designed to match the original fit and function, long-term durability can be inconsistent. These can be a viable option if budget is the primary concern, but be aware that the risk of premature failure is higher compared to top-tier brands.
Always Replace Related Components
When you replace the A/C compressor, you must also replace the A/C receiver/drier (also called an accumulator) and the expansion valve. The drier contains a desiccant that absorbs moisture from the system, and it can only hold so much. A new compressor needs a new, dry filter to protect it. Failing to replace these parts will void the warranty on your new compressor and likely cause it to fail quickly.
A/C Compressor Replacement Cost for 1998-2006 Toyota Sienna
The total cost depends on the brand of compressor you choose and whether you do the work yourself or hire a professional.
🎬 See this step-by-step guide for replacing the compressor yourself.| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Compressor | $224 - $487 |
| Shop Labor & System Recharge | $250 - $400 |
| Total Professional Installation | $474 - $887 |
Frequently Asked Questions
Do I have to be a certified mechanic to replace an A/C compressor?
While you don't need to be certified, the job requires special tools. By law, the refrigerant in the system must be recovered with a professional machine before opening the lines; it cannot be vented into the air. After installation, the system must be put into a deep vacuum to remove air and moisture before being recharged with the precise weight of refrigerant. For these reasons, most DIYers have a shop perform the evacuation and recharge.
What is A/C "Black Death"?
This is a term for a catastrophic internal compressor failure. The compressor shreds itself apart, sending tiny metal particles throughout the entire A/C system. If this happens, you must flush all the lines, and replace the compressor, condenser, drier, and expansion valve to prevent the debris from destroying the new compressor.
Should I buy a new or remanufactured compressor?
A new compressor from a quality brand like Denso or Four Seasons is generally the most reliable option. A remanufactured compressor can save money, but its quality depends on the rebuilder. If you choose remanufactured, stick with a reputable brand that offers a good warranty.
How do I know if it's the compressor or just the clutch?
If the compressor pulley spins freely by hand when the engine is off but makes a grinding noise or won't engage when the A/C is on, the clutch may be the issue. However, many aftermarket compressors come as a complete assembly with a new clutch already installed. Often, replacing the entire unit is easier and more reliable than just replacing the clutch.
🎬 Watch: How to replace only the A/C compressor clutch.Helpful Videos
Technical Specifications
OEM Part Numbers: 88320-08030 88320-08031 88320-08050 88320-08051
Compressor Type: Denso 10S17C. Clutch Included: Yes. Refrigerant Type: R-134a.
