GMC W4500 Forward Brake Caliper Guide: 1998-2003 Models
Everything you need to know before replacing the disc brake calipers on your 1998-2003 GMC W4500 Forward.
- The most common failure point on these trucks is seized caliper slide pins, leading to uneven wear and dragging brakes.
- Always replace calipers in pairs (both fronts) to ensure balanced braking.
- When replacing, insist on cleaning and lubricating the slide pins with high-temperature brake grease.
- Quality remanufactured calipers from brands like Centric or Raybestos offer a reliable, cost-effective repair.
Symptoms of a Failing Brake Caliper
A bad brake caliper is a serious safety issue. If you notice any of these symptoms, inspect your brakes immediately.
- Vehicle Pulls to One Side: When braking, your truck may pull sharply to the left or right. This often indicates a seized caliper on the opposite side.
- Uneven Brake Pad Wear: A stuck caliper slide pin or piston will cause the brake pads on one wheel to wear out much faster than the others. You might see one pad worn down to the metal while the other looks new.
- Spongy or Soft Brake Pedal: A failing caliper seal can leak brake fluid, introducing air into the system. This results in a pedal that feels soft or goes closer to the floor.
- Brakes Dragging: A caliper that doesn't release properly will cause the brakes to drag. You might notice a burning smell after driving, see smoke from a wheel, or feel the truck is sluggish and has poor fuel economy.
- Visible Brake Fluid Leaks: Puddles of fluid near the wheels are a clear sign of a hydraulic leak, which could be from a caliper seal or a brake hose.
Known Issue: Seized Caliper Slide Pins
The most common point of failure on 1998-2003 GMC W4500 Forward (and its Isuzu NPR counterpart) is seized or frozen caliper slide pins. These pins allow the caliper to move side-to-side as the pads wear. Due to rust and lack of lubrication, they can get stuck in the caliper bracket. This is a primary cause of uneven pad wear and brake dragging on these trucks. Mechanics often need to use significant heat and force to remove them during a brake job.
Choosing the Right Aftermarket Caliper
When shopping for a new aftermarket caliper, you'll find several brands. They generally fall into a few categories based on price and quality.
Brand Quality Tiers
Standard Replacement (Good):
- Centric: Widely regarded as a provider of high-quality remanufactured and new parts that meet or exceed OEM specifications. A solid choice for daily and commercial use.
- Raybestos: Another long-standing brand in the brake industry, Raybestos offers reliable new and remanufactured calipers known for durability.
Performance/Heavy-Duty (Better):
- Powerstop: Often sold as an upgrade, Powerstop calipers typically feature a powder-coated finish to resist corrosion and come with high-temperature seals and lubricants. This is an excellent choice if you frequently haul heavy loads or want extra durability.
Economy (Basic):
- Cardone: Cardone is a major supplier of remanufactured parts at a budget-friendly price. While many have used them without issue, they have a reputation for occasional quality control problems. They can be a good value, but inspect the part carefully before installation.

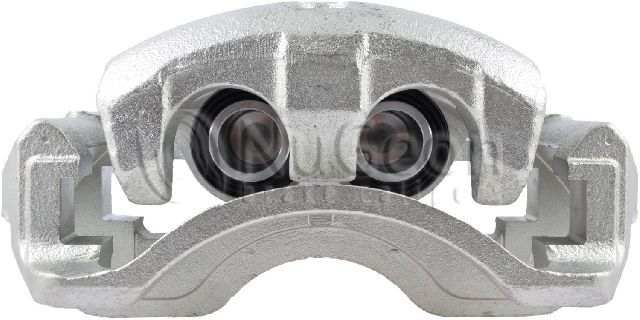

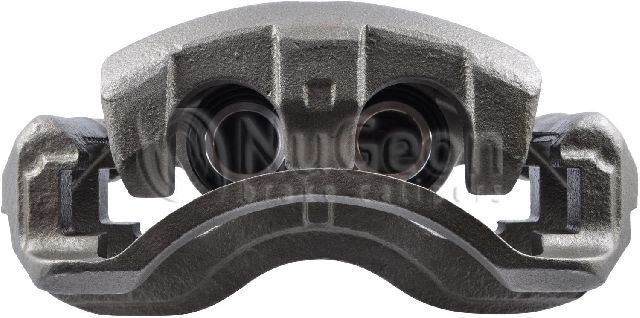

- BBB Industries / Dynamic Friction: These brands offer standard replacement options that are widely available from parts retailers.
Pro Tip: Regardless of the brand you choose, the most important factor for longevity on this truck is ensuring the caliper slide pins are new or thoroughly cleaned and lubricated with high-temperature silicone brake grease during installation.
New vs. Remanufactured
Most aftermarket calipers for this truck are remanufactured. A quality remanufactured caliper is disassembled, cleaned, inspected, and rebuilt with new seals, boots, and hardware. The core of the caliper—the cast iron housing—is reused. For a vehicle of this age, a high-quality remanufactured caliper from a reputable brand like Centric or Raybestos is a reliable and cost-effective choice. New aftermarket calipers are also available and eliminate any concern about the history of the caliper core.
| Part Type | Typical Price Range |
|---|---|
| New Aftermarket Caliper | $73.03 - $223.17 |
| Shop Labor for Replacement (per side) | $150 - $300 |
Frequently Asked Questions (FAQ)
Should I replace brake calipers in pairs?
Yes. It is always recommended to replace brake calipers in pairs (both front or both rear). This ensures even braking performance and prevents the truck from pulling to one side. A new caliper will behave differently than an old, worn one.
What is a 'loaded' vs. 'unloaded' caliper?
An 'unloaded' or 'semi-loaded' caliper is just the caliper assembly itself, sometimes with the bracket and hardware. A 'loaded' caliper comes complete with new brake pads already installed. For this truck, you will typically buy a semi-loaded caliper and purchase your preferred brake pads separately.
Do I need to bleed the brakes after replacing a caliper?
Absolutely. Whenever you open the hydraulic system by removing a caliper, you must bleed the brakes to remove all air from the lines. Air in the system will cause a spongy, unsafe brake pedal.
Are there any recalls on the 1998-2003 GMC W4500 brake calipers?
No. Searches of the NHTSA database did not find any safety recalls specifically for brake calipers on the 1998-2003 GMC W4500 Forward or its Isuzu NPR equivalent. Recalls found were for different model years or different brake components.
Technical Specifications
The front disc brake system on the 1998-2003 GMC W4500 Forward uses a hydraulic, 2-piston floating caliper design.
