Ford Expedition Starter Diagnosis and Replacement Guide (1997-2017)
Don't get stranded—here's what you need to know when your Expedition's starter is failing.
- A single, loud click is the classic symptom of a failed starter, while rapid clicking usually means a weak battery.
- Replacement is a feasible DIY job for many owners, but the top bolt can be difficult to access without extensions and a swivel socket.
- Before replacing the starter, always check the battery, its connections, and the starter relay (located on the firewall in early models or the fuse box in later models).
- Premium aftermarket brands like Bosch and Denso offer quality close to OEM, while brands like Remy and WAI are reliable mid-tier options.
Is Your Expedition's Starter Going Bad?
A failing starter rarely dies without warning. For a Ford Expedition owner, the signs are usually easy to spot. If you notice any of these symptoms, it's time to pay attention before you're left stranded.
Common Failure Symptoms:
- Single, Loud "Click": This is the classic sign of a bad starter. When you turn the key, you hear one solid click but the engine doesn't crank. This usually means the starter solenoid is engaging, but the motor itself isn't turning.
- Slow Engine Crank: If your Expedition's engine turns over sluggishly, like the battery is dying, it could be a weak starter motor drawing too much power. Always test the battery first to rule it out.
- Grinding Noise: A grinding or whirring sound during or after cranking can mean the starter gear isn't meshing correctly with the flywheel or isn't retracting properly.
- No Sound at All: If you turn the key and get nothing—no click, no crank—the problem could be the starter, but it's also important to check the battery, ignition switch, and starter relay first.
- Intermittent Starting: Sometimes it starts perfectly, other times it just clicks or cranks slowly. This inconsistency points to a starter that is on its last legs.
Don't Confuse a Bad Starter with a Bad Battery
Many starting problems are caused by a weak or dead battery, not the starter. A rapid, machine-gun-like clicking sound when you turn the key almost always points to a low battery. Before you buy a new starter, make sure your battery is fully charged and the terminals are clean and tight.
Choosing the Right Aftermarket Starter
When replacing the starter on your Expedition, you don't have to buy an expensive OEM part from the dealer. Aftermarket brands offer a good balance of quality and value. However, not all aftermarket parts are created equal. Some owners report that very cheap, no-name starters can fail prematurely. Based on owner experiences and brand reputation, here’s a breakdown of the available options.
- Premium Brands (Bosch, Denso): These companies are often the original equipment manufacturers (OEM) for Ford and other automakers. Choosing a new or remanufactured starter from Bosch or Denso is the closest you can get to dealer quality. They are known for reliability and longevity, making them a top choice if your budget allows.
- Quality Aftermarket (Remy, WAI Global): Brands like Remy (formerly Delco Remy) and WAI Global have a solid reputation in the aftermarket for electrical parts. They offer new units that provide good performance and are a reliable choice for a daily-driven Expedition.

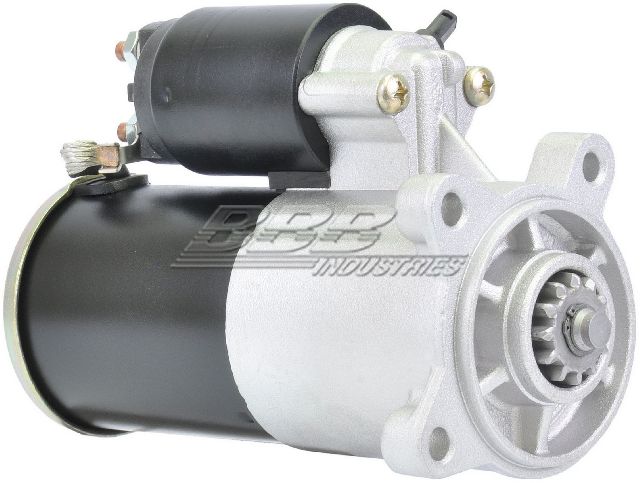

- Standard/Value (BBB Industries): BBB Industries is a large manufacturer that often supplies store-brand remanufactured parts. While they can be a cost-effective solution, some owners have experienced mixed results with longevity compared to premium brands.
Cost of Replacing a Ford Expedition Starter
The total cost depends on the part you choose and whether you do the work yourself. Shop labor costs for this job are generally reasonable.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $85 - $212 |
| Remanufactured Starter | $70 - $185 |
| Shop Labor | $122 - $179 |
| Total Professional Replacement | $429 - $504 |
Known Issues and Recalls
There are no widespread recalls specifically for the starter motor on the 1997-2017 Ford Expedition. However, some Technical Service Bulletins (TSBs) relate to starting issues:
- TSB 23-2143: For some 2018-2020 models (outside the user's range but relevant), a rattle noise on startup and a no-restart condition during auto-start-stop operation could be caused by worn VCT units, not the starter.
- TSB 23-2256: Some 2020-2021 models may experience a no-restart during auto start-stop due to a software issue needing a PCM reprogram.
- Water Intrusion (2003 Models): A known issue for 2003 Expeditions involves water leaking into the fuse box, causing a wide range of electrical problems, including no-start conditions.
Frequently Asked Questions (FAQ)
Is replacing the starter on an Expedition a DIY job?
For most models, yes. The starter is typically located on the passenger side of the transmission bellhousing, accessible from underneath. It's held on by 2 or 3 bolts. The top bolt can be difficult to reach, especially on the 4.6L and 5.4L engines, and may require long extensions and a swivel socket. 🎬 See this trick for reaching that difficult top starter bolt. The job is considered intermediate difficulty 🎬 Watch: Step-by-step starter replacement for 2007-2017 Expedition models. and can take 1.5 to 3 hours.
Do I need special tools to replace my starter?
You'll need a good socket set (typically 10mm, 13mm, 15mm), extensions, a ratchet, and possibly a universal swivel adapter for the top bolt. Jack stands are essential for safety when working underneath the vehicle. Disconnecting the battery is the first and most important step.
What's the difference between a new and a remanufactured starter?
A new starter is made with all-new components. A remanufactured (reman) starter is a used OEM core that has been disassembled, cleaned, and rebuilt with new or re-machined internal parts like brushes, bushings, and solenoids. High-quality remanufactured units from brands like Bosch or Motorcraft can be just as reliable as new ones.
My truck just clicks once. Is it definitely the starter?
A single click is the most common symptom of a bad starter, but it's not a 100% guarantee. It could also be a poor connection on the battery cables or a faulty starter relay. Always check these simple things first before spending money on a new starter.
Helpful Videos
Technical Specifications
Voltage: 12V; Power Rating: 1.4kW to 1.8kW (varies by engine and year); Rotation: Clockwise; Number of Teeth: 10 or 12 (varies).
