Toyota RAV4 Relay Guide: 1997-2009
Understanding the common relays in your 1997-2009 Toyota RAV4 and how to know when they need replacement.
- A failing relay can cause a no-start condition, make your A/C stop working, or drain your battery.
- Most relays are located in fuse boxes in the engine bay and are simple to replace by pulling the old one out and plugging the new one in.
- You can diagnose a bad relay by swapping it with an identical one from a non-critical system (like the horn).
- For critical systems, using an OEM-quality relay from Denso is recommended for long-term reliability.
Understanding Relays in Your 1997-2009 RAV4
Your Toyota RAV4 relies on a series of small but critical components called relays to power its most important electrical systems. Think of a relay as an automatic, heavy-duty switch. When you turn the key, press the A/C button, or your engine gets hot, a small electrical signal is sent to a relay. The relay then closes a high-power circuit, sending the large amount of electricity needed to run the starter, A/C compressor, or cooling fans. This system protects the delicate switches on your dashboard from the high currents these parts require.
Common Symptoms of a Failing Relay
Relay failure is a common issue on vehicles of all ages. Due to constant use, heat, and vibration, the internal contacts can wear out or the internal coil can fail. A bad relay can fail in two ways: it can get stuck open (preventing a component from turning on) or stuck closed (causing a component to run constantly). Here are the most common signs of a failing relay in your RAV4:
- Engine Cranks But Won't Start: This is a classic symptom of a failed fuel pump relay. The relay isn't sending power to the fuel pump, so the engine isn't getting any gas. 🎬 See this guide to find your fuel pump relay and fuse.
- Engine Doesn't Crank at All (No-Start): If you turn the key and hear a single click or nothing at all, the starter relay could be the culprit. It's failing to send the powerful electric current needed to turn the starter motor. 🎬 Watch: How to locate and replace your RAV4 starter relay.

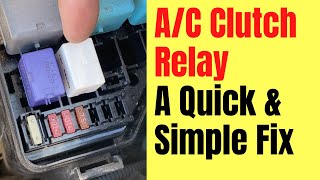

- A/C Doesn't Blow Cold Air: The A/C compressor is activated by a relay. If the relay fails, the compressor won't engage, and your A/C system will only blow ambient-temperature air. 🎬 Watch: A quick fix for when your A/C stops working.
- Component Stays On After Car is Off: A relay stuck in the closed position can cause a component, like the fuel pump or cooling fan, to run continuously, which will drain your battery.
- Intermittent Problems: A failing relay may work sometimes and not others. For example, your car might start fine one day and not the next, or the A/C might cut in and out. This can be caused by worn internal contacts.
Pro Tip: The Relay Swap Test
Your RAV4's fuse box often contains several identical relays. If you suspect a relay is bad (for example, the A/C relay), you can often swap it with a known good, identical relay from a non-essential system (like the horn). If the A/C starts working and the horn stops, you've found your bad relay. Just be sure to replace the faulty relay immediately.
Choosing the Right Aftermarket Relay: OEM vs. Aftermarket
When replacing a relay in your RAV4, you have a choice between Original Equipment Manufacturer (OEM) and aftermarket parts.
- OEM (Toyota/Denso): Toyota's original relays are typically made by Denso. Buying a relay from a Toyota dealer or one in a Denso box is your best bet for guaranteed fit, function, and longevity. Forum users and mechanics often recommend sticking with Denso for critical electronic parts to avoid issues.
- Aftermarket (Replacement Brand): Aftermarket relays, like those from the "Replacement" brand, offer a significant cost saving. For a simple component like a relay, a quality aftermarket part can be a perfectly acceptable choice. However, quality can vary greatly between brands. While many aftermarket relays meet or exceed OEM standards, some cheaper options may have a shorter lifespan. For critical systems like the fuel pump or starter, investing a few extra dollars in an OEM/Denso relay is often recommended for peace of mind.
A Note on Known Issues
While there are no specific recalls or widespread Technical Service Bulletins (TSBs) for relay failures on the 1997-2009 Toyota RAV4, relay issues are a common point of failure on most vehicles due to age and use. The most frequently discussed failures online are for the starter, fuel pump, and A/C relays.
Relay Replacement Cost for 1997-2009 Toyota RAV4
| Part Type | Estimated Cost |
|---|---|
| New OEM / Denso Relay | $20 - $75 |
| New Aftermarket Relay | $18 - $20 |
| Shop Labor | $35 - $100 |
Frequently Asked Questions (FAQ)
Where are the relays located on my RAV4?

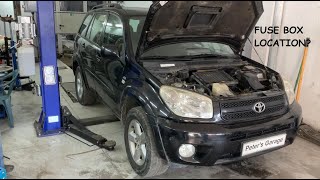

Most relays are found in fuse/relay boxes in the engine compartment. There is typically one on the driver's side. Some models may have an additional relay box or relays located under the dashboard on the driver's side. The inside cover of the fuse box usually has a diagram showing the location and function of each relay.
Is it difficult to replace a relay?
No, replacing a relay is one of the easiest DIY repairs. It usually involves locating the correct relay in the fuse box, pulling the old one straight out, and pushing the new one firmly into the socket. No special tools are typically needed, though a relay puller tool can make it easier if they are stuck tight.
My car won't start. Is it the starter or the relay?
It could be either. A bad starter relay will prevent power from reaching the starter. A simple test is to have someone turn the key to the "start" position while you listen to the relay in the fuse box. You should hear a faint click. If you hear a click but the engine doesn't crank, the problem may be the starter itself. If you don't hear a click, the relay is a likely suspect. The relay swap test is also a great way to diagnose this.
Can I use a generic relay from an auto parts store?
Yes, as long as the pin configuration, voltage, and amperage rating match the original. Many relays are multi-purpose. However, for critical components, using a trusted brand like Denso (the OEM supplier) is often recommended for reliability. Be cautious with the cheapest available options, as their quality can be inconsistent.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90987-02027 90987-04004 90080-87026 28300-10020 90987-03003 90987-04002
Most common relays are 12V with 4 or 5 pins. Amperage ratings vary. Ensure the pin layout and function (e.g., starter, A/C, fuel pump) match the original part.
