A Ford F-150 Owner's Guide to Starter Replacement (1997-2009)
Don't get stranded by a 'no-start'—here's how to diagnose and choose the right new aftermarket starter for your truck.
- A single, loud click with no crank is the most common symptom of a failed starter on these F-150s.
- Always check your battery and clean all cable connections before replacing the starter; corrosion is a frequent culprit.
- Buying a NEW starter from a quality brand like Bosch or Denso is highly recommended over a remanufactured unit for better reliability.
- The top mounting bolt is very difficult to access; be prepared with long socket extensions and a swivel adapter for the job.
Is Your F-150 Starter Failing?
A bad starter rarely fails without warning. For 1997-2009 F-150s, the signs are usually clear. The most common issue is a distinct 'click' when you turn the key, but the engine doesn't crank. This often means the starter's solenoid is working, but the motor itself is dead. You might also experience intermittent starting, where it works sometimes and not others, or slow, labored cranking that sounds weak.
Don't Mistake It for a Bad Battery
Many starter symptoms can also be caused by a weak battery or corroded cables. Before buying a new starter, make sure your battery is fully charged and that the terminals on the battery and the connections on the starter are clean and tight. 🎬 Watch: How to diagnose if you have a bad starter. Corrosion is a common problem on these trucks and can prevent the starter from getting the power it needs.

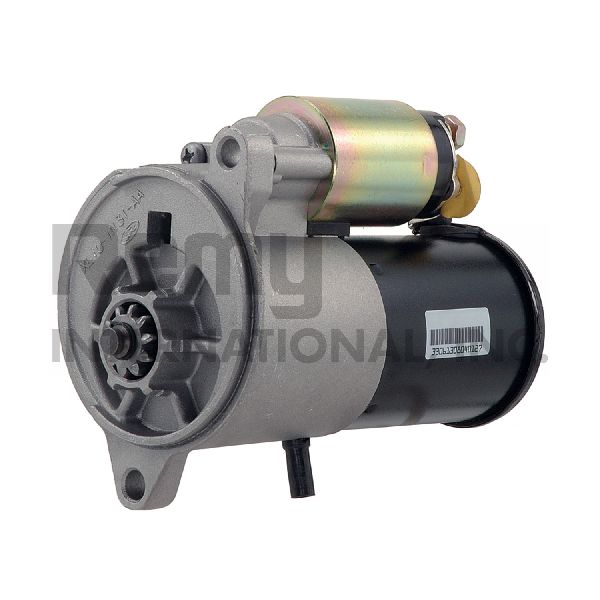

Choosing a New Aftermarket Starter
When replacing your starter, you have a choice between OEM (Motorcraft) and various aftermarket brands. For a critical part like this, quality matters. While many mechanics prefer OEM for reliability, high-quality new aftermarket units can be a great option and may even offer a more modern, faster-cranking design. Most owners and technicians strongly recommend buying a new starter rather than a remanufactured one, as the quality of remanufactured parts can be inconsistent.
Aftermarket Brand Tiers for Your F-150
Based on owner feedback and brand reputation, here’s how the available brands generally stack up for your F-150:
- Top Tier (OEM Quality): Bosch and Denso are widely regarded as OEM suppliers and a top choice for quality and reliability. If you want peace of mind similar to the original part, these are your best bets.
- Mid Tier (Good Value): Remy offers new starters that many users have had positive experiences with, sometimes noting faster cranking speeds than the original. However, some negative reviews exist, particularly for their remanufactured units.
- Standard Tier (Budget-Friendly): Brands like WAI Global and BBB Industries fall into the standard aftermarket category. While they present themselves as meeting OEM specifications, user reviews are mixed. These can be a viable budget option, but the risk of premature failure may be higher compared to top-tier brands.
An Interesting Upgrade Option
Some F-150 owners have found that a starter designed for a newer Ford 5.0L Coyote engine (e.g., from a 2013 F-150) is a direct bolt-on fit for the 1997-2009 4.6L and 5.4L V8 engines. These starters are often smaller, lighter, and provide a faster cranking speed.
Starter Replacement Cost
The cost to replace a starter on a 1997-2009 F-150 varies by who does the work and the part you choose. Aftermarket starters for this generation typically range from $84 to $212.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $84 - $212 |
| Shop Labor | $101 - $147 |
| Total Professional Replacement | $300 - $450+ |
Frequently Asked Questions
Where is the starter located on a 1997-2009 F-150?
The starter is located on the passenger side of the truck, mounted to the transmission bell housing where it meets the engine. It's positioned below the exhaust manifold.
🎬 See this step-by-step starter replacement walkthrough for older models.How difficult is it to replace the starter myself?
The job is straightforward but can be challenging due to access. It requires disconnecting the battery, safely raising the truck, removing a few wires, and unbolting three mounting bolts. The top bolt is notoriously difficult to reach and often requires long socket extensions and a swivel adapter. 🎬 Watch: Pro tips for reaching that difficult top starter bolt. Corrosion can also make removing the old starter difficult.
Are there any recalls or TSBs for the starter on these trucks?
No. Searches of the NHTSA database and other sources found no specific recalls or Technical Service Bulletins (TSBs) for starter motor failure on the 1997-2009 Ford F-150. Failure is typically due to normal wear and tear.
Do I need special tools to replace my F-150 starter?
You'll need basic hand tools like 8mm, 10mm, and 13mm sockets and wrenches. The key to making the job easier is having a good set of long socket extensions and a universal swivel socket to access the top bolt.
My truck just clicks. Is it the starter or the solenoid?
On these F-150s, the solenoid is attached to the starter motor. A single, loud click usually means the solenoid is getting power but the starter motor itself has failed to spin. Some very early models (around 1997) may also have a separate starter relay on the firewall which could also be a point of failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: F75Z-11002-AA 6C2Z-11002-CA 4R3Z-11002-CA 6C2T-11000-CA F75U-11000-AA F7UZ-11002-AA
Voltage: 12V, Rotation: Clockwise, Tooth Count: 10 or 12, Type: Permanent Magnet Gear Reduction (PMGR) is common for this generation.
