Toyota Corolla Relay Guide: 1997-2007
Troubleshoot and replace a faulty relay in your Corolla to fix common starting and electrical problems.
- A no-start or intermittent start condition is the most common sign of a bad starter relay in a 1997-2007 Corolla.
- Use the 'swap test' by exchanging the suspect relay with an identical one (like the horn relay) to quickly diagnose the problem.
- On 2003-2007 models, the starter relay is often a purple relay hidden behind the driver's side lower dash.
- An affordable aftermarket relay is a reliable option, provided it matches the original part's specifications.
Signs of a Failing Relay in Your Corolla
A bad relay can cause frustrating problems that seem to appear out of nowhere. Because relays control many different parts of your car, the symptoms can vary. However, for the 1997-2007 Toyota Corolla, the most common failures are related to the starter and main relays.
Common Symptoms:
- Car Won't Start: This is the most frequent sign. You may turn the key and hear a single click, or you might hear nothing at all. This often points to a bad starter relay.
- Intermittent Starting: The car starts fine one day but refuses to start the next. This happens when the relay's internal contacts are worn and only make a connection sometimes.
- Engine Stalls After Starting: Your Corolla might start up but then immediately shut down. This can be a symptom of a failing main or fuel pump relay cutting power.
- Component Doesn't Work: If your A/C, headlights, or fuel pump suddenly stop working, the relay that controls that specific circuit could be the culprit.
Mechanic's Tip: The Swap Test
A simple way to diagnose a bad relay is to swap it with a known good one. Your Corolla's fuse box has several identical relays. You can pull the suspected bad relay and swap it with the one for the horn, for example. If your car now starts but the horn doesn't work, you've found the bad relay. Just be sure to swap it back so you don't forget!
Finding and Replacing Your Corolla's Relay
Relay locations differ between the two generations of Corolla covered in this guide.
- 1997-2002 (8th Generation): You'll find fuse and relay boxes under the hood and inside the car. The interior box is typically located behind a storage compartment or panel on the driver's side of the dashboard.
- 2003-2007 (9th Generation): The main fuse box is in the engine bay. However, the starter relay, a common failure point, is often a purple-colored relay located inside the car, behind the dashboard to the left of the steering wheel. It can be difficult to see and reach without removing the small coin tray or lower dash panel.
Once located, replacement is simple: disconnect the battery, pull the old relay straight out, and push the new one firmly into the socket.
Related Issue: Engine Control Module (ECM) Recall
For 2005-2008 models, Toyota issued a recall for the ECM. A faulty ECM can cause symptoms identical to a bad relay, including harsh shifting, a no-start condition, or the engine stalling while driving. If you have a 2005-2007 model and are experiencing these issues, it's worth checking if your vehicle's VIN is part of this recall campaign.
Choosing an Aftermarket Relay
When replacing a relay, you have the choice between an Original Equipment Manufacturer (OEM) part from Toyota and an aftermarket part. OEM relays, often made by Denso, are known for their high quality and durability.
Aftermarket relays are a cost-effective alternative that can perform just as well, especially for a standard component like a relay. The key is to buy from a reputable source and ensure the part number and specifications match the original exactly. A generic aftermarket brand like 'Replacement' offers a direct-fit part that meets the necessary electrical load and pin configuration for your Corolla, providing a reliable repair without the higher cost of an OEM part.
| Part Type | Price Range |
|---|---|
| New OEM | $45 - $65 |
| New Aftermarket | $15 - $30 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Can I drive with a bad relay?
If the bad relay controls a critical system like the starter or fuel pump, your car likely won't start, leaving you stranded. If it controls a less critical component like the A/C, you can still drive, but the affected system won't work. It's best to replace it as soon as possible.
Why did my Corolla's relay fail?
Relays can fail from age, heat, and the constant vibration of the engine. The internal contacts can wear out or get stuck after thousands of cycles. Sometimes, an electrical short or a component drawing too much power can also cause a relay to burn out.
Is replacing a relay a DIY job?
Yes, for most relays it is a very easy DIY job. If the relay is in an accessible fuse box, it's a 5-minute task. For the 2003-2007 Corolla starter relay, the job is still simple but requires a bit more effort to access its location behind the dash.
Do I need to disconnect the battery to replace a relay?
Yes, it is always recommended to disconnect the negative battery terminal before working on your vehicle's electrical system. This prevents accidental short circuits and ensures your safety.

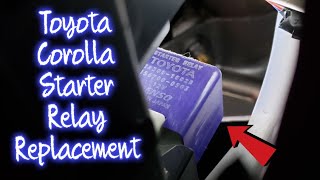

Helpful Videos
Technical Specifications
OEM Part Numbers: 90987-02012
Typically a 4-pin, 12V DC electromechanical relay. Color and specific amperage can vary by circuit.
