Honda Accord Main Relay Guide for 1997-2003 Models
If your Accord cranks but won't start or stalls randomly, the main relay is the most likely culprit.
- A no-start condition where the engine cranks is the #1 symptom of a bad PGM-FI main relay.
- Listen for the fuel pump to hum for 2 seconds when you turn the key; silence points to the relay.
- This is a very common failure; an affordable aftermarket relay is a reliable and smart replacement choice.
- Replacement is simple and located under the driver's dash, making it an excellent DIY job to save money.
Is Your 1997-2003 Accord Not Starting? Check the Main Relay First.
A very common issue for the 1997-2003 Honda Accord is the failure of the PGM-FI Main Relay. The symptoms can be frustrating and seem random, but they often point to this single, inexpensive part. The primary cause of failure is not the relay itself, but the solder joints on its internal circuit board, which can crack over time from heat and vibration. This leads to an intermittent connection that typically gets worse in hot weather.
Symptoms of a Failing Main Relay
- Engine Cranks, But Won't Start: This is the most classic symptom. The starter motor will turn the engine over, but it will never fire up and run.
- Car Stalls While Driving: The engine may suddenly shut off for no reason, especially after the car has warmed up or on a hot day. It might restart after it has had time to cool down.
- No Fuel Pump Sound: When you turn the ignition key to the 'ON' position (without starting), you should hear a faint 2-second hum from the rear of the car as the fuel pump primes. If you hear nothing, the main relay is a likely suspect.
- Check Engine Light Doesn't Turn On: During a normal start-up, the check engine light should come on for a couple of seconds and then go off. If the light doesn't appear at all when you turn the key, it can indicate the relay isn't powering the engine computer.
Don't Mistake It for a Bad Fuel Pump
Many owners replace their fuel pump only to find the problem persists. Because the main relay controls the fuel pump, its failure mimics a bad pump. Always check or replace the main relay first, as it is much cheaper and easier to access.
Choosing the Right Aftermarket Relay
For this specific part and vehicle, there is little practical difference in reliability between an OEM relay and a quality aftermarket one. The original OEM relays are known for failing due to cracked solder joints, a design flaw that the aftermarket has had decades to address. A standard aftermarket relay is a cost-effective and reliable solution for this common problem. Since the failure is so well-known, aftermarket brands produce direct-fit replacements that work perfectly without the high cost of an OEM part.
Pro Tip: Locating the Main Relay

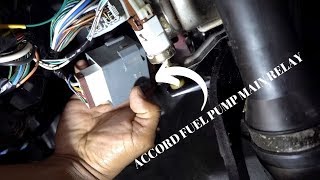

The main relay is located under the driver's side dashboard, typically to the left of the steering column. It's a small black or gray box plugged into a brown connector, often clipped to a metal bracket. Access is a bit tight, but replacement requires no special tools—just unplug the old one and plug in the new one.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $95 - $141 |
| New Aftermarket | $18 - $40 |
| Shop Labor | $50 - $95 |
Frequently Asked Questions
Is there a recall on the main relay for my 1997-2003 Accord?
No. While Honda has issued recalls for fuel pump relays on other models and years, there are no active recalls specifically for the PGM-FI main relay on the 1997-2003 Honda Accord.
Can I replace the main relay myself?
Yes, this is a very DIY-friendly repair. The relay is located under the driver's dash and is simply plugged in. It can be swapped in under 30 minutes with basic hand tools, or often no tools at all.
Will a bad main relay always cause a check engine light?
Not always. Often, a failing main relay will not store a trouble code because it fails to power the computer in the first place. The lack of a check engine light is actually a clue that can point towards the main relay being the problem.
Why does the problem happen more when it's hot?
The failure is caused by tiny cracks in the solder joints inside the relay. When the cabin or the relay itself gets hot, the metal expands, causing these cracks to separate and break the electrical connection. When it cools, the connection can be restored temporarily.
Helpful Videos

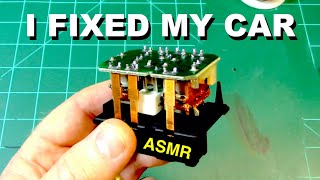

![HONDA ACCORD MAIN RELAY REPAIR [ASMR]](https://img.youtube.com/vi/QdhipB88rKE/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 39400-S84-003 39400-S82-A01 39400-S84-A01
Controls power to the PGM-FI (Programmed Fuel Injection) system, including the fuel pump and ECU.
