Audi A4 A/C System Valve Core and Cap Kit Guide (1996-2014)
Is your Audi's A/C not blowing cold like it used to? A tiny, inexpensive part could be the reason.
- A weak A/C is often caused by a slow refrigerant leak, and the service port valve cores are a very common culprit.
- Replacing the valve cores and caps is an inexpensive parts repair, but requires the system to be professionally evacuated and recharged.
- Quality aftermarket brands like Four Seasons are a cost-effective and reliable choice for this specific part.
- Always ensure the service port caps are present and tightly sealed, as they provide a critical backup seal.
Is Your A4's A/C Losing Its Cool?
If your 1996-2014 Audi A4's air conditioning isn't blowing as cold as it once did, you might be dreading an expensive repair like a new compressor or condenser. However, a very common and often overlooked cause is a slow leak from the A/C service ports. The tiny valve cores inside these ports, also known as Schrader valves, can wear out over time, allowing refrigerant to escape slowly. This is often the first place a smart mechanic will check for leaks.
Symptoms of a Failing A/C Valve Core
The signs of a leaking valve core are often subtle at first and get progressively worse.
- Gradual Loss of Cooling: The most common symptom is A/C performance that slowly degrades over weeks or months. It might feel cool, but not truly cold.
- Hissing from Service Ports: In a quiet environment, you might hear a faint hiss when you remove the plastic cap from the high or low-side A/C service port.
- Oily Residue: A/C refrigerant contains oil to lubricate the compressor. If a valve is leaking, this oil can collect around the service port, attracting dirt and grime. 🎬 Watch this guide on testing service port valves for leaks.
Don't Ignore the Caps
The plastic caps on the service ports are more than just dust covers. They are a critical secondary seal. Always make sure they are screwed on tightly. If you lose one, replace it immediately. A new kit will include new caps.
Choosing Your Aftermarket Replacement Kit
For a part like an A/C valve core and cap kit, you don't necessarily need to pay the premium for an OEM (Original Equipment Manufacturer) part from an Audi dealer. Quality aftermarket brands provide a cost-effective and reliable solution. The key is to ensure the kit is specified for your A4's exact year.
Brand Options:
- Four Seasons: A well-known aftermarket brand in the A/C world. They are generally considered a reliable and affordable choice for components like compressors and smaller parts. User reviews are often positive regarding fit and function.
- Global Parts (GPD): Another common aftermarket supplier. While some users have reported issues with larger components like compressors failing prematurely, smaller parts like valve kits are less complex.
For a simple, inexpensive part like this, either Four Seasons or Global Parts is a reasonable choice. The most important factor is getting a kit that is confirmed to fit your 1996-2014 Audi A4.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Kit (Four Seasons, Global Parts) | $8.39 - $28.37 |
| Shop Labor (Leak Test & Replacement) | $100 - $200 |
| A/C System Evacuate & Recharge | $150 - $281 |
Frequently Asked Questions (FAQ)
Can I replace the A/C valve cores myself?
DIY replacement is possible for experienced individuals, 🎬 See how to replace a leaking A/C Schrader valve. but it comes with challenges. Legally, you cannot vent the remaining refrigerant into the atmosphere. The system must be professionally evacuated first. Special tools are also required: a valve core removal tool and a set of A/C manifold gauges to recharge the system correctly afterward. For most owners, having a shop perform this service is the safest and most effective option.
Do I have to empty the system to replace the valves?
Yes. While some special tools claim to allow replacement on a pressurized system, they are tricky to use and often don't work on all vehicle-specific valve types, leading to a rapid loss of the entire refrigerant charge. 🎬 Learn how Schrader valves are replaced without losing refrigerant. The correct and professional method is to have an A/C machine recover the refrigerant before replacing the valves.
Were there any recalls for the A/C system on the 1996-2014 Audi A4?
Searches of the NHTSA database did not show any recalls specifically for the A/C valve cores or service ports for this year range. There were recalls and TSBs for other A/C components like evaporators and auxiliary heaters on some model years, but not for the valve cores themselves.
What's the difference between the high-side and low-side ports?
The A/C system has two sides. The low-pressure (low-side) port is where refrigerant is added, and it has a larger diameter fitting. The high-pressure (high-side) port has a smaller diameter fitting and is used for system diagnostics. Your kit should include valves and caps for both.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4N0816561

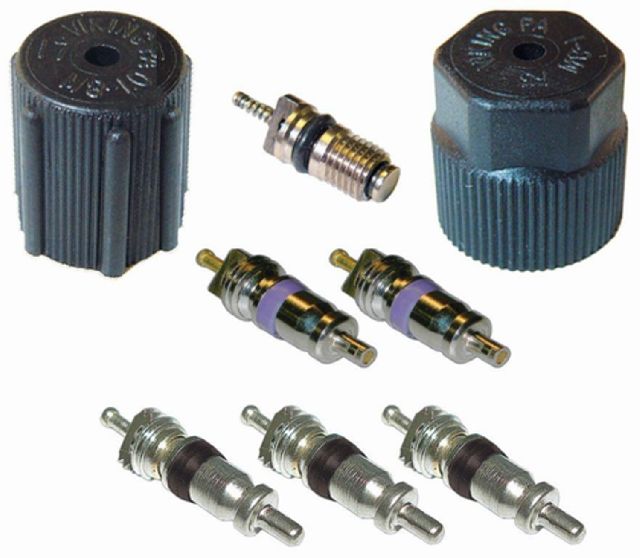

Kit typically includes two valve cores (Schrader valves) and two service port caps (high and low side). Valve cores are often color-coded or size-specific (e.g., M6, M8) for high and low-pressure ports.
