Understanding the 1996-2008 Audi A4 X-Contact Relay
If your radio, wipers, or climate control suddenly stop working, this small, inexpensive relay could be the culprit.
- The X-Contact Relay is also called the load reduction relay; its failure causes wipers, radio, and the HVAC fan to stop working at once.
- Symptoms are nearly identical to a failed ignition switch, which was a recalled part on early B5 A4s.
- Replacement is a simple DIY task, requiring only basic tools to access the relay panel under the driver's dash.
- Choosing a quality aftermarket brand like Bosch, CRP, or Standard Ignition provides OEM-level reliability for less money.
Symptoms of a Failing X-Contact Relay
When the X-Contact Relay begins to fail, it can cause confusing electrical problems. Because it controls several systems at once, you might think you have multiple unrelated issues. The most common sign is the simultaneous failure of several accessories.
- Wipers, Radio, and Climate Control Don't Work: The most classic symptom is when your wipers, radio, and HVAC fan all stop working at the same time. The control panels might still light up, but the functions themselves are dead.
- Intermittent Problems: Before it fails completely, the relay might work intermittently. Accessories may cut out while driving and then suddenly start working again. This can be caused by internal corrosion or a failing electromagnet inside the relay.
- Clicking Sounds Without Action: You might hear a click from the relay panel under the dash when you try to use an accessory, but the device doesn't turn on. This often indicates the relay is trying to activate but its internal contacts are too worn or burnt to make a proper connection.
- Burnt Smell or Scorch Marks: In severe cases, a failing relay can overheat. You might notice a burnt plastic smell or find scorch marks on the relay itself or the relay panel socket when you inspect it.
Choosing the Right Aftermarket X-Contact Relay
For a simple part like a relay, you don't always need to pay dealership prices for an OEM (Original Equipment Manufacturer) part. However, quality still matters. Aftermarket brands offer a range of quality and price points. Given the low cost of even the best aftermarket options, it's wise to avoid the absolute cheapest parts, which have a higher risk of premature failure.
Aftermarket Brand Quality Tiers
| Tier | Brands | Our Assessment |
|---|---|---|
| Good | CRP (Rein), Bosch | Often the original equipment supplier to Audi. Quality is on par with the OEM part you'd get from a dealership. Choosing a brand like Bosch or CRP is a reliable and safe bet for longevity. |
| Better | Standard Ignition (SMP) | A well-respected aftermarket manufacturer known for producing reliable electronic components. A solid choice that often provides excellent value and performance. |
| Budget | URO Parts | URO is a budget-friendly option. While some of their parts are perfectly fine, their relays have a mixed reputation in enthusiast communities for inconsistent quality and a higher potential for early failure. Given the low cost of higher-quality alternatives for this specific part, we recommend choosing a brand from the tiers above if possible. |
A Note on Ignition Switch Failure
The symptoms of a failing X-Contact Relay are nearly identical to those of a failing ignition switch. The ignition switch sends the signal that activates the relay. If you replace the relay and the problem persists, the ignition switch is the next most likely culprit. There was a recall for ignition switches on some early A4 models that caused similar electrical accessory failures.
🎬 See how to replace the ignition switch yourself.Frequently Asked Questions
Can I replace the Audi A4 X-Contact Relay myself?
Yes, this is a very simple DIY job for most owners. The relay is located in the main relay panel under the driver's side dashboard. You'll need to remove the lower dash panel (knee bolster) to access it, which is typically held by a few 8mm screws. Once accessed, the old relay simply pulls straight out, and the new one pushes into its place. No special tools are required beyond basic hand tools to remove the panel.
Where is the X-Contact Relay located on a 1996-2008 Audi A4?

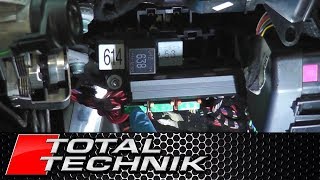

The relay is in the driver's side relay panel, located above the pedals and behind the lower dashboard trim piece. On many B5 and B6 models, it is in position #2 or is marked with a number like "213" or "370". 🎬 Watch: How to find the internal relay panel location. Always verify the location in your specific vehicle, as it can vary slightly by year and model options. The new relay should look identical to the one you are replacing.
Is an OEM relay better than aftermarket for my A4?
For a simple component like this, a high-quality aftermarket relay from a brand like Bosch, CRP, or Standard Ignition is just as good as an OEM part. These companies are often the original suppliers to Audi. An OEM-quality aftermarket part will perform reliably for a fraction of the dealership price. It is generally not worth the extra cost for an OEM-branded box in this case.
Are there any recalls or TSBs for the X-Contact Relay?
There are no specific recalls or Technical Service Bulletins (TSBs) for the X-Contact Relay itself. However, there were recalls (NHTSA 06V-403 and 00V-317) for the ignition switch on 1996-1997 models, which causes identical symptoms of accessory failure. Other TSBs exist for different relays in the car, like the ECM power supply relay, but not specifically the load reduction relay.

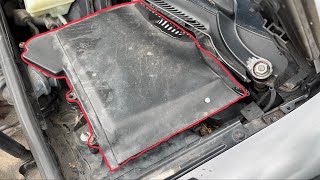

Helpful Videos
Technical Specifications
OEM Part Numbers: 4H0951253A 8D0951253A 443951253J 8Z0951253 7M0951253C
Typically a 12V, 4-pin, 40A or 70A 'Normally Open' relay. The number printed on top of the original relay (e.g., 100, 213, 370, 644) is a key identifier.
