Dodge Grand Caravan Alternator Guide: 1996-2000 Models
Solve your minivan's electrical problems by choosing the right replacement alternator.
- The alternator is controlled by the engine computer (PCM); ensure any replacement is compatible.
- Symptoms include dimming lights, a battery warning on the dash, and eventual engine stalling.
- Aftermarket brand quality is mixed; buying locally can simplify warranty claims if the part is faulty.
- Consider upgrading from the standard 90-amp to a 130-amp unit if your van has extra electronic features.
Is Your Grand Caravan's Alternator Failing?
When the alternator in your 1996-2000 Grand Caravan starts to go bad, it leaves a trail of clues. Because it powers all the electronics, the symptoms are usually obvious and can get progressively worse. Ignoring them can leave you stranded when the battery finally runs out of juice.
Common Symptoms:
- Dimming or Flickering Lights: Headlights and interior lights may flicker, pulse, or appear dimmer than usual, especially at idle.
- Battery Warning Light: A battery icon or an "ALT" or "GEN" light may illuminate on your dashboard. This is a direct signal from the vehicle that the charging system has a problem.
- Slow or Failing Accessories: Power windows might move slowly, the radio could cut out, and the dashboard gauges might act erratically or stop working just before the engine stalls.
- Whining or Grinding Noises: A high-pitched whine or a grinding sound coming from the engine bay can indicate that the bearings inside the alternator are failing.
- Dead Battery: If the alternator isn't recharging the battery, you'll find yourself needing to jump-start the vehicle frequently. Eventually, the engine will stall while driving once the battery's reserve power is depleted.
Choosing the Right Aftermarket Alternator
For a vehicle of this age, an aftermarket alternator is a practical and cost-effective choice. However, quality can vary between brands. The voltage regulator is controlled by your van's computer (PCM), so it's crucial that the alternator is fully compatible. Most aftermarket alternators are designed for this. The standard output for these vans was typically 90 amps, but higher-output 130-amp units were also available and are a good upgrade if you have extra accessories.
Aftermarket Brand Tiers
- High-Performance (Powermaster): Often marketed for higher-than-stock output, Powermaster is a potential option if you run many accessories. They are often made in the USA, but owner reviews are mixed, with some reporting excellent performance and others experiencing premature failures.
- Standard Replacement (Remy, BBB Industries, MPA): These brands are common in the aftermarket and are often what you'll find at major auto parts stores. Remy and BBB Industries are linked companies, and their quality can be inconsistent. You might get a unit that lasts for years, or you might get one that fails early. Buying from a local store can be advantageous for easier warranty exchanges.
- New Economy (WAI Global): WAI Global often produces brand-new units, which can be appealing over remanufactured ones. However, some users have reported issues with whining noises and units not producing their advertised amperage. Some WAI alternators may come with an individual test result sheet, which is a good sign of quality control.
Known Issues and Recalls
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not reveal any specific recalls for the alternator on the 1996-2000 Dodge Grand Caravan. Some owners have reported intermittent charging problems where the alternator tests good on a store's bench tester but fails under load in the vehicle. This can be caused by a failing diode within the alternator's rectifier.
🎬 Watch: A fast and simple way to test your alternator.| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $126 - $279 |
| Remanufactured Aftermarket | $75 - $160 |
| New OEM | $350 - $500+ |
| Shop Labor | $176 - $258 |
Frequently Asked Questions
Can I install the alternator myself?
Yes, this is a DIY-feasible job for someone with mechanical experience and a good set of tools. However, it can be challenging due to tight spaces. Access often requires removing the windshield wiper cowl assembly and sometimes even loosening the radiator fan shroud to create enough clearance to remove the old unit. Expect it to take 2-3 hours.

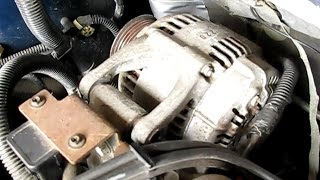

🎬 Watch: Step-by-step guide to replacing your Grand Caravan alternator.Do I need a 90-amp or 130-amp alternator?
A 90-amp alternator is the standard replacement and is sufficient for a stock vehicle. If your van has a towing package, rear entertainment system, or other added electronics, upgrading to a 130-amp unit is a good idea to better handle the higher electrical load.
Does the computer (PCM) need to be reset after replacement?
No, the PCM does not typically require a special reset procedure after an alternator replacement. It will automatically detect and control the new unit. It is always a good practice to disconnect the battery's negative terminal before starting the repair, which will reset the vehicle's adaptive memory.
What is a "diode ripple" failure?
An alternator produces AC power that is converted to DC by a set of diodes called a rectifier. If one of these diodes fails, the alternator's output can drop significantly (by up to two-thirds) and produce "dirty" power, known as excessive AC ripple. This can cause charging problems under load even if the alternator seems to pass a basic bench test.
Helpful Videos

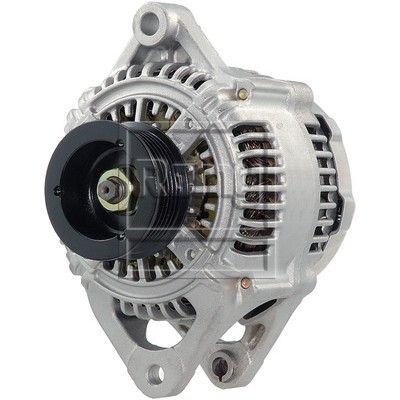

Technical Specifications
OEM Part Numbers: 4686099 4868549AB 4686098
System Type: Nippondenso Standard Amperage: 90 Amps Optional Amperage: 130 Amps Voltage Regulation: External, controlled by Powertrain Control Module (PCM)
