Mack CS200P Mid-Liner Front Disc Brake Caliper Replacement Guide (1995-2001)
Keep your 1995-2001 Mack CS200P Mid-Liner stopping safely with the right front brake calipers.
- The CS200P uses an air-over-hydraulic system with hydraulic disc brakes on the front axle.
- Due to the vehicle's age and French origins, aftermarket calipers are the most realistic option.
- Always replace calipers in pairs (left and right) to ensure safe, balanced braking.
- This is a complex job for a medium-duty truck; professional installation is recommended for safety.
Understanding Your Mid-Liner's Brakes
The 1995-2001 Mack CS200P Mid-Liner uses a specific type of braking system called air-over-hydraulic. This means it has hydraulic disc brakes at the front wheels and typically air brakes at the rear. The disc brake calipers on your front axle are the focus here. They are hydraulic, but the pressure comes from an air-powered system. This setup was common on medium-duty trucks of this era but can make finding parts and service challenging.
Symptoms of a Failing Front Brake Caliper
A bad caliper can be dangerous. It's important to recognize the warning signs. If you notice any of these issues, inspect your front brakes immediately.
- Truck Pulling to One Side: When you brake, a seized caliper on one side can cause the truck to pull towards the opposite side. If the caliper is stuck clamped, it will pull towards the damaged side.
- Spongy or Soft Brake Pedal: A caliper that is leaking hydraulic fluid can introduce air into the brake lines. This makes the pedal feel soft and reduces stopping power. Look for fluid leaks around the wheel.
- Uneven Brake Pad Wear: If the caliper pins are stuck or the piston doesn't retract, it can cause the brake pads to wear down unevenly or much faster on one wheel.
- Brake Dragging or Overheating: A stuck caliper piston can cause the brake pads to stay in contact with the rotor even when you're not braking. This creates constant friction, which you might notice as a burning smell, visible heat, or bluing of the brake rotor after a drive.
No Specific Recalls Found
Our research did not find any specific NHTSA safety recalls or Technical Service Bulletins (TSBs) for the front disc brake calipers on the 1995-2001 Mack CS200P Mid-Liner. However, due to the vehicle's age, always perform a thorough inspection of the entire brake system during any service.
Choosing the Right Aftermarket Caliper
Finding new OEM parts for this Renault-built Mack can be difficult and very expensive. Aftermarket calipers are the most practical and affordable choice. The brands available offer different levels of quality and price.
Brand Tiers for Your Mack

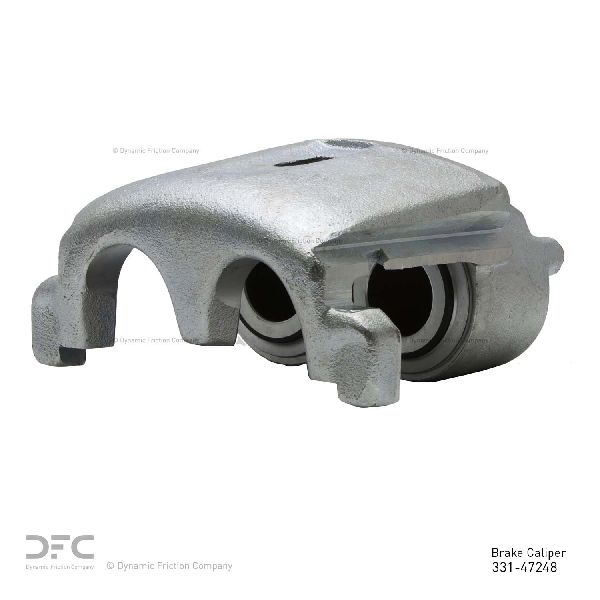

- Good - Economy Choice (Cardone, Dynamic Friction): These brands offer a cost-effective solution to get your truck back on the road. Cardone is a well-known remanufacturer; it's best to look for their new parts rather than remanufactured to avoid potential issues with rust protection. Dynamic Friction is seen as a legitimate, budget-friendly brand with average performance. These are a good fit for trucks with lighter-duty cycles.
- Better - Standard Choice (Centric): Centric is widely considered a reputable aftermarket brand that provides good quality and performance for daily use. Their parts are often viewed as a solid step-up from economy brands without a huge price increase. This is a reliable all-around choice for a work truck.
Pro Tip: Replace in Pairs
It is always recommended to replace brake calipers in pairs (both front left and front right at the same time). This ensures even braking performance and prevents the truck from pulling to one side. Also, flush the old brake fluid from the system to protect the new calipers.
Cost of Replacing Mack CS200P Brake Calipers
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Caliper (Single) | $70 - $218 |
| Shop Labor (Per Pair) | $450 - $1000 |
| Total (Parts & Labor, Per Pair) | $590 - $1436 |
Note: Costs are estimates. Shop labor rates for medium-duty trucks can range from $150-$250 per hour, and replacing a pair of calipers can take 3-4 hours. Your final cost will vary based on your location and chosen mechanic.
Frequently Asked Questions (FAQ)
Can I replace just one caliper?
You shouldn't. Calipers should always be replaced in pairs on the same axle to ensure balanced braking. An old caliper will not perform the same as a new one, which can cause dangerous pulling and instability when braking.
What makes the 'air-over-hydraulic' system different?
This system uses the truck's air compressor to operate a hydraulic master cylinder, which then sends fluid to your front disc brake calipers. While the caliper itself is a standard hydraulic part, bleeding the system can be more complex than on a passenger car. Ensure your mechanic is familiar with this type of system.
Is this a difficult DIY job?
For a medium-duty truck, this is an advanced DIY job. The components are heavy, and the air-over-hydraulic system requires specific knowledge for bleeding. If you are not experienced with truck brake systems, it is safer to have a professional mechanic perform the replacement.
Do I need new brake pads and rotors too?
New calipers should always be installed with new brake pads and new or resurfaced rotors. A failing caliper often damages the pads and rotor on that wheel. Installing a new caliper with old pads or a damaged rotor will cause poor performance and premature failure.
Technical Specifications
Brake System Type: Air-Over-Hydraulic Front Axle Brakes: Hydraulic Disc Brakes
