A Guide to the Engine Cooling Fan Module for the 1994-2008 Volkswagen Golf
Overheating in traffic or have fans that won't quit? Your Golf's cooling fan module might be the culprit.
- A bad fan module is a common problem that can cause overheating or a dead battery.
- Symptoms often include fans that won't turn on, fans that won't turn off, or an A/C system that only works while driving.
- Replacement is a manageable DIY job, located under the battery tray on most models.
- Always match the OEM part number (like 1J0919506K) from your old unit to ensure compatibility.
Is Your Golf's Cooling Fan Module Failing?
A faulty engine cooling fan module is a common issue on the Mk4 and Mk5 generation Volkswagen Golf. Due to its location, often under the battery tray on the driver's side frame rail, it's exposed to moisture and road debris, which can lead to corrosion and failure. When this part fails, it can leave you stranded with an overheating engine. Recognizing the symptoms early can save you from more expensive repairs.
Key Failure Symptoms:
- Engine Overheating at Idle: The most common sign is the engine temperature rising above normal when you're in stop-and-go traffic or parked with the engine running. This happens because the module isn't telling the fans to turn on to pull air through the radiator.
- Cooling Fans Run Constantly: The opposite can also happen. A bad module might get stuck in the "on" position, causing the fans to run continuously, even after the car is turned off. This can drain your battery. Note that it is normal for fans to run for a short period after shutdown to cool the engine, but they should not run indefinitely.
- A/C Blows Warm Air: The A/C system relies on the cooling fans to remove heat from the condenser. If the fans aren't running, the A/C can't get cold, especially when the car isn't moving. 🎬 Watch how a faulty module affects both fans and A/C.
- Fans Don't Turn On at All: Even when the engine is hot or the A/C is on, the fans may not activate at all.
Known Issues and Recalls
While there are no widespread recalls specifically for the 1994-2008 Golf's fan module, these components are a known failure point. Forum discussions among owners frequently point to corrosion on the module's connectors or internal circuit board failure as the primary cause. In some cases, a Technical Service Bulletin (TSB) was issued for other VW models regarding fans running continuously at high ambient temperatures, which required a modified relay. Always check the module and its wiring for green or white corrosion, as this is a clear sign of a problem.
Choosing the Right Aftermarket Fan Module
When replacing the fan module, you don't have to buy an expensive OEM part from the dealership. Aftermarket brands offer quality replacements at a much lower cost. However, quality can vary, so it's important to choose a reputable brand.
Brand Quality Tiers
- Premium Aftermarket (Beck Arnley, Gates): Brands like Beck Arnley focus on matching OE form, fit, and function, often sourcing parts from OE suppliers. Gates is a well-respected name in cooling systems, engineering their modules to meet OE performance standards and often upgrading components to address common failure points. These are excellent choices for reliability.
- Standard Aftermarket (Dorman, Standard Ignition): Dorman is a widely available brand that provides direct-fit replacements that are a reliable alternative to the original part. Standard Ignition (SMP) is another large, established manufacturer of quality replacement parts. These brands offer a good balance of price and quality for a daily driver.
- Value-Oriented (Skyward): Value brands offer the most budget-friendly option. While they can get the job done, long-term durability might not match that of premium or standard brands. They are a viable choice if the budget is the primary concern.
Pro Tip: When replacing the module, it's a good idea to also clean the ground wires located under the battery tray. Poor grounds can cause a variety of electrical issues, including problems with the new fan module.
Engine Cooling Fan Module Cost for 1994-2008 VW Golf
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $52.42 - $289.11 |
| New OEM | $250 - $450+ |
| Used OEM | $30 - $100 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions
Can I replace the cooling fan module myself?
Yes, this is a DIY-friendly job for someone with basic tools. It typically involves removing the battery and battery tray to access the module, which is held on by two 10mm bolts. The most difficult part is often unplugging the old, potentially corroded electrical connectors.

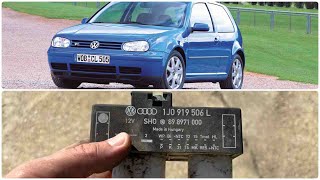

🎬 See a step-by-step guide to replacing the fan control module.Where is the fan module located on my Golf?
On most Mk4 (1999-2006) and Mk5 (2006-2008) Golf models, the fan control module is located on the driver's side frame rail, underneath the battery and battery tray.
🎬 Video guide showing the exact location of the fan module.Do I need to match the part number exactly?
Yes. Volkswagen used several different modules over the years. It is critical to match the part number from your old module (e.g., 1J0919506K, 1J0919506M) to ensure the new one functions correctly. Using the wrong module can cause fans to work improperly or not at all.
What causes the fan module to fail?
The primary cause of failure is its location, which exposes it to water, salt, and dirt from the road. This leads to corrosion of the internal circuit board and the external electrical connectors. Internal components like relays can also simply wear out over time.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1J0919506K 1J0919506M 1J0919506L 1J0919506G 1J0919506H 1J0919506Q
Controls two radiator cooling fans (one large, one small on many models). Typically features a 4-pin power connector and a 14-pin signal connector. The module interprets signals from the ECU and A/C system to provide variable fan speed.
