Engine Crankshaft Position Sensor: A Guide for 1994-2003 Dodge Ram 2500
Solving common no-start, stalling, and rough running issues on your 2nd Generation Dodge Ram 2500.
- A no-start or sudden stalling condition is the most common sign of failure.
- For Cummins diesel engines, using a genuine OEM (Mopar/Cummins) sensor is highly recommended to prevent premature failure.
- The location is different for gas and diesel engines; gas engines are on the passenger side by the transmission, while diesels are on the driver's side.
- A failing sensor may not always trigger a check engine light, but the tachometer dropping to zero is a key clue.
Is Your Ram Stalling or Refusing to Start? It Could Be the Crank Sensor.
A failing crankshaft position sensor is a very common problem on the 1994-2003 Dodge Ram 2500, affecting both gasoline and Cummins diesel models. Symptoms often appear without warning and can leave you stranded. The most telling sign is when the engine cranks over but won't start. You might also notice the tachometer needle staying at zero while cranking or driving, which is a strong indicator the sensor has failed.
🎬 Watch a breakdown of common bad crank sensor symptoms.Choosing the Right Aftermarket Sensor: A Big Deal for Dodge Rams
When it comes to critical sensors on these trucks, especially the Cummins models, not all aftermarket parts are created equal. Many owners report that cheap, no-name aftermarket sensors fail quickly, sometimes within days or weeks, leading to the same problem all over again. While an OEM Mopar or Cummins sensor is often recommended for maximum reliability, some premium aftermarket brands offer a good balance of quality and value.
Aftermarket Brand Tiers
| Tier | Brands | Assessment |
|---|---|---|
| Premium Aftermarket / OEM Equivalent | Mopar, Cummins, Delphi, Hitachi, NGK/NTK | These brands are often original equipment suppliers or have a reputation for high quality and reliability that rivals OEM. For Cummins engines, a genuine Cummins part is the safest bet. Forum users often recommend NTK (made by NGK) and Delphi as reliable alternatives. |
| Reputable Aftermarket | Standard Ignition (SMP), Walker Products, Holstein | These brands are well-known in the aftermarket and generally offer better quality than budget options. They can be a good choice if a premium or OEM part isn't available or is outside the budget. |
| Budget Aftermarket | Dorman, Skyward, True Tech, and other store brands | While attractively priced, these brands have a mixed reputation for this specific part. Owners frequently report premature failures with budget sensors on Dodge trucks. They might work as a temporary fix, but long-term reliability can be a gamble. |
A Word of Caution for Cummins Owners
The 5.9L Cummins engine is notoriously picky about its crankshaft position sensor. Many experienced owners and mechanics strongly advise using only a genuine Cummins or Mopar sensor to avoid repeat failures. While it may cost more upfront, it can save you the headache and cost of replacing the sensor multiple times.
Frequently Asked Questions
Where is the crankshaft position sensor located?
The location differs by engine. For gasoline V8 and V10 engines, the sensor is located on the passenger's side of the engine block, near the rear where the engine meets the transmission. For Cummins diesel engines, the sensor is typically on the driver's side of the engine block, sometimes behind the starter. 🎬 See the exact location and replacement steps for Cummins engines. Access can be tight from either the top or bottom of the vehicle.
Will a bad crank sensor always cause a Check Engine Light?
Not always. While a complete failure often triggers a code like P0336, an intermittent failure might not. The engine may stall or fail to start without any warning light, making diagnosis tricky. A tachometer that drops to zero during cranking is a classic symptom even without a light.
Are the sensors for gas and diesel engines the same?
No, they are different parts. The sensors for the 5.9L Magnum V8, 8.0L Magnum V10, and the 5.9L Cummins diesel all have unique part numbers and are not interchangeable. Be sure to order the specific sensor for your truck's engine.

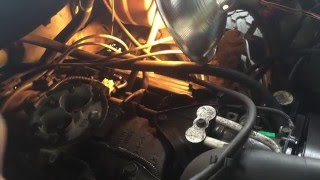

🎬 Follow this tutorial for replacing the sensor on gas engines.Do I need to gap the new sensor?
Generally, these sensors are not adjustable and do not require a specific air gap procedure. They are designed to be installed directly into the mounting location. The correct positioning is set by the sensor's body and the mounting bracket.
Are there any recalls for this issue?
Searches on the NHTSA database show recalls for crankshaft position sensor issues on some newer Ram trucks (2014 and up) related to the tone wheel, but not specifically for the 1994-2003 generation. Any failure on these older trucks is typically due to age and wear of the sensor itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56027870 68569185AA 4921601 3923129

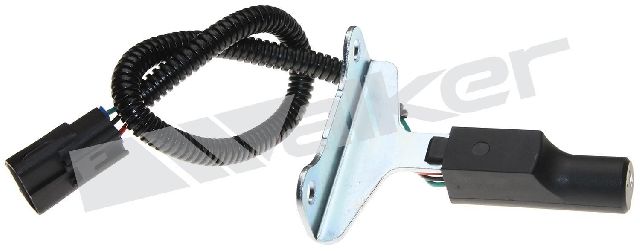

This is a Hall effect sensor that reads the rotational position of the crankshaft via teeth on the flywheel (gas) or a tone ring (diesel). It typically uses a 3-pin connector for power, ground, and signal.
