GMC B7 Engine Oil Pressure Switch: A Guide for 1993-2002 Models
Seeing strange readings on your oil pressure gauge? Here’s what you need to know before replacing the switch.
- A bad sensor usually causes faulty gauge readings (zero, max, or flickering), but always treat a low pressure warning as a real emergency first.
- The sensor is very difficult to access, located at the back of the engine. The high labor cost makes using a quality replacement part from a brand like Standard Ignition or Rostra a smart choice.
- A small, inexpensive filter screen is located under the sensor and is a common cause of false readings. It should be replaced at the same time as the sensor.
- You must verify which engine your B7 has (Gas V8, 6.5L Diesel, etc.) to ensure you order the correct part.
Symptoms of a Failing Oil Pressure Switch
When the oil pressure switch on your GMC B7 starts to fail, it can cause some alarming signs on your dashboard. Because these are commercial vehicles, correctly diagnosing the problem quickly is important. The most common failures are electrical, leading to incorrect information being sent to your gauge.
- Gauge Reads Zero or is Maxed Out: The most common symptom is the oil pressure gauge suddenly dropping to zero, even when the engine sounds perfectly fine. Less often, the switch can fail in a way that sends the gauge needle to its maximum reading.
- Erratic Gauge Behavior: You might see the oil pressure needle flicker, or bounce randomly between high and low readings. This often happens as the sensor's internal parts wear out.
- Oil Warning Light On: A flickering or constantly lit oil pressure warning light, especially if the gauge reads zero, points directly to a problem with the switch or the circuit.
- Oil Leak: The switch itself can fail physically, causing an oil leak. You may find oil on the sensor or dripping from the back of the engine area.
Warning: Never Ignore an Oil Pressure Warning
Never assume a low oil pressure reading is just a bad sensor. A faulty sensor and a real, engine-damaging loss of oil pressure look identical from the driver's seat. If you see a low pressure warning, safely pull over and shut off the engine immediately. Check the oil level. Driving with low oil pressure can destroy the engine in minutes.
Choosing the Right Aftermarket Oil Pressure Switch
For a vehicle like the GMC B7, using a quality replacement part is important to ensure reliability. The replacement job is difficult due to the sensor's location, so you don't want to do it twice. Here’s a breakdown of the available brand tiers.
Premium & Mid-Grade Brands: Standard Ignition, Rostra Powertrain
Brands like Standard Ignition (also known as Standard Motor Products or SMP) and Rostra Powertrain are well-known in the industry for producing quality electronic parts. Standard is a long-established company that manufactures many of its own components and is often considered a reliable choice. Rostra is also a direct manufacturer of both OE and aftermarket parts, specializing in powertrain electronics like sensors and switches. Choosing a part from one of these brands is a good investment to ensure a long service life, which is important given the labor involved in the replacement.

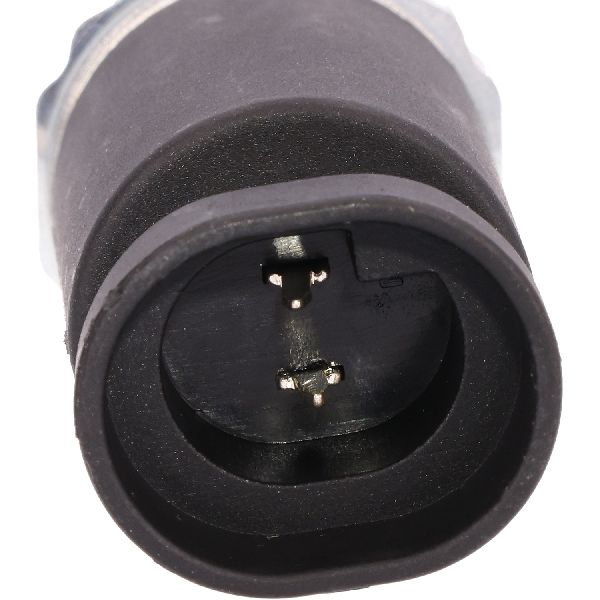

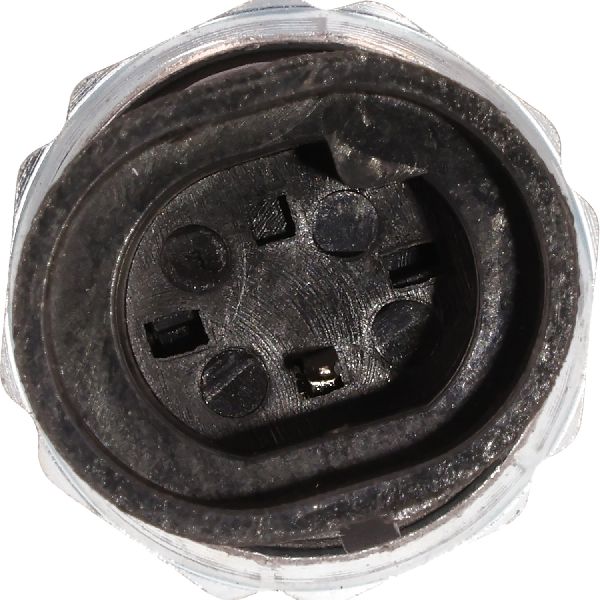

Economy Brands: Global Parts
Brands in the economy tier, such as Global Parts, offer a more budget-friendly option. Publicly available information for this specific brand is limited and often mixed with other companies of the same name, making it difficult to assess quality for this application. While these parts meet basic fit and function requirements, they may not have the same long-term durability or rigorous quality control as premium brands. An economy part may be suitable for a temporary fix, but for a commercial vehicle where downtime is costly, a more proven brand is often the better choice.
Pro Tip: Replace the Filter Screen
Many GM engines used in the B7 chassis have a small, thimble-shaped filter screen in the engine block, right below the oil pressure switch. This screen can get clogged with sludge over time, causing false low-pressure readings. It is highly recommended to remove the old screen and install a new one whenever you replace the switch. A lag bolt can sometimes be threaded into the old screen to help pull it out.
Estimated Replacement Costs
The cost to replace the oil pressure switch can vary based on your engine and local labor rates. The part itself is not very expensive, but the labor can be significant due to its difficult-to-reach location.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $22.00 - $78.68 |
| Shop Labor | $150 - $300 |
| Total Estimated Cost | $172.00 - $378.68 |
Frequently Asked Questions
Why is the replacement so difficult?
On most GM engines from this era, the oil pressure switch is located at the very back of the engine block, behind the intake manifold and close to the firewall. Access is extremely limited, and a special deep socket is often required to remove and install the sensor. While it can be done without removing the intake manifold, it requires reaching into a tight space.
Can a bad oil pressure switch cause a Check Engine Light?
Yes. If the sensor's readings are outside of the expected range, the Engine Control Module (ECM) can log a fault code and turn on the Check Engine Light. Common codes associated with a faulty oil pressure sensor include P0521, P0522, and P0523.
What engine is in my GMC B7? Does it matter for this part?
The 1993-2002 GMC B7 was a bus chassis that could be equipped with several different engines, including gasoline V8s (like the 5.7L, 7.4L, or 8.1L) and diesel engines (like the 6.5L or a Caterpillar diesel). The exact oil pressure switch you need is specific to your engine. Always verify the part fits your specific engine before ordering.
Is this part a 'switch', 'sensor', or 'sending unit'?
These terms are often used interchangeably for this part. A 'switch' might only operate a warning light, while a 'sending unit' or 'sensor' provides a variable signal for a gauge. Since the part on your B7 likely operates both a gauge and a light, any of these terms could be used. The important thing is to match the part to your vehicle's engine.
Technical Specifications
Location: Rear of engine, behind intake manifold. Common Tools: Ratchet, extensions, special oil pressure switch socket (typically 1-1/16 inch). Part function varies by engine type (gas/diesel).
